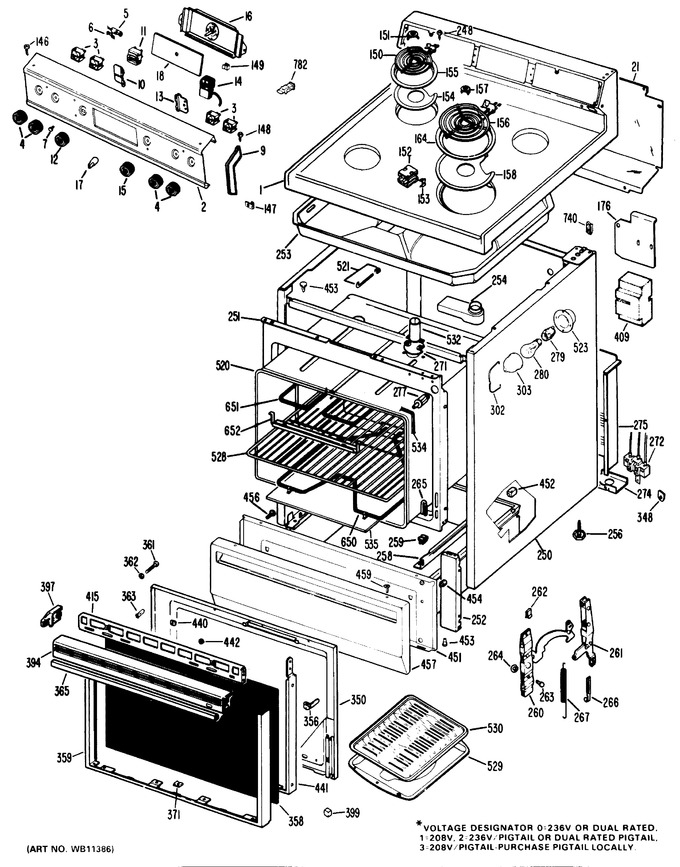

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X1478 | Cooktop Ad |
|
- | |||||
| 1 | WB62X1474 | Cooktop Wh |
|
- | |||||
| 1 | WB62X1477 | Cooktop Ha |
|
- | |||||
| 2 | WB7X7051 | Trim Control |
|
- | |||||
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 4 | WB3X5752 | Knob Surface Unit |
|
- | |||||
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 6 | WB2X1185 | Clip |
|
- | |||||
| 7 | WB25X65 | Jewel |
|
- | |||||
| 9 | WB7X6829 | End Cap Lh |
|
- | |||||
| 9 | WB7X6828 | End Cap Rh |
|
- | |||||
| 10 | WB2X7305 | Bracket Lh |
|
- | |||||
| 11 | WB22X5134 | Switch, Oven (Replaces: WB22X5022) |
|
- | |||||
| 12 | WB3X5753 | Knob Oven Switch |
|
- | |||||
| 13 | WB2X7306 | Bracket Rh |
|
- | |||||
| 14 | WB2X1394 | Sleeve |
|
- | |||||
| 14 | WB2X6494 | Barrier |
|
- | |||||
| 14 | WB21X5208 | Thermostat |
|
- | |||||
| 15 | WB3X5751 | Knob Thermostat |
|
- | |||||
| 16 | WB19X154 | Timer |
|
- | |||||
| 17 | WB3X5699 | "timer-knob" |
|
- | |||||
| 18 | WB36X5575 | Crystal Timer |
|
- | |||||
| 21 | WB49X390 | Cover Back |
|
- | |||||
| 146 | WB1X5832 | Screw Shoulder |
|
- | |||||
| 147 | WB1X578 | Speednut Cap |
|
- | |||||
| 148 | WS01A01408 | Screw (Replaces: WB1X5716) |
|
$ 4.20 | |||||
| 149 | WB2X7702 | Clip Crystal |
|
- | |||||
| 150 | WB30X359 | Surface Unit, 6" |
|
- | |||||
| 151 | WB32X52 | Center Trim 6" Unit |
|
- | |||||
| 152 | WB2X1351 | Term Block Double Coil |
|
- | |||||
| 152 | WB2X2398 | Term Block Single Coil |
|
- | |||||
| 153 | WB2X574 | Clip Insulator |
|
- | |||||
| 154 | WB32X36 | Unit Pan 6" |
|
- | |||||
| 155 | WB31X5013 | Trim Ring 6" |
|
- | |||||
| 156 | WB30X348 | Surface Unit, 8" |
|
- | |||||
| 157 | WB32X51 | Center Trim 8" Unit |
|
- | |||||
| 158 | WB32X5013 | Unit Pan 8" |
|
- | |||||
| 164 | WB31X5014 | Trim Ring 8" |
|
Immediately | $ 13.55 | ||||
| 248 | WB1X500 | Terminal Screw |
|
- | |||||
| 250 | NOT AVAIL | Body |
|
- | |||||
| 251 | WB56X6050 | Frame Front |
|
- | |||||
| 252 | WB49X5401 | Filler Panel Ad |
|
- | |||||
| 252 | WB49X5400 | Filler Panel Ha |
|
- | |||||
| 252 | WB49X5399 | Filler Panel Wh |
|
- | |||||
| 253 | WB49X5384 | Box Cooktop |
|
- | |||||
| 254 | WB38X50 | Body Vent |
|
- | |||||
| 256 | WB2X7701 | Leveling Leg |
|
- | |||||
| 258 | WB39X51 | Drawer Guide Rh & Lh |
|
- | |||||
| 259 | WB2X831 | Slide Guide |
|
- | |||||
| 263 | WG02A00596 | Pin Hinge (Replaces: WB2X6195) |
|
$ 4.20 | |||||
| 264 | WB2X1082 | Pin Hinge Retainer |
|
- | |||||
| 265 | WB2X6342 | Guide Hinge Lever |
|
- | |||||
| 266 | WB2X2506 | Hook Door Spring |
|
- | |||||
| 267 | WB9X5100 | Spring Door |
|
- | |||||
| 271 | WB2X1626 | Baffle |
|
- | |||||
| 272 | WB17X5095 | Block Terminal Power |
|
- | |||||
| 274 | WB2X1908 | Knockout Plate |
|
- | |||||
| 275 | WB59X173 | Guard Terminal |
|
- | |||||
| 277 | WB24X105 | Switch, Oven Light |
|
- | |||||
| 279 | WB8X5095 | Receptacle |
|
- | |||||
| 280 | WX12X1510 | Lamp 40w Appliance |
|
- | |||||
| 302 | WB2X7694 | Bail |
|
- | |||||
| 303 | WG02F04576 | Glass Oven Lamp (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 348 | WB2X646 | Plate Ground |
|
- | |||||
| 350 | WB2X3140 | Insulation Door |
|
- | |||||
| 350 | WB55X5291 | Door Liner |
|
- | |||||
| 356 | WB2X6574 | Clip Trim (4) |
|
- | |||||
| 358 | WB36X5557 | Glass Black |
|
- | |||||
| 359 | WB7X6886 | Trim Door |
|
- | |||||
| 361 | WB1X5731 | Screw |
|
- | |||||
| 362 | WB1X119 | Washer Screw |
|
- | |||||
| 363 | WB2X3030 | Spacer Door |
|
- | |||||
| 365 | WB15X5174 | Handle Door |
|
- | |||||
| 371 | WB1X5732 | Speednut |
|
- | |||||
| 397 | WB7X7016 | End Cap Rh-handle |
|
- | |||||
| 397 | WZ04X0384 | Screw Mtg End Cap |
|
- | |||||
| 397 | WB7X7015 | End Cap Lh-handle |
|
- | |||||
| 399 | WB2X3285 | Pad Socket |
|
- | |||||
| 409 | WB2X7971 | Counterweight |
|
- | |||||
| 415 | WB2X7608 | Brace Top |
|
- | |||||
| 440 | WB1X5736 | Speednut |
|
- | |||||
| 440 | WB1X585 | Speednut |
|
- | |||||
| 441 | WB2X7610 | Brace Side Rh |
|
- | |||||
| 441 | WB2X7609 | Brace Side Lh |
|
- | |||||
| 442 | WB1X5743 | Speednut |
|
- | |||||
| 451 | WB58X5011 | Drawer Asm |
|
- | |||||
| 452 | WB2X840 | Slide Top |
|
- | |||||
| 453 | WB2X3394 | Plug Button |
|
- | |||||
| 454 | WB2X584 | Bumper |
|
- | |||||
| 456 | WZ04X0345 | Screw |
|
- | |||||
| 457 | WB56X6090 | Drawer Panel Wh |
|
- | |||||
| 457 | WB56X6092 | Drawer Panel Ad |
|
- | |||||
| 457 | WB56X6091 | Drawer Panel Ha |
|
- | |||||
| 459 | WB1X537 | Screw |
|
- | |||||
| 459 | WB1X5782 | Screw |
|
- | |||||
| 461 | WB1X593 | Screw |
|
- | |||||
| 520 | WB53X5138 | Oven Liner |
|
- | |||||
| 520 | WB2X3141 | Insulation |
|
- | |||||
| 520 | WB2X3471 | Clip Capillary Tube Oven |
|
- | |||||
| 521 | WB9X88 | Hook Package |
|
- | |||||
| 523 | WB2X7693 | Housing Receptacle |
|
- | |||||
| 528 | WB48X5097 | Rack Oven |
|
- | |||||
| 529 | WB49X5380 | Broil Pan |
|
- | |||||
| 530 | 4396923 | Broiler Pan Rack (Replaces: WB48X5093) |
|
Immediately | $ 60.71 | ||||
| 532 | WB38X72 | Tube Vent |
|
- | |||||
| 534 | WB2X1522 | Gasket Silicone |
|
- | |||||
| 535 | WB2X7749 | Aluminum Foil |
|
- | |||||
| 650 | UB592 | Bake Unit 208/240v (Replaces: WB44X5082) |
|
Immediately | $ 49.95 | ||||
| 651 | UT316 | Broil Unit 208/240v (Replaces: WB44X185) |
|
Immediately | $ 49.95 | ||||
| 652 | WB2X1452 | Support Broil |
|
- | |||||
| 740 | WB2X7226 | Clip Wire |
|
- | |||||
| 782 | WB17X5060 | Terminal Blk Asm (2 Pin) |
|
- | |||||
| 32767 | WB2X7876 | Brkt Anti-tip |
|
- | |||||
| 32767 | 31-0824 | Install Instr (anti-tip) |
|
- | |||||
| 32767 | 31-0395 | Pm Manual Mini |
|
- |
