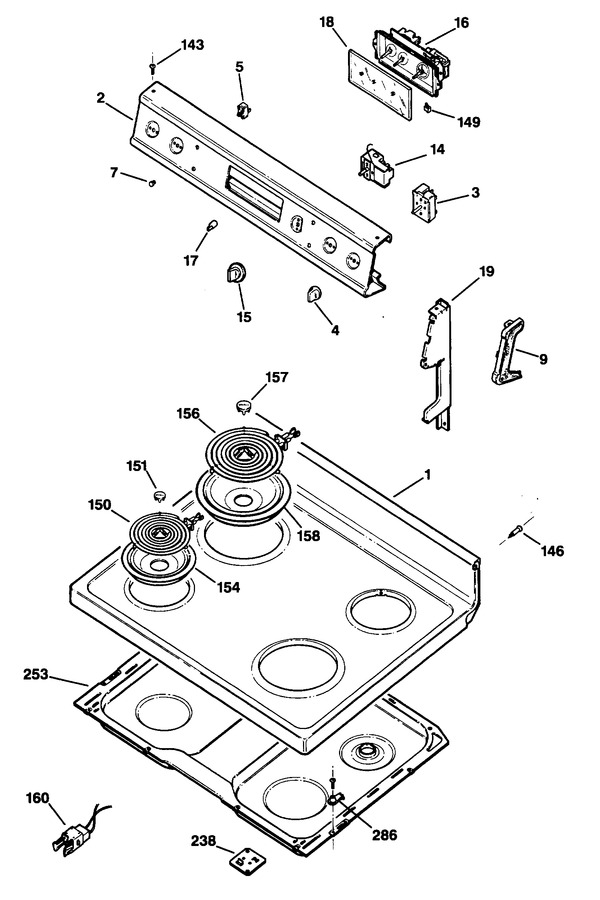

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB62X5387		Cooktop Ad		Appelez-nous	-
1	WB62X5388		Cooktop Wh		Appelez-nous	-
2	WB7X7147		Trim Control		Appelez-nous	-
3	5500-200		Switch, Inf Surface Unit   (Replaces: WB21X5243)			Immediately	$ 60.94
4	WB3X5792		Knob Surface Unit		Appelez-nous	-
5	WB2X1608		Neon Lamp 118v				$ 31.65
6	WB2X1185		Clip		Appelez-nous	-
7	WB25X65		Jewel		Appelez-nous	-
9	WB7X7136		End Cap Right		Appelez-nous	-
9	WB7X7137		End Cap Left		Appelez-nous	-
14	WB2X6274		Sleeve Cap Tube		Appelez-nous	-
14	WB21X5287		Thermostat		Appelez-nous	-
15	WB3X5793		Knob Thermostat		Appelez-nous	-
16	WB19X5305		Timer		Appelez-nous	-
17	WB3X5699		"timer-knob"		Appelez-nous	-
18	WB36X5575		Crystal Timer		Appelez-nous	-
19	WB7X7125		Plate End R		Appelez-nous	-
19	WB7X7126		Plate End L		Appelez-nous	-
143	WB1X5860		Screw		Appelez-nous	-
146	WB1X5832		Screw Shoulder		Appelez-nous	-
149	WB2X7702		Clip Crystal		Appelez-nous	-
150	WG02F05372		6" Surf Elem   (Replaces: WB30M1)			Immediately	$ 68.23
151	WB32X52		Center Trim 6" Unit		Appelez-nous	-
152	WB2X1351		Term Block Double Coil		Appelez-nous	-
154	WB32X5075		Burner Bowl 6"		Appelez-nous	-
156	WB30M2		8" Surf Elem		Appelez-nous	-
157	WB32X51		Center Trim 8" Unit		Appelez-nous	-
158	WB32X5076		Burner Bowl 8"				$ 10.45
160	WB17X5113		Receptacle Asm		Appelez-nous	-
238	WB2X8122		Bracket Tie Down		Appelez-nous	-
253	WB49X5499		Box Cooktop		Appelez-nous	-
286	WB2X8107		Strike Cooktop		Appelez-nous	-
452	WB2X840		Slide Top		Appelez-nous	-
530	4396923		Broiler Pan Rack   (Replaces: WB48X5093)			Immediately	$ 60.71
535	WB2X7749		Aluminum Foil		Appelez-nous	-
1024	WX12X1510		Bulb-oven Light		Appelez-nous	-
32767	WB2X7876		Bracket Asm Anti-tip		Appelez-nous	-
32767	31-0824		Install Instr (anti-tip)		Appelez-nous	-
32767	39-4700		Manual User		Appelez-nous	-
