SELECT A DIAGRAM
1 - Component Group
2 - Component Group
3 - Component Group
New Model Search:

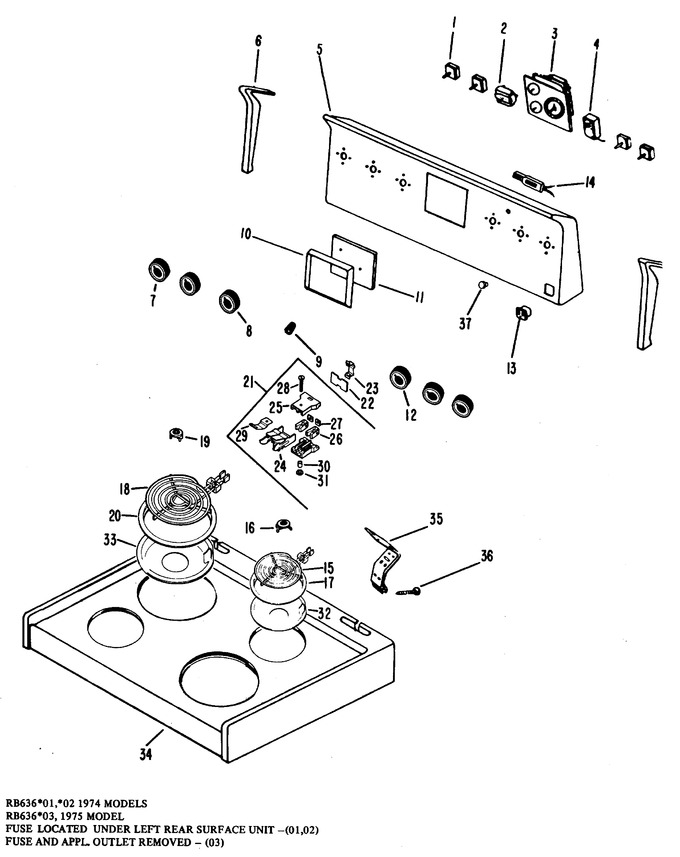

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB21X5150 | Switch, Inf Surface Unit |
|
- | |||||
| 2 | WB22X5134 | Switch, Oven (Replaces: WB22X5022) |
|
- | |||||
| 3 | WB2X5816 | Ground Strap |
|
- | |||||
| 3 | WB1X5221 | Nut |
|
- | |||||
| 3 | WB19X5206 | Timer |
|
- | |||||
| 4 | WB2X5889 | Sleeving |
|
- | |||||
| 4 | WB21X177 | Thermostat, Oven L.o. |
|
- | |||||
| 4 | WB2X5545 | Bracket Thermostat |
|
- | |||||
| 5 | WB63X5133 | Back Cover Panel |
|
- | |||||
| 5 | WB61X5724 | Control Panel - Wh (01,0 |
|
- | |||||
| 5 | WB61X5725 | Control Panel - Dc (01,0 |
|
- | |||||
| 5 | WB61X5726 | Control Panel - Av (01,0 |
|
- | |||||
| 5 | WB61X5727 | Control Panel - Ht (01,0 |
|
- | |||||
| 6 | WB7X5368 | End Casting-lh |
|
- | |||||
| 6 | WB7X5506 | End Casting-rh |
|
- | |||||
| 7 | WB3X5479 | Knob Surface Unit |
|
- | |||||
| 8 | WB3X5503 | Knob - Switch Oven |
|
- | |||||
| 9 | WB3X218 | Knob, Timer |
|
- | |||||
| 10 | WB1X5220 | Nut |
|
- | |||||
| 10 | WB7X5035 | Timer Bezel |
|
- | |||||
| 10 | WB2X5556 | Gasket-sponge Rubber |
|
- | |||||
| 11 | WB36X5056 | Timer Glass |
|
- | |||||
| 12 | WB3X5481 | Knob Thermostat |
|
- | |||||
| 13 | WB8X5040 | Appliance Receptacle-bro |
|
- | |||||
| 14 | WB2X1185 | Clip Lamp |
|
- | |||||
| 14 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 15 | WB31X5355 | Screw Unit Terminals |
|
- | |||||
| 15 | WB30X218 | Surface Unit, 6" |
|
- | |||||
| 16 | WB32X52 | Center Trim 6" Unit |
|
- | |||||
| 17 | WB31X56 | Trim Ring 6" |
|
- | |||||
| 18 | PS240M | Surface Unit, 8" (Replaces: WB30X219) |
|
Immediately | $ 44.95 | ||||
| 18 | WB1X5355 | Screw Recept Terminal |
|
- | |||||
| 19 | WB32X51 | Center Trim 8" Unit |
|
- | |||||
| 20 | WB31X55 | Trim Ring 8" |
|
- | |||||
| 21 | WB1X5147 | Mtg. Screw - Receptacle |
|
- | |||||
| 21 | WB17X5051 | Receptacle Asm |
|
- | |||||
| 22 | WB2X6171 | Insulator |
|
- | |||||
| 23 | WB2X6172 | Clip Insulator |
|
- | |||||
| 24 | WB2X6168 | Brkt. - Recept. |
|
- | |||||
| 25 | WB17X5052 | Wb17x5051 |
|
- | |||||
| 26 | WB2X6169 | Spring Contact |
|
- | |||||
| 27 | WB1X5352 | Nut - Square |
|
- | |||||
| 27 | WB1X5353 | Screw |
|
- | |||||
| 29 | WB9X5072 | Spring |
|
- | |||||
| 30 | WB2X6170 | Bushing |
|
- | |||||
| 31 | WB1X5354 | Nut |
|
- | |||||
| 32 | WB32X5026 | Wb32x10012 |
|
- | |||||
| 33 | WB32X5027 | Wb32x10013 |
|
- | |||||
| 34 | WB62X5090 | Cooktop - Av |
|
- | |||||
| 34 | WB1X5147 | Mtg. Screw - Receptacle |
|
- | |||||
| 34 | WB62X5110 | Cooktop - Ht |
|
- | |||||
| 34 | WB62X5083 | Cooktop - Dc |
|
- | |||||
| 34 | WB2X5544 | Angle Nut For Hold-down |
|
- | |||||
| 34 | WB62X5082 | Cooktop - Wh |
|
- | |||||
| 35 | WB14X5021 | Hinge Leaf - Upper |
|
- | |||||
| 36 | WB1X5180 | Hold Down Screw No. 10x1 |
|
- | |||||
| 37 | WB25X65 | Jewel |
|
- |
