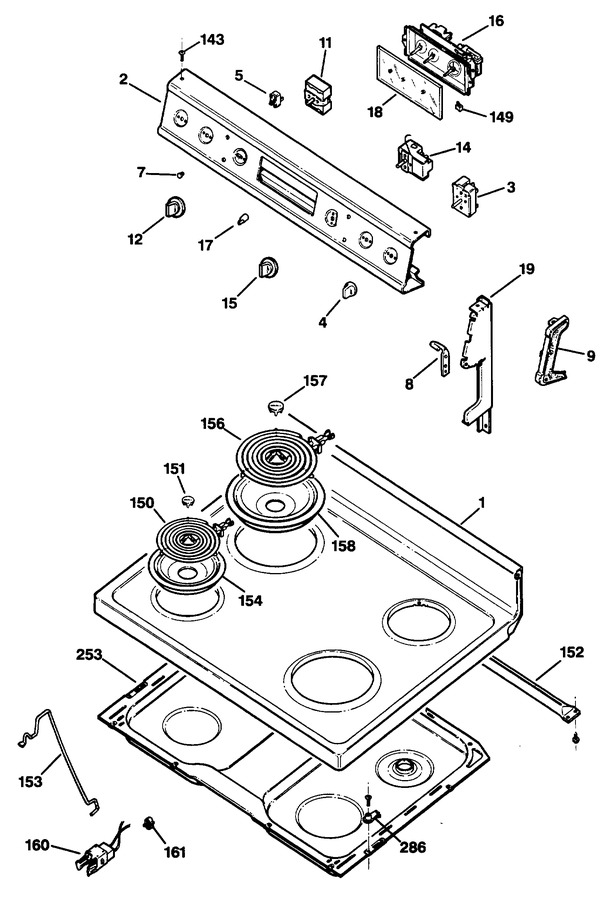

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5385 | Cooktop |
|
- | |||||
| 1 | WB62X5386 | Cooktop Wh |
|
- | |||||
| 2 | WB36X5672 | Trim Bracket Asm |
|
- | |||||
| 3 | 5500-200 | Switch, Inf Surfac Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 4 | WB3X5792 | Knob Surface Unit |
|
- | |||||
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 6 | WB2X1185 | Clip Lamp |
|
- | |||||
| 7 | WB25X65 | Jewel |
|
- | |||||
| 8 | WB2X8127 | Pin Hinge L |
|
- | |||||
| 8 | WB2X8126 | Pin Hinge R |
|
- | |||||
| 9 | WB7X7136 | End Cap Right |
|
- | |||||
| 9 | WB7X7137 | End Cap Left |
|
- | |||||
| 11 | WB22X5131 | Switch, Oven |
|
- | |||||
| 14 | WB21X5208 | Thermostat Asm-up Ov |
|
- | |||||
| 14 | WB2X6274 | Sleeve Cap Tube |
|
- | |||||
| 14 | WB2X6494 | Barrier |
|
- | |||||
| 16 | WB19X5306 | Timer |
|
- | |||||
| 17 | WB3X5699 | "timer-knob" |
|
- | |||||
| 18 | WB36X5574 | Crystal Timer |
|
- | |||||
| 19 | WB7X7125 | Plate End R |
|
- | |||||
| 19 | WB7X7126 | Plate End L |
|
- | |||||
| 143 | WB1X5860 | Screw |
|
- | |||||
| 149 | WB2X7702 | Clip Crystal |
|
- | |||||
| 150 | WG02F05372 | 6" Surf Elem (Replaces: WB30M1) |
|
Immediately | $ 68.23 | ||||
| 151 | WB32X52 | Center Trim 6" Unit |
|
- | |||||
| 152 | WB2X1351 | Term Block Double Coil |
|
- | |||||
| 152 | WB2X8113 | Bar Torsion |
|
- | |||||
| 153 | WB2X8114 | Rod Support |
|
- | |||||
| 154 | WB32X5075 | Burner Bowl 6" |
|
- | |||||
| 156 | WB30M2 | 8" Surf Elem |
|
- | |||||
| 157 | WB32X51 | Center Trim 8" Unit |
|
- | |||||
| 158 | WB32X5076 | Burner Bowl 8" |
|
$ 10.45 | |||||
| 160 | WB17X5113 | Receptacle Asm |
|
- | |||||
| 161 | WS01A01095 | Clip Wire (Replaces: WB2X8115) |
|
Immediately | $ 3.97 | ||||
| 253 | WB49X5499 | Box Cooktop |
|
- | |||||
| 286 | WB2X8107 | Strike Cooktop |
|
- | |||||
| 519 | WB2X8121 | Insulation Wrap |
|
$ 39.70 | |||||
| 535 | WB2X7749 | Aluminum Foil |
|
- | |||||
| 999 | 34-0732 | Tape |
|
- | |||||
| 9999 | 31-0824 | Install Instr (anti-tip) |
|
- | |||||
| 9999 | 31-1049-B | Wiring Diagram |
|
- | |||||
| 9999 | 39-4700 | Manual User |
|
- | |||||
| 9999 | WB2X7876 | Bracket Asm Anti-tip |
|
- |
