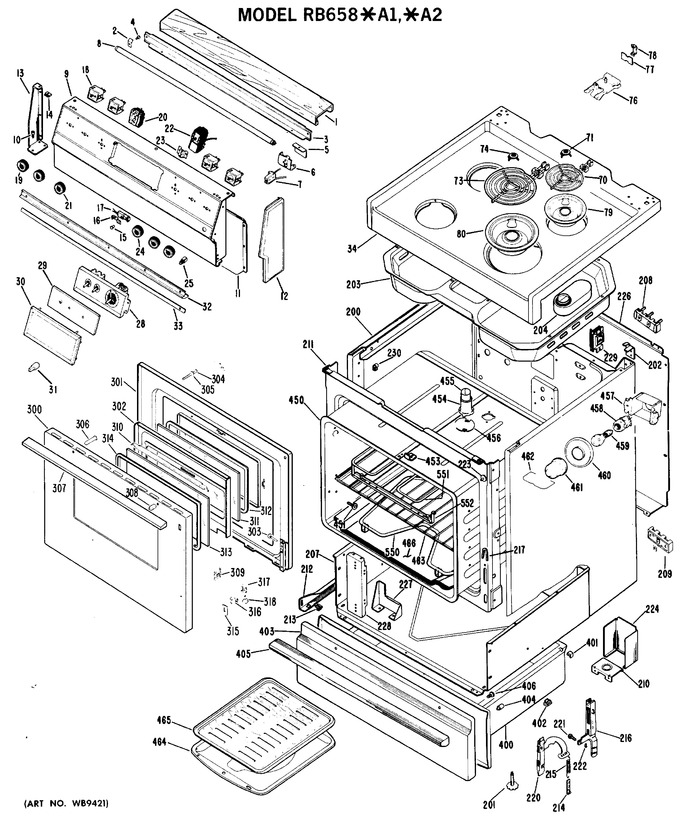

1 - Component Group


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB7X6720		Cover Top		Appelez-nous	-
2	WB2X6227		Catch Cover		Appelez-nous	-
3	WB2X6228		Cover Back		Appelez-nous	-
4	WZ05X0132		Scr 8-32 T Hxw 5/16 S		Appelez-nous	-
4	WZ04X0231		Screw Mt. Side		Appelez-nous	-
5	WZ04X0231		Screw Mt. Side		Appelez-nous	-
5	WB2X6229		Cover Lamp Bracket		Appelez-nous	-
5	WZ06X0038		Scr 8-18 Ab Hxw 5/8 S		Appelez-nous	-
6	WB2X6231		Bracket Lamp Rh		Appelez-nous	-
6	WB2X6230		Bracket Lamp Lh		Appelez-nous	-
7	WZ05X0184		Scr 6-20 Bt Phr 3/8 S		Appelez-nous	-
7	WB8X188		Lampholder		Appelez-nous	-
9	WB61X6002		Control Panel - Wh		Appelez-nous	-
9	WB61X6003		Control Panel - Cf		Appelez-nous	-
9	WB61X6004		Control Panel - Fa		Appelez-nous	-
9	WB61X6006		Control Panel - Ad		Appelez-nous	-
9	WB61X6005		Control Panel - Ha		Appelez-nous	-
10	WZ04X0238		Scr 8-18 Ab Hw 1/2 S		Appelez-nous	-
10	WZ04X0306		Scr 8-18 Ab Hx 1/2 S		Appelez-nous	-
11	WZ04X0231		Screw Mt. Side		Appelez-nous	-
11	WB49X5146		Cover Back		Appelez-nous	-
12	WB7X5493		End Cap Lh		Appelez-nous	-
12	WB7X5492		End Cap Rh		Appelez-nous	-
12	WZ05X0132		Scr 8-32 T Hxw 5/16 S		Appelez-nous	-
13	WB2X6224		Post Rh		Appelez-nous	-
13	WB2X6226		Pad Post		Appelez-nous	-
13	WB2X6240		Pad		Appelez-nous	-
13	WB2X6225		Post Lh		Appelez-nous	-
14	WB1X567		Speednut Post		Appelez-nous	-
15	WB25X65		Jewel		Appelez-nous	-
16	WB2X1185		Clip Lamp		Appelez-nous	-
17	WB2X1608		Neon Lamp 118v				$ 31.65
18	WZ02X0528		Scr 8-32 M Phr 3/16 S		Appelez-nous	-
18	WB21X227		Switch, Inf Surface Unit		Appelez-nous	-
19	WB3X5482		Knob Surface Unit		Appelez-nous	-
20	WB22X5134		Switch, Oven   (Replaces: WB22X5022)		Appelez-nous	-
20	WZ02X0528		Scr 8-32 M Phr 3/16 S		Appelez-nous	-
21	WB3X5494		Knob Oven Switch		Appelez-nous	-
22	WB21X177		Thermostat, Oven L.o.		Appelez-nous	-
23	WB2X6215		Clamp Harness		Appelez-nous	-
23	WB2X5545		Bracket Thermostat		Appelez-nous	-
23	WZ02X0528		Scr 8-32 M Phr 3/16 S		Appelez-nous	-
23	WB2X6274		Sleeve Cap Tube		Appelez-nous	-
24	WB2X5484		Knob Temperature Control		Appelez-nous	-
25	WB1X588		Lockwasher Switch		Appelez-nous	-
25	WB1X246		Switch Nut		Appelez-nous	-
25	WB24X99		Switch, "f" Lamp		Appelez-nous	-
28	WB19X122		Timer		Appelez-nous	-
28	WZ04X0231		Screw Mt. Side		Appelez-nous	-
29	WB36X5248		Crystal Timer		Appelez-nous	-
30	WB2X734		Clip Mtg Bezel, Sides		Appelez-nous	-
30	WB7X5494		Bezel Timer		Appelez-nous	-
30	WB2X1401		Clip Mtg Bezel Top & Btm		Appelez-nous	-
31	WB3X459		Knob Timer		Appelez-nous	-
32	WZ04X0237		Screw		Appelez-nous	-
32	WB7X5495		Trim Lower		Appelez-nous	-
33	WB7X5514		Trim Insert		Appelez-nous	-
33	WB1X5371		Nut 700626a		Appelez-nous	-
34	WB62X5244		Cooktop Ha		Appelez-nous	-
34	WB62X5241		Cooktop Wh		Appelez-nous	-
34	WB62X5245		Cooktop Ad		Appelez-nous	-
34	WZ04X0413		Screw		Appelez-nous	-
34	WB62X5243		Cooktop Fa		Appelez-nous	-
34	WB62X5242		Cooktop Cf		Appelez-nous	-
70	WB30X218		Surface Unit, 6"		Appelez-nous	-
70	WB1X5355		Screw Recept Terminal		Appelez-nous	-
71	WB3X52		Center Trim - 6" Unit		Appelez-nous	-
73	WB1X5355		Screw Recept Terminal		Appelez-nous	-
73	PS240M		Surface Unit, 8"   (Replaces: WB30X219)			Immediately	$ 44.95
74	WB32X51		Center Trim 8" Unit		Appelez-nous	-
76	WZ04X0360		Scr 8-18x3/8 Bt Hex Wshr		Appelez-nous	-
76	WB17X5051		Receptacle Asm		Appelez-nous	-
77	WB2X6171		Insulator		Appelez-nous	-
78	WB2X6172		Clip Insulator		Appelez-nous	-
79	WB31X5010		Pan Ring 6" Chrome		Appelez-nous	-
80	WB31X5011		Pan Ring 8" Chrome		Appelez-nous	-
80	WB2X995		Clip Lead		Appelez-nous	-
200	WZ04X0231		Screw Mt. Side		Appelez-nous	-
200	WB2X3229		Barrier Bakeunit Opening		Appelez-nous	-
201	WB1X450		Leg Leveling		Appelez-nous	-
202	WB2X6185		Catch Cook Top Mtg Rh		Appelez-nous	-
202	WZ05X0211		Screw Mtg. Catch		Appelez-nous	-
202	WB2X6184		Catch Cook Top Mtg Lh		Appelez-nous	-
203	WZ04X0231		Screw Mt. Side		Appelez-nous	-
203	WB49X5149		Box Cooktop		Appelez-nous	-
203	WB2X3238		Pad		Appelez-nous	-
204	WB38X5039		Body Vent		Appelez-nous	-
207	WB49X5156		Guard Lower		Appelez-nous	-
207	WZ04X0231		Screw Mt. Side		Appelez-nous	-
208	WZ04X0384		Screw Mtg End Cap		Appelez-nous	-
208	WB17X167		Block Term Distribution		Appelez-nous	-
209	WZ04X0231		Screw Mt. Side		Appelez-nous	-
209	WZ04X0348		Scr 10-16 B Sl 1-1/8 S		Appelez-nous	-
209	WB2X646		Plate Ground		Appelez-nous	-
209	WB17X168		Terminal Block-power		Appelez-nous	-
210	WS01A02255		Screw   (Replaces: WB1X536)				$ 3.97
210	WB2X6191		Bracket Knockout		Appelez-nous	-
211	WB56X5862		Frame Front		Appelez-nous	-
211	WZ04X0345		Screw 8-18x5/8 Hxw		Appelez-nous	-
211	WB2X6882		Bracket Front Frame		Appelez-nous	-
211	WB56X1301		Front Frame (04)		Appelez-nous	-
212	WB39X5011		Guide Drawer Rh		Appelez-nous	-
212	WZ04X0231		Screw Mt. Side		Appelez-nous	-
212	WB39X5010		Guide Drawer Lh		Appelez-nous	-
213	WB2X831		Slide Guide		Appelez-nous	-
214	WB2X2506		Hook Door Spring		Appelez-nous	-
215	WB9X5073		Spring Door		Appelez-nous	-
216	WB1X5471		Scr 8-18 Ab T 15/32 S		Appelez-nous	-
216	WB1X5497		Scr 10-16 Ab Ihw 1/2 S		Appelez-nous	-
216	WB10X5091		Support Hinge Lh		Appelez-nous	-
216	WB10X5090		Support Hinge Rh		Appelez-nous	-
216	WB1X119		Washer Contoured		Appelez-nous	-
217	WB2X6342		Guide Hinge Lever		Appelez-nous	-
220	WB10X5092		Hinge Lever Asm Rh Lh		Appelez-nous	-
221	WG02A00596		Pin Hinge Door   (Replaces: WB2X6195)				$ 4.20
222	WB2X1082		Ring Retaining		Appelez-nous	-
223	WB24X105		Switch		Appelez-nous	-
224	WB2X6655		Cover Terminal Block		Appelez-nous	-
224	WZ04X0232		Scr 8-18 Ab Hxs 3/8 S		Appelez-nous	-
226	WB49X5098		Cover Back		Appelez-nous	-
226	WZ04X0231		Screw Mt. Side		Appelez-nous	-
227	WB2X6187		Support Oven		Appelez-nous	-
228	WB2X6768		Panel Filler		Appelez-nous	-
229	WB2X1076		Ballast "f" Lamp		Appelez-nous	-
229	WZ04X0231		Screw Mt. Side		Appelez-nous	-
230	WB2X1742		Clamp Harness		Appelez-nous	-
300	WB56X5833		Door Panel Ha		Appelez-nous	-
300	WZ04X0231		Screw Mt. Side		Appelez-nous	-
300	WB2X6833		Insulation Door		Appelez-nous	-
300	WB56X5832		Panel - Fa		Appelez-nous	-
300	WB56X5831		Panel - Cf		Appelez-nous	-
300	WB56X5830		Door Panel Wh		Appelez-nous	-
300	WB56X5834		Door Panel Ad		Appelez-nous	-
301	WB55X5182		Door Liner		Appelez-nous	-
302	WB49X384		Guard Insulation		Appelez-nous	-
302	WB1X590		Scr 8-32 Ca Hx 13/32 S		Appelez-nous	-
303	WB1X588		Lockwasher Switch		Appelez-nous	-
304	WZ04X0298		Screw Mtg Handle		Appelez-nous	-
305	WB1X119		Washer Contoured		Appelez-nous	-
306	WB2X6204		Spacer Panel		Appelez-nous	-
307	WB15X147		Handle		Appelez-nous	-
308	WB2X3241		Handle Spacer		Appelez-nous	-
309	WB2X6270		Spacer Door		Appelez-nous	-
310	WB1X590		Scr 8-32 Ca Hx 13/32 S		Appelez-nous	-
310	WB2X3282		Clip Crystal		Appelez-nous	-
311	WB36X526		Crystal Window				$ 140.86
312	WB7X1031		Trim Crystal		Appelez-nous	-
313	WB36X430		Crystal Window		Appelez-nous	-
314	WB7X1031		Trim Crystal		Appelez-nous	-
315	WB7X5486		Trim		Appelez-nous	-
316	WB2X5410		Cam		Appelez-nous	-
317	WB9X134		Cam Spring		Appelez-nous	-
318	WB2X5217		Cam Link		Appelez-nous	-
400	WB58X5005		Drawer Asm		Appelez-nous	-
401	WB2X840		Slide Top		Appelez-nous	-
402	WB2X841		Slide Bottom		Appelez-nous	-
403	WB56X5737		Drawer Panel Ad		Appelez-nous	-
403	WB56X5733		Drawer Panel Wh		Appelez-nous	-
403	WB56X5734		Drawer Panel Cf		Appelez-nous	-
403	WB56X5735		Drawer Panel Fa		Appelez-nous	-
403	WB56X5736		Drawer Panel Ha		Appelez-nous	-
404	WB2X6208		Bumper		Appelez-nous	-
405	WB15X5100		Wb15x5124		Appelez-nous	-
406	WZ04X0209		Handle Screw		Appelez-nous	-
450	WB2X6221		Insulation		Appelez-nous	-
450	WB2X6379		Gasket Silicone (03)		Appelez-nous	-
450	WB2X6956		Gasket Silicone		Appelez-nous	-
450	WB53X5080		Oven Liner		Appelez-nous	-
451	WB1X5471		Scr 8-18 Ab T 15/32 S		Appelez-nous	-
453	WZ04X0413		Screw		Appelez-nous	-
453	WB2X6209		Trim Clip		Appelez-nous	-
454	WB38X49		Tube Vent		Appelez-nous	-
455	WB2X2057		Extension Vent Tube		Appelez-nous	-
456	WB2X1626		Baffle		Appelez-nous	-
456	WZ04X0231		Screw Mt. Side		Appelez-nous	-
457	WB2X3447		Bracket Support		Appelez-nous	-
458	WB8X191		Receptacle		Appelez-nous	-
460	WB2X3448		Trim Lamp		Appelez-nous	-
461	WG02F04576		Ov Lamp Lens   (Replaces: WB36X389)				$ 20.65
462	WB2X2885		Bail		Appelez-nous	-
463	WB48X5044		Oven Rack		Appelez-nous	-
464	WB49X88		Broil Pan		Appelez-nous	-
465	WB48X5002		Broiler Pan Rack		Appelez-nous	-
550	WZ04X0231		Screw Mt. Side		Appelez-nous	-
550	UB592		Bake Unit 208/240v   (Replaces: WB44X5082)			Immediately	$ 49.95
550	WB1X500		Terminal Screw		Appelez-nous	-
551	UT316		Broil Unit 208/240v   (Replaces: WB44X180)			Immediately	$ 49.95
551	WB1X500		Terminal Screw		Appelez-nous	-
551	WB4X231		Screw Mt. Stop		Appelez-nous	-
552	WB2X1452		Support Broil		Appelez-nous	-
552	WZ04X0291		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
