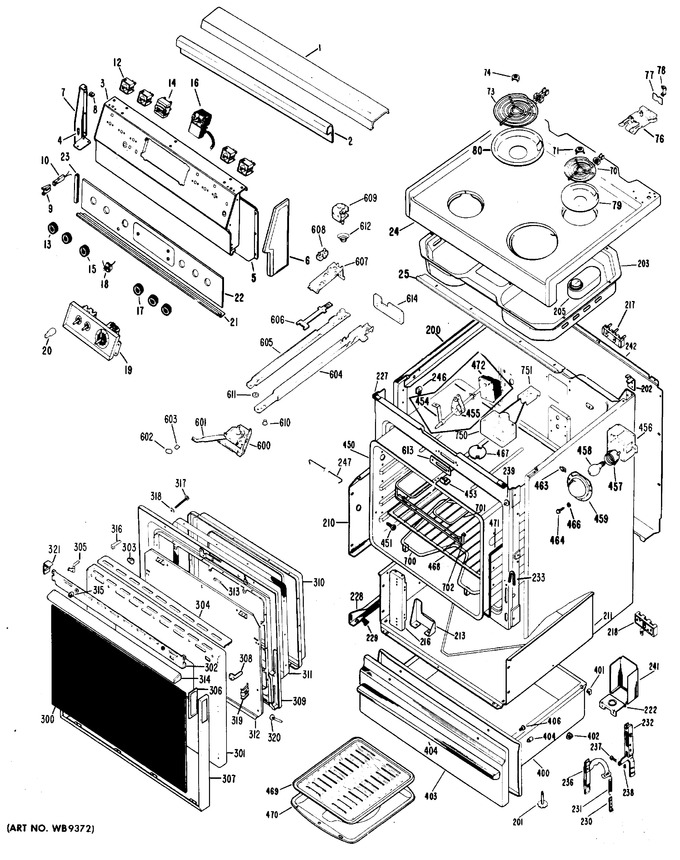

SELECT A DIAGRAM

1 - Component Group


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB7X6693		Cover Top (a1)		Appelez-nous	-
1	WZ04X0349		Screw		Appelez-nous	-
1	WB7X6719		Cover Top		Appelez-nous	-
2	WB7X5589		Trim Top		Appelez-nous	-
2	WS01A01150		Screw (cr)   (Replaces: WB1X5364)				$ 3.97
3	WB61X5937		Control Panel Cf		Appelez-nous	-
3	WB61X5939		Control Panel Ha		Appelez-nous	-
3	WB61X5940		Control Panel Ad		Appelez-nous	-
3	WB61X5938		Control Panel Fa		Appelez-nous	-
3	WB61X5936		Control Panel Wh		Appelez-nous	-
4	WZ04X0231		Screw Mt. Side		Appelez-nous	-
4	WZ04X0238		Scr 8-18 Ab Hw 1/2 S		Appelez-nous	-
4	WZ06X0038		Scr 8-18 Ab Hxw 5/8 S		Appelez-nous	-
4	WB2X6500		Clip Backsplasher		Appelez-nous	-
4	WS01A01150		Screw (cr)   (Replaces: WB1X5364)				$ 3.97
4	WZ04X0306		Scr 8-18 Ab Hx 1/2 S		Appelez-nous	-
5	WB49X5146		Cover Back		Appelez-nous	-
6	WZ05X0132		Scr 8-32 T Hxw 5/16 S		Appelez-nous	-
6	WB7X5588		End Cap Lh		Appelez-nous	-
6	WB7X5587		End Cap Rh		Appelez-nous	-
7	WB2X6226		Pad Post		Appelez-nous	-
7	WB2X6225		Post Lh		Appelez-nous	-
7	WB2X6224		Post Rh		Appelez-nous	-
8	WB1X567		Speednut Post		Appelez-nous	-
9	WB2X6239		Surface Light Bracket		Appelez-nous	-
10	WB2X1609		Lamp, Indicator		Appelez-nous	-
10	WB2X1608		Neon Lamp 118v				$ 31.65
11	WB2X3244		Resistor 15,000 Ohms		Appelez-nous	-
12	WB2X6494		Barrier		Appelez-nous	-
12	WZ02X0528		Scr 8-32 M Phr 3/16 S		Appelez-nous	-
12	WB21X230		Switch, Inf Surface Unit		Appelez-nous	-
13	WB3X5482		Knob Surface Unit		Appelez-nous	-
14	WB2X6494		Barrier		Appelez-nous	-
14	WZ02X0528		Scr 8-32 M Phr 3/16 S		Appelez-nous	-
14	WB22X5090		Switch, Oven		Appelez-nous	-
15	WB3X422		Knob Oven Switch		Appelez-nous	-
16	WB2X6274		Sleeve Cap Tube		Appelez-nous	-
16	WZ02X0528		Scr 8-32 M Phr 3/16 S		Appelez-nous	-
16	WB21X5320		Thermostat, Dual   (Replaces: WB24X176)		Appelez-nous	-
16	WB2X6494		Barrier		Appelez-nous	-
17	WB3X5544		Knob Thermostat		Appelez-nous	-
18	WB1X588		Lockwasher Switch		Appelez-nous	-
18	WB24X5081		Switch, Latch Release		Appelez-nous	-
18	WB1X5373		Nut-knurled Trim		Appelez-nous	-
19	WB19X122		Timer		Appelez-nous	-
19	WZ04X0231		Screw Mt. Side		Appelez-nous	-
20	WB3X459		Knob Timer		Appelez-nous	-
21	WB7X5500		Trim Lower		Appelez-nous	-
21	WZ05X0132		Scr 8-32 T Hxw 5/16 S		Appelez-nous	-
21	WB2X3232		Pad		Appelez-nous	-
22	WB2X5594		Bumper		Appelez-nous	-
22	WB36X5419		Crystal Control		Appelez-nous	-
23	WB7X5590		Trim Crystal End		Appelez-nous	-
23	WB2X6240		Pad		Appelez-nous	-
24	WB62X5243		Cooktop Fa		Appelez-nous	-
24	WB62X5241		Cooktop Wh		Appelez-nous	-
24	WB62X5242		Cooktop Cf		Appelez-nous	-
24	WB62X5244		Cooktop Ha		Appelez-nous	-
24	WB62X5245		Cooktop Ad		Appelez-nous	-
25	WB7X5586		Deflector		Appelez-nous	-
25	WZ06X0038		Scr 8-18 Ab Hxw 5/8 S		Appelez-nous	-
70	WB30X218		Surface Unit, 6"		Appelez-nous	-
70	WB1X5355		Screw Recept Terminal		Appelez-nous	-
71	WB32X52		Center Trim 6" Unit		Appelez-nous	-
73	PS240M		Surface Unit, 8"   (Replaces: WB30X219)			Immediately	$ 44.95
73	WB1X5355		Screw Recept Terminal		Appelez-nous	-
74	WB32X51		Center Trim 8" Unit		Appelez-nous	-
76	WZ04X0360		Scr 8-18x3/8 Bt Hex Wshr		Appelez-nous	-
76	WB17X5051		Receptacle Asm		Appelez-nous	-
77	WB2X6171		Insulator		Appelez-nous	-
78	WB2X6172		Clip Insulator		Appelez-nous	-
79	WB31X5010		Pan Ring 6" Chrome		Appelez-nous	-
80	WB31X5011		Pan Ring 8" Chrome		Appelez-nous	-
80	WB2X995		Clip Lead		Appelez-nous	-
200	WB2X3229		Barrier Bakeunit Opening		Appelez-nous	-
201	WB1X450		Leg Leveling		Appelez-nous	-
202	WB2X6185		Catch Cook Top Mtg Rh		Appelez-nous	-
202	WB2X6184		Catch Cook Top Mtg Lh		Appelez-nous	-
202	WZ05X0211		Screw Mtg. Catch		Appelez-nous	-
203	WB2X3238		Pad		Appelez-nous	-
203	WB49X5149		Box Cooktop		Appelez-nous	-
203	WZ04X0231		Screw Mt. Side		Appelez-nous	-
205	WB38X5039		Body Vent		Appelez-nous	-
210	WB49X5172		Guard Upper-lh (06)		Appelez-nous	-
210	WB49X5171		Guard Upper-rh (06)		Appelez-nous	-
210	WB49X5221		Guard Upper Rh		Appelez-nous	-
210	WB49X5222		Guard Upper Lh		Appelez-nous	-
210	WZ04X0345		Screw 8-18x5/8 Hxw		Appelez-nous	-
211	WZ04X0231		Screw Mt. Side		Appelez-nous	-
211	WB2X6187		Support Oven		Appelez-nous	-
211	WB49X5156		Guard Lower		Appelez-nous	-
216	WZ04X0231		Screw Mt. Side		Appelez-nous	-
216	WB2X6768		Panel Filler		Appelez-nous	-
217	WZ04X0384		Screw Mtg End Cap		Appelez-nous	-
217	WB17X167		Block Term Distribution		Appelez-nous	-
218	WZ04X0231		Screw Mt. Side		Appelez-nous	-
218	WZ04X0348		Scr 10-16 B Sl 1-1/8 S		Appelez-nous	-
218	WB17X168		Terminal Block-power		Appelez-nous	-
218	WB2X646		Plate Ground		Appelez-nous	-
222	WB2X6191		Bracket Knockout		Appelez-nous	-
222	WS01A02255		Screw   (Replaces: WB1X536)				$ 3.97
227	WB56X5861		Frame Front		Appelez-nous	-
227	WB2X3240		Spacer		Appelez-nous	-
227	WB56X1296		Frame		Appelez-nous	-
227	WZ04X0345		Screw 8-18x5/8 Hxw		Appelez-nous	-
228	WZ04X0231		Screw Mt. Side		Appelez-nous	-
228	WB39X5101		Drawer Guide Lh		Appelez-nous	-
228	WB39X5011		Guide Drawer Rh		Appelez-nous	-
229	WB2X831		Slide Guide		Appelez-nous	-
230	WB2X2506		Hook Door Spring		Appelez-nous	-
231	WB9X5076		Spring Door		Appelez-nous	-
232	WB10X5090		Support Hinge Rh		Appelez-nous	-
232	WB10X5091		Support Hinge Lh		Appelez-nous	-
232	WB1X119		Washer Contoured		Appelez-nous	-
232	WB1X5471		Scr 8-18 Ab T 15/32 S		Appelez-nous	-
232	WB1X5497		Scr 10-16 Ab Ihw 1/2 S		Appelez-nous	-
233	WB2X6342		Guide Hinge Lever		Appelez-nous	-
236	WB10X5092		Hinge Lever Asm Rh Lh		Appelez-nous	-
237	WG02A00596		Pin Hinge Door   (Replaces: WB2X6195)				$ 4.20
238	WB2X1082		Ring Retaining		Appelez-nous	-
239	WB24X105		Switch		Appelez-nous	-
241	WB2X6655		Cover Terminal Block		Appelez-nous	-
241	WZ04X0304		Screw Mt. Duct		Appelez-nous	-
242	WB49X5161		Cover Back		Appelez-nous	-
242	WZ04X0231		Screw Mt. Side		Appelez-nous	-
246	WB2X1742		Clamp Harness		Appelez-nous	-
247	WB2X6767		Hook Wire		Appelez-nous	-
300	WB36X554		Glass Black		Appelez-nous	-
301	WB2X6546		Insulation Door		Appelez-nous	-
301	WB56X5678		Panel Door		Appelez-nous	-
302	WB7X5629		Trim Door		Appelez-nous	-
303	WB2X3053		Clip Mtg Door Trims		Appelez-nous	-
304	WB7X5630		Trim Top		Appelez-nous	-
305	WB2X6574		Clip-trim Door		Appelez-nous	-
306	WB2X6573		Pad Trim		Appelez-nous	-
307	WB7X5625		Trim Door		Appelez-nous	-
307	WZ04X0231		Screw Mt. Side		Appelez-nous	-
308	WB2X6574		Clip-trim Door		Appelez-nous	-
309	WB55X5220		Door Liner		Appelez-nous	-
310	WB55X5213		Panel Inner		Appelez-nous	-
311	WB2X6547		Gasket Door		Appelez-nous	-
311	WB1X537		Screw		Appelez-nous	-
312	WB55X5219		Guard Insulation		Appelez-nous	-
312	WZ04X0231		Screw Mt. Side		Appelez-nous	-
313	WZ04X0304		Screw Mt. Duct		Appelez-nous	-
313	WB9X154		Strike Spring		Appelez-nous	-
314	WB15X5130		Handle		Appelez-nous	-
314	WB15X145		Handle		Appelez-nous	-
315	WB2X6243		Grommet Handle		Appelez-nous	-
316	WB2X6204		Spacer Panel		Appelez-nous	-
317	WZ04X0298		Screw Mtg Handle		Appelez-nous	-
318	WB1X119		Washer Contoured		Appelez-nous	-
319	WB2X6270		Spacer Door		Appelez-nous	-
320	WB1X558		Screw Nail Point		Appelez-nous	-
321	WB7X5631		Cap Trim		Appelez-nous	-
400	WB58X5005		Drawer Asm		Appelez-nous	-
401	WB2X840		Slide Top		Appelez-nous	-
402	WB2X841		Slide Bottom		Appelez-nous	-
403	WB56X5737		Drawer Panel Ad		Appelez-nous	-
403	WB2X6208		Bumper		Appelez-nous	-
403	WB56X5733		Drawer Panel Wh		Appelez-nous	-
403	WB56X5734		Drawer Panel Cf		Appelez-nous	-
403	WB56X5735		Drawer Panel Fa		Appelez-nous	-
403	WB56X5736		Drawer Panel Ha		Appelez-nous	-
404	WZ04X0209		Handle Screw		Appelez-nous	-
404	WB15X5121		Handle		Appelez-nous	-
450	WB53X5070		Oven Liner		Appelez-nous	-
450	WB1X525		Washer		Appelez-nous	-
450	WB1X422		Scr 8-18 T Ihw 1/2 S		Appelez-nous	-
450	WB2X3230		Cover Plate-jack		Appelez-nous	-
450	WB2X6496		Insulation		Appelez-nous	-
451	WB1X570		Screw Mtg. Liner		Appelez-nous	-
453	WZ04X0413		Screw		Appelez-nous	-
453	WB2X6209		Trim Clip		Appelez-nous	-
454	WZ04X0288		Scr 10-16 Ab Hxw 1/2s #8		Appelez-nous	-
454	WB2X3165		Hanger-tls		Appelez-nous	-
455	WB2X3164		Plate		Appelez-nous	-
455	WB2X3163		Gasket-tls				$ 22.50
456	WZ04X0231		Screw Mt. Side		Appelez-nous	-
456	WB2X3466		Guard Lamp		Appelez-nous	-
457	WB8X191		Receptacle		Appelez-nous	-
459	WG02F04576		Lamp Cover Asm   (Replaces: WB36X192)				$ 20.65
463	WB2X1659		Speednut		Appelez-nous	-
464	WZ04X0361		Scr 8-18x5/8		Appelez-nous	-
466	WB2X1847		Washer Mt. Cover		Appelez-nous	-
467	WB2X1626		Baffle		Appelez-nous	-
467	WZ04X0291		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
468	WB48X5044		Oven Rack		Appelez-nous	-
469	WB48X5002		Broiler Pan Rack		Appelez-nous	-
470	WB49X88		Broil Pan		Appelez-nous	-
471	WB1X500		Terminal Screw		Appelez-nous	-
471	WB44X186		Mullion Unit		Appelez-nous	-
471	WB2X3253		Mullion Unit Clip		Appelez-nous	-
472	WB24X175		Switch, Thermal		Appelez-nous	-
600	WZ02X0546		Scr 8-32 M Phr 1/2 S		Appelez-nous	-
600	WB14X36		Latch Assembly		Appelez-nous	-
601	WB15X142		Handle		Appelez-nous	-
601	WB1X438		Screw Washer Asm		Appelez-nous	-
602	WB3X322		Knob Latch		Appelez-nous	-
603	WG02A00753		Retainer Knob   (Replaces: WB2X2030)				$ 4.20
604	WB2X3174		Channel Latch		Appelez-nous	-
605	WB2X3175		Channel Locking		Appelez-nous	-
606	WB2X3159		Locking Pawl Asm		Appelez-nous	-
607	WZ04X0362		Screw 10-16 X 1/4" Hex		Appelez-nous	-
607	WZ04X0396		Scr 10-16 B Hxw 1/4 S		Appelez-nous	-
607	WB2X3176		Plate Mounting		Appelez-nous	-
608	WB24X183		Switch, Latch		Appelez-nous	-
608	WZ04X0397		Scr 6-32 C Flr 5/16 S		Appelez-nous	-
608	WB2X6912		Barrier Latch Sw Low Ov		Appelez-nous	-
609	WB24X197		Solenoid		Appelez-nous	-
609	WB1X438		Screw Washer Asm		Appelez-nous	-
610	WB2X6212		Pivot Stud		Appelez-nous	-
611	WB2X1800		Retainer Ring		Appelez-nous	-
612	WB9X148		Spring-plunger		Appelez-nous	-
613	WB7X552		Trim Latch		Appelez-nous	-
614	WZ04X0394		Screw		Appelez-nous	-
614	WB2X6911		Bracket Latch		Appelez-nous	-
614	WZ10X0114		Lockwasher		Appelez-nous	-
700	WZ04X0291		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
700	WB1X500		Terminal Screw		Appelez-nous	-
700	UB592		Bake Unit 208/240v   (Replaces: WB44X5082)			Immediately	$ 49.95
701	UT316		Broil Unit   (Replaces: WB44X185)			Immediately	$ 49.95
701	WZ04X0291		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
701	WB1X500		Terminal Screw		Appelez-nous	-
702	WZ04X0291		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
702	WB2X1543		Gasket - Broil		Appelez-nous	-
702	WB2X1810		Support Broil Unit		Appelez-nous	-
750	WB29X5009		Smoke Eliminator Asm		Appelez-nous	-
750	WZ04X0291		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
751	WB2X3388		Terminal Block		Appelez-nous	-
751	WB1X500		Terminal Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
