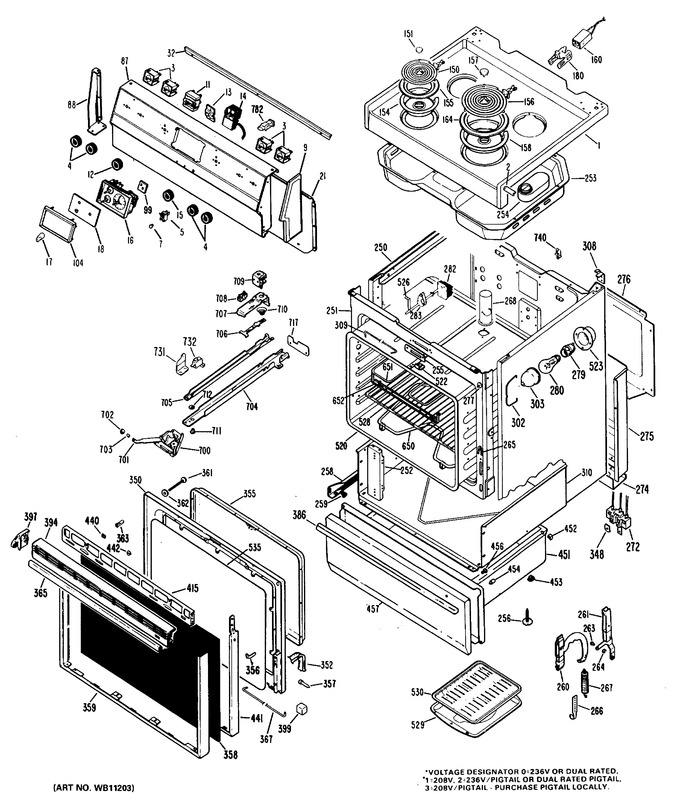

1 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5365 | Cooktop Ad |
|
- | |||||
| 1 | WB62X5366 | Cooktop Wh |
|
- | |||||
| 2 | WB7X7031 | Trim Cooktop Ad |
|
- | |||||
| 3 | WB21X242 | Switch, Inf Surface Unit |
|
- | |||||
| 4 | WB3X5482 | Knob Surface Unit |
|
- | |||||
| 5 | WB2X7697 | Lamp Pilot 125v |
|
- | |||||
| 5 | WB2X7698 | Lamp Pilot 250v |
|
- | |||||
| 7 | WB25X5054 | Jewel |
|
- | |||||
| 9 | WB7X6942 | End Cap Rh |
|
- | |||||
| 9 | WB7X6943 | End Cap Lh |
|
- | |||||
| 11 | WB22X5101 | Switch, Oven |
|
- | |||||
| 12 | WB3X5669 | Knob Oven Switch |
|
- | |||||
| 13 | WB2X5545 | Bracket Thermostat |
|
- | |||||
| 14 | WB21X5320 | Thermostat, Dual (Replaces: WB24X176) |
|
- | |||||
| 14 | WB2X6274 | Sleeve Cap Tube |
|
- | |||||
| 15 | WB3X5544 | Knob Thermostat |
|
- | |||||
| 16 | WB19X5224 | Timer |
|
- | |||||
| 17 | WB3X459 | Knob Timer |
|
- | |||||
| 18 | WB36X5437 | Crystal Timer |
|
- | |||||
| 21 | WB49X5146 | Cover Back |
|
- | |||||
| 32 | WB7X6944 | Trim Top |
|
- | |||||
| 45 | WB1X540 | Nut |
|
- | |||||
| 87 | WB61X6049 | Control Panel Ad |
|
- | |||||
| 87 | WB61X6047 | Control Panel Wh |
|
- | |||||
| 88 | WB2X6226 | Pad Post |
|
- | |||||
| 88 | WB2X6225 | Post Lh |
|
- | |||||
| 88 | WB2X6224 | Post Rh |
|
- | |||||
| 99 | WB2X7880 | Plate Mounting |
|
- | |||||
| 104 | WB2X1401 | Clip Mtg Bezel Top & Btm |
|
- | |||||
| 104 | WB2X734 | Clip Mtg Bezel, Sides |
|
- | |||||
| 104 | WB7X5490 | Bezel Timer |
|
- | |||||
| 150 | WB30X5071 | Surface Unit, 6" |
|
- | |||||
| 151 | WB32X52 | Center Trim 6" Unit |
|
- | |||||
| 154 | WB32X5051 | Pan 6" Porc. Gray |
|
- | |||||
| 154 | WB32X5059 | Pan 6" Porc Frosted |
|
- | |||||
| 155 | WB31X5013 | Trim Ring 6" |
|
- | |||||
| 156 | WB30X5072 | Surface Unit, 8" |
|
- | |||||
| 157 | WB32X51 | Center Trim 8" Unit |
|
- | |||||
| 158 | WB32X5060 | Pan 8" Porc Frosted |
|
- | |||||
| 158 | WB32X5052 | Pan 8" Porc. Gray |
|
- | |||||
| 160 | WB17X5094 | Receptacle Asm |
|
- | |||||
| 164 | WB31X5014 | Trim Ring 8" |
|
Immediately | $ 13.55 | ||||
| 180 | WB2X7618 | Bracket Mtg Receptacle |
|
- | |||||
| 250 | NOT AVAIL | Body |
|
- | |||||
| 251 | WB56X6054 | Frame Front |
|
- | |||||
| 252 | WB2X7864 | Panel Filler |
|
- | |||||
| 253 | WB49X5465 | Box Cooktop |
|
- | |||||
| 254 | WB38X5039 | Body Vent |
|
- | |||||
| 255 | WB7X552 | Trim Latch |
|
- | |||||
| 256 | WB1X5533 | Screw Leveling Leg Rear |
|
- | |||||
| 258 | WB39X5011 | Guide Drawer Rh |
|
- | |||||
| 258 | WB39X5010 | Guide Drawer Lh |
|
- | |||||
| 259 | WB2X831 | Slide Guide |
|
- | |||||
| 260 | WB10X5092 | Hinge Lever Asm Rh & Lh |
|
- | |||||
| 261 | WB10X5090 | Support Hinge Rh |
|
- | |||||
| 261 | WB10X5091 | Support Hinge Lh |
|
- | |||||
| 263 | WG02A00596 | Pin Hinge (Replaces: WB2X6195) |
|
$ 4.20 | |||||
| 264 | WB2X1082 | Pin Hinge Retainer |
|
- | |||||
| 265 | WB2X6342 | Guide Hinge Lever |
|
- | |||||
| 266 | WB2X2506 | Hook Door Spring |
|
- | |||||
| 267 | WB9X5073 | Spring Door |
|
- | |||||
| 268 | WB29X5019 | Smoke Elim & Tube Asm |
|
- | |||||
| 272 | WB17X5095 | Block Terminal Power |
|
- | |||||
| 274 | WB2X1908 | Knockout Plate |
|
- | |||||
| 275 | WB2X7774 | Guard Terminal |
|
- | |||||
| 276 | WB49X5398 | Cover Back |
|
- | |||||
| 277 | WB24X105 | Switch, Oven Light |
|
- | |||||
| 279 | WB8X5095 | Receptacle |
|
- | |||||
| 280 | WX12X1510 | Lamp 40w Appliance |
|
- | |||||
| 282 | WB24X5138 | Switch, Thermal (tls) |
|
- | |||||
| 283 | WB2X3164 | Plate |
|
- | |||||
| 283 | WB2X3163 | Gasket |
|
$ 22.50 | |||||
| 302 | WB2X7694 | Bail |
|
- | |||||
| 303 | WG02F04576 | Glass Oven Lamp (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 308 | WB2X6184 | Catch Cook Top Mtg Lh |
|
- | |||||
| 308 | WB2X6185 | Catch Cook Top Mtg Rh |
|
- | |||||
| 309 | WB2X6767 | Hook Wire |
|
- | |||||
| 310 | WB49X5156 | Guard Lower |
|
- | |||||
| 348 | WB2X646 | Plate Ground |
|
- | |||||
| 350 | WB2X6546 | Insulation Door |
|
- | |||||
| 350 | WB55X5327 | Door Liner |
|
- | |||||
| 352 | WB2X6547 | Gasket Door |
|
- | |||||
| 355 | WB55X5332 | Panel Inner |
|
- | |||||
| 356 | WB2X6574 | Clip Trim (4) |
|
- | |||||
| 357 | WB1X558 | Screw |
|
- | |||||
| 358 | WB36X5557 | Glass Black |
|
- | |||||
| 361 | WB1X5735 | Screw |
|
- | |||||
| 362 | WB1X119 | Washer Screw |
|
- | |||||
| 363 | WB2X7616 | Spacer Panel |
|
- | |||||
| 365 | WB15X5174 | Handle Door |
|
- | |||||
| 367 | WB2X7747 | Hook Wire |
|
- | |||||
| 386 | WB15X5172 | Handle Drawer |
|
- | |||||
| 394 | WB7X6893 | Trim Top |
|
- | |||||
| 397 | WB7X7015 | End Cap Lh-handle |
|
- | |||||
| 397 | WZ04X0384 | Screw Mtg End Cap |
|
- | |||||
| 397 | WB7X7016 | End Cap Rh-handle |
|
- | |||||
| 399 | WB2X3285 | Pad Socket |
|
- | |||||
| 415 | WB2X7608 | Brace Top |
|
- | |||||
| 440 | WB1X5736 | Speednut |
|
- | |||||
| 441 | WB2X7610 | Brace Side Rh |
|
- | |||||
| 441 | WB2X7609 | Brace Side Lh |
|
- | |||||
| 442 | WB1X5743 | Speednut |
|
- | |||||
| 451 | WB58X5005 | Drawer Asm |
|
- | |||||
| 452 | WB2X840 | Slide Top |
|
- | |||||
| 453 | WB2X841 | Slide Bottom |
|
- | |||||
| 454 | WB2X6208 | Bumper |
|
- | |||||
| 456 | WZ04X0345 | Screw |
|
- | |||||
| 456 | WZ04X0365 | Screw |
|
- | |||||
| 457 | WB56X6086 | Drawer Panel Ha |
|
- | |||||
| 457 | WB56X6087 | Drawer Panel Ad |
|
- | |||||
| 457 | WB56X6085 | Drawer Panel Wh |
|
- | |||||
| 459 | WB1X537 | Screw |
|
- | |||||
| 520 | WB2X6496 | Insulation |
|
- | |||||
| 520 | WB53X5131 | Oven Liner |
|
- | |||||
| 522 | WB2X6209 | Clip Trim |
|
- | |||||
| 523 | WB2X7693 | Housing Receptacle |
|
- | |||||
| 526 | WB2X3165 | Hanger |
|
- | |||||
| 528 | WB48X5044 | Rack Oven |
|
- | |||||
| 529 | WB49X5380 | Broil Pan |
|
- | |||||
| 530 | WB48X5002 | Broiler Pan Rack |
|
- | |||||
| 535 | WB2X7749 | Aluminum Foil |
|
- | |||||
| 650 | UB592 | Bake Unit 208/240v (Replaces: WB44X5082) |
|
Immediately | $ 49.95 | ||||
| 651 | UT316 | Broil Unit 208/240v (Replaces: WB44X185) |
|
Immediately | $ 49.95 | ||||
| 652 | WB2X1452 | Support Broil |
|
- | |||||
| 700 | WB14X5036 | Latch |
|
- | |||||
| 701 | WB15X5133 | Handle Latch |
|
- | |||||
| 702 | WB3X5681 | Knob Latch |
|
- | |||||
| 703 | WG02A00753 | Retainer Knob (Replaces: WB2X2030) |
|
$ 4.20 | |||||
| 704 | WB2X7707 | Channel Latch |
|
- | |||||
| 705 | WB2X7710 | Channel Locking |
|
- | |||||
| 706 | WB2X7708 | Pawl Locking |
|
- | |||||
| 706 | WB2X7746 | Locking Pawl |
|
- | |||||
| 707 | WB2X7709 | Plate Mounting |
|
- | |||||
| 708 | WB24X183 | Switch, Latch |
|
- | |||||
| 709 | WB24X197 | Solenoid |
|
- | |||||
| 710 | WB9X148 | Spring |
|
- | |||||
| 711 | WB2X6212 | Pivot Stud |
|
- | |||||
| 712 | WB2X1800 | Retainer Ring |
|
- | |||||
| 717 | WB2X6911 | Bracket Latch |
|
- | |||||
| 731 | WB2X7711 | Bracket Switch |
|
- | |||||
| 732 | WB24X5235 | Latch Release Switch |
|
- | |||||
| 740 | WB2X7226 | Clip Wire Black |
|
- | |||||
| 782 | WB17X5060 | Terminal Blk Asm (2 Pin) |
|
- | |||||
| 1522 | WB1X5629 | Speednut |
|
- | |||||
| 32767 | 39-4637 | Manual Users |
|
- | |||||
| 32767 | 31-0825 | Install Instructions |
|
- | |||||
| 32767 | 31-0824 | Install Instr (anti-tip) |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- | |||||
| 32767 | 31-0638 | Install Instructions |
|
- |
