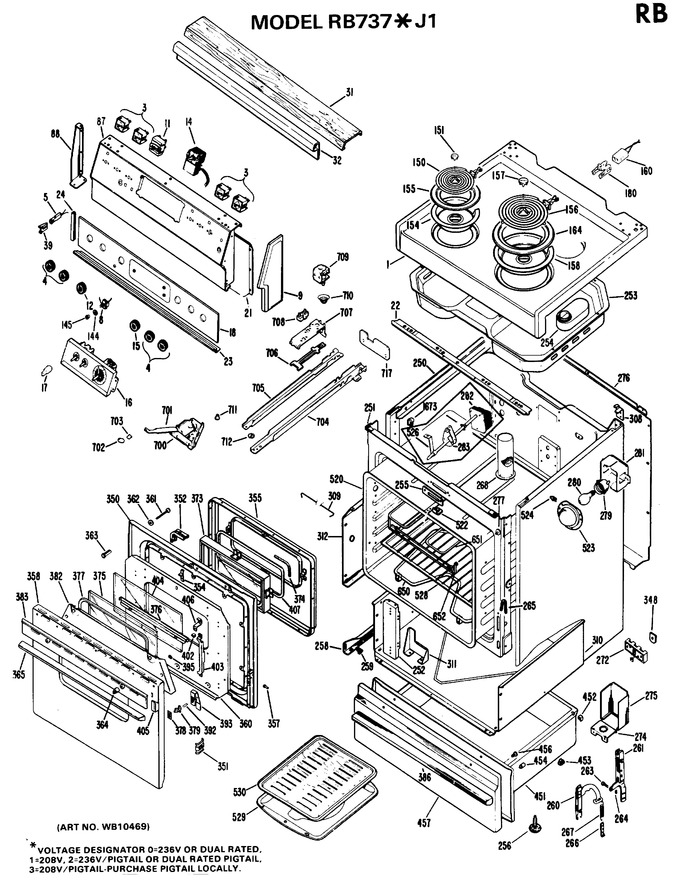

1 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5241 | Cooktop Wh |
|
- | |||||
| 1 | WB62X5244 | Cooktop Ha |
|
- | |||||
| 1 | WB62X5245 | Cooktop Ad |
|
- | |||||
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 4 | WB3X5482 | Knob Surface Unit |
|
- | |||||
| 5 | WB2X3468 | Neon Lamp 240v |
|
- | |||||
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 8 | WB24X5081 | Switch, Latch Release |
|
- | |||||
| 9 | WB7X5588 | End Cap Lh |
|
- | |||||
| 9 | WB7X5587 | End Cap Rh |
|
- | |||||
| 11 | WB22X5100 | Switch, Oven |
|
- | |||||
| 12 | WB3X422 | Knob Oven Switch |
|
- | |||||
| 14 | WB21X5320 | Thermostat, Dual (Replaces: WB24X176) |
|
- | |||||
| 14 | WB2X6274 | Sleeve Cap Tube |
|
- | |||||
| 15 | WB3X5544 | Knob Thermostat |
|
- | |||||
| 16 | WB19X122 | Timer |
|
- | |||||
| 17 | WB3X5699 | "timer-knob" |
|
- | |||||
| 18 | WB2X6240 | Pad |
|
- | |||||
| 18 | WB36X5491 | Crystal |
|
- | |||||
| 18 | WB2X3232 | Pad Crystal |
|
- | |||||
| 18 | WB2X5594 | Bumper |
|
- | |||||
| 21 | WB49X5146 | Cover Back |
|
- | |||||
| 22 | WB7X6775 | Deflector |
|
- | |||||
| 23 | WB7X5500 | Trim Lower |
|
- | |||||
| 24 | WB7X5502 | Trim Crystal |
|
- | |||||
| 31 | WB7X6719 | Cover Top |
|
- | |||||
| 32 | WB7X5589 | Trim Top |
|
- | |||||
| 39 | WB2X6239 | Bracket Lamp |
|
- | |||||
| 87 | WB61X5940 | Control Panel Ad |
|
- | |||||
| 87 | WB61X5939 | Control Panel Ha |
|
- | |||||
| 87 | WB61X5936 | Control Panel Wh |
|
- | |||||
| 88 | WB2X6225 | Post Lh |
|
- | |||||
| 88 | WB2X6224 | Post Rh |
|
- | |||||
| 88 | WB2X6226 | Pad Post |
|
- | |||||
| 144 | WB1X588 | Lockwasher Switch |
|
- | |||||
| 145 | WB1X5373 | Nut Trim Switch |
|
- | |||||
| 148 | WZ04X0349 | Screw |
|
- | |||||
| 150 | WB30X5071 | Surface Unit, 6" |
|
- | |||||
| 151 | WB32X52 | Center Trim 6" Unit |
|
- | |||||
| 154 | WB32X5051 | Pan 6" Porc. Gray |
|
- | |||||
| 155 | WB31X5015 | Trim Ring 6" |
|
- | |||||
| 156 | WB30X5072 | Surface Unit, 8" |
|
- | |||||
| 157 | WB32X51 | Center Trim 8" Unit |
|
- | |||||
| 158 | WB32X5052 | Pan 8" Porc. Gray |
|
- | |||||
| 160 | WB17X5094 | Receptacle Asm |
|
- | |||||
| 164 | WB31X5012 | Trim Ring 8" |
|
- | |||||
| 180 | WB2X7618 | Bracket Mounting |
|
- | |||||
| 250 | WB2X3229 | Barrier Bakeunit Opening |
|
- | |||||
| 251 | WB56X6054 | Frame Front |
|
- | |||||
| 252 | WB2X6768 | Panel Filler |
|
- | |||||
| 253 | WB49X5149 | Box Cooktop |
|
- | |||||
| 254 | WB38X5039 | Body Vent |
|
- | |||||
| 255 | WB7X552 | Trim Latch |
|
- | |||||
| 256 | WB1X5516 | Leveling Leg |
|
- | |||||
| 258 | WB39X5011 | Guide Drawer Rh |
|
- | |||||
| 258 | WB39X5010 | Guide Drawer Lh |
|
- | |||||
| 259 | WB2X831 | Slide Guide |
|
- | |||||
| 260 | WB10X5092 | Hinge Lever Asm Rh & Lh |
|
- | |||||
| 261 | WB10X5091 | Support Hinge Lh |
|
- | |||||
| 261 | WB10X5090 | Support Hinge Rh |
|
- | |||||
| 263 | WG02A00596 | Pin Hinge (Replaces: WB2X6195) |
|
$ 4.20 | |||||
| 264 | WB2X1082 | Pin Hinge Retainer |
|
- | |||||
| 265 | WB2X6342 | Guide Hinge Lever |
|
- | |||||
| 266 | WB2X2506 | Hook Door Spring |
|
- | |||||
| 267 | WB9X5073 | Spring Door |
|
- | |||||
| 268 | WB29X5012 | Smoke Elim & Tube Asm |
|
- | |||||
| 272 | WB17X5095 | Block Terminal Power |
|
- | |||||
| 274 | WB2X6191 | Bracket Knockout |
|
- | |||||
| 275 | WB2X6655 | Cover Terminal Block |
|
- | |||||
| 276 | WB49X5161 | Cover Back |
|
- | |||||
| 277 | WB24X105 | Switch, Oven Light |
|
- | |||||
| 279 | WB8X191 | Receptacle |
|
- | |||||
| 280 | WX12X1510 | Lamp 40w Appliance |
|
- | |||||
| 281 | WB2X3466 | Guard Lamp |
|
- | |||||
| 282 | WB24X5138 | Switch, Thermal (tls) |
|
- | |||||
| 283 | WB2X3164 | Plate |
|
- | |||||
| 283 | WB2X3163 | Gasket |
|
$ 22.50 | |||||
| 303 | WG02F04576 | Glass Oven Lamp (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 308 | WB2X6184 | Catch Cook Top Mtg Lh |
|
- | |||||
| 308 | WB2X6185 | Catch Cook Top Mtg Rh |
|
- | |||||
| 309 | WB2X6767 | Hook Wire |
|
- | |||||
| 310 | WB49X5156 | Guard Lower |
|
- | |||||
| 311 | WB2X6187 | Support Oven |
|
- | |||||
| 312 | WB49X5222 | Guard Upper Lh |
|
- | |||||
| 312 | WB49X5221 | Guard Upper Rh |
|
- | |||||
| 348 | WB2X646 | Plate Ground |
|
- | |||||
| 350 | WB55X5310 | Door Liner |
|
- | |||||
| 350 | WB2X6546 | Insulation Door |
|
- | |||||
| 351 | WB2X6270 | Spacer Door |
|
- | |||||
| 352 | WB2X6547 | Gasket Door |
|
- | |||||
| 354 | WB9X154 | Strike Spring |
|
- | |||||
| 355 | WB55X5311 | Panel Inner |
|
- | |||||
| 357 | WB1X558 | Screw |
|
- | |||||
| 358 | WB56X5747 | Door Panel Ad |
|
- | |||||
| 358 | WB56X5743 | Door Panel Wh |
|
- | |||||
| 358 | WB56X5746 | Door Panel Ha |
|
- | |||||
| 360 | WB55X5218 | Guard Insulation |
|
- | |||||
| 361 | WZ04X0298 | Screw Mtg Handle |
|
- | |||||
| 362 | WB1X119 | Washer Screw |
|
- | |||||
| 363 | WB2X6204 | Spacer Panel |
|
- | |||||
| 364 | WB2X6243 | Grommet Handle |
|
- | |||||
| 365 | WB15X147 | Handle |
|
- | |||||
| 373 | WB36X5244 | Window |
|
- | |||||
| 374 | WB2X3048 | Gasket Fiberglass |
|
- | |||||
| 375 | WB36X5478 | Crystal Window |
|
- | |||||
| 376 | WB2X2978 | Clip Crystal |
|
- | |||||
| 377 | WB7X1031 | Trim Crystal |
|
- | |||||
| 378 | WB7X5022 | Trim Plate Lower Oven |
|
- | |||||
| 379 | WB2X5410 | Cam |
|
- | |||||
| 382 | WB49X5173 | Baffle Window |
|
- | |||||
| 383 | WB7X1101 | Trim Handle |
|
- | |||||
| 386 | WB15X5121 | Handle |
|
- | |||||
| 392 | WB2X5217 | Cam Link |
|
- | |||||
| 393 | WB9X5083 | Cam Spring |
|
- | |||||
| 395 | WB2X3053 | Clip Mtg Door Trims |
|
- | |||||
| 402 | WB1X591 | Speednut |
|
- | |||||
| 403 | WB2X7188 | Bracket Window |
|
- | |||||
| 404 | WB36X5477 | Crystal Window |
|
- | |||||
| 405 | WB7X1102 | Trim Door Corner Rh |
|
- | |||||
| 405 | WB7X1103 | Trim Door Corner Lh |
|
- | |||||
| 406 | WB2X6238 | Bracket Door |
|
- | |||||
| 407 | WB7X6913 | Trim Crystal |
|
- | |||||
| 451 | WB58X5005 | Drawer Asm |
|
- | |||||
| 452 | WB2X840 | Slide Top |
|
- | |||||
| 453 | WB2X841 | Slide Bottom |
|
- | |||||
| 454 | WB2X6208 | Bumper |
|
- | |||||
| 456 | WZ04X0345 | Screw |
|
- | |||||
| 457 | WB56X5733 | Drawer Panel Wh |
|
- | |||||
| 457 | WB56X6018 | Drawer Panel Ds |
|
- | |||||
| 457 | WB56X6019 | Drawer Panel Sl |
|
- | |||||
| 457 | WB56X5736 | Drawer Panel Ha |
|
- | |||||
| 457 | WB56X5737 | Drawer Panel Ad |
|
- | |||||
| 459 | WB1X537 | Screw |
|
- | |||||
| 520 | WB2X6496 | Insulation |
|
- | |||||
| 520 | WB53X5108 | Oven Liner |
|
- | |||||
| 522 | WB2X6209 | Clip Trim |
|
- | |||||
| 523 | WG02F04576 | Lamp Cover Asm (Replaces: WB36X192) |
|
$ 20.65 | |||||
| 526 | WB2X3165 | Hanger |
|
- | |||||
| 528 | WB48X5044 | Rack Oven |
|
- | |||||
| 529 | WB49X5380 | Broil Pan |
|
- | |||||
| 530 | WB48X5002 | Broiler Pan Rack |
|
- | |||||
| 650 | UB592 | Bake Unit 208/240v (Replaces: WB44X5082) |
|
Immediately | $ 49.95 | ||||
| 651 | UT316 | Broil Unit 208/240v (Replaces: WB44X185) |
|
Immediately | $ 49.95 | ||||
| 652 | WB2X1452 | Support Broil |
|
- | |||||
| 700 | WB14X5035 | Latch |
|
- | |||||
| 701 | WB15X5133 | Handle Latch |
|
- | |||||
| 702 | WB3X5681 | Knob Latch |
|
- | |||||
| 703 | WG02A00753 | Retainer Knob (Replaces: WB2X2030) |
|
$ 4.20 | |||||
| 704 | WB2X3174 | Channel Latch |
|
- | |||||
| 705 | WB2X3175 | Channel Locking |
|
- | |||||
| 706 | WB2X3159 | Pawl Locking |
|
- | |||||
| 707 | WB2X3176 | Plate Mounting |
|
- | |||||
| 708 | WB24X183 | Switch, Latch |
|
- | |||||
| 709 | WB24X197 | Solenoid |
|
- | |||||
| 710 | WB9X148 | Spring |
|
- | |||||
| 711 | WB2X6212 | Pivot Stud |
|
- | |||||
| 712 | WB2X1800 | Retainer Ring |
|
- | |||||
| 717 | WB2X6911 | Bracket Latch |
|
- | |||||
| 740 | WB2X7226 | Clip Wire Black |
|
- | |||||
| 1201 | WS01A01150 | Screw (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 32767 | WZ06X0082 | Scr 8-18 B Hxw 3/8 S |
|
- | |||||
| 32767 | WB2X6496 | Insulation |
|
- | |||||
| 32767 | WB1X5552 | Washer |
|
- | |||||
| 32767 | WZ05X0132 | Scr 8-32 T Hxw 5/16 S |
|
- | |||||
| 32767 | WB1X5471 | Scr 8-18 Ab T 15/32 S |
|
- | |||||
| 32767 | WZ04X0413 | Screw |
|
- | |||||
| 32767 | WB2X1659 | Speednut |
|
- | |||||
| 32767 | WZ02X0546 | Scr 8-32 M Phr 1/2 S |
|
- | |||||
| 32767 | WB56X5996 | Door Panel Ds |
|
- | |||||
| 32767 | WZ06X0038 | Scr 8-18 Ab Hxw 5/8 S |
|
- | |||||
| 32767 | WB1X5370 | Screw & Washer Asm |
|
- | |||||
| 32767 | WB1X5497 | Scr 10-16 Ab Ihw 1/2 S |
|
- | |||||
| 32767 | WB62X5333 | Cooktop Sl |
|
- | |||||
| 32767 | WZ04X0396 | Scr 10-16 B Hxw 1/4 S |
|
- | |||||
| 32767 | 39-4557 | Manual Users |
|
- | |||||
| 32767 | WZ04X0306 | Scr 8-18 Ab Hx 1/2 S |
|
- | |||||
| 32767 | WB1X500 | Terminal Screw |
|
- | |||||
| 32767 | WZ04X0397 | Scr 6-32 C Flr 5/16 S |
|
- | |||||
| 32767 | WB1X438 | Screw & Washer Asm |
|
- | |||||
| 32767 | WZ04X0288 | Scr 10-16 Ab Hxw 1/2s #8 |
|
- | |||||
| 32767 | WB62X5332 | Cooktop Ds |
|
- | |||||
| 32767 | WZ04X0348 | Scr 10-16 B Sl 1-1/8 S |
|
- | |||||
| 32767 | WB56X5997 | Door Panel Sl |
|
- | |||||
| 32767 | WZ04X0291 | Scr 8-18 Ab Hxw 3/8 S |
|
- | |||||
| 32767 | 31-0476 | Pm Instruction Instl |
|
- | |||||
| 32767 | WZ04X0361 | Scr 8-18x5/8 |
|
- |
