SELECT A DIAGRAM

1 - Component Group


2 - Component Group


3 - Component Group


4 - Component Group

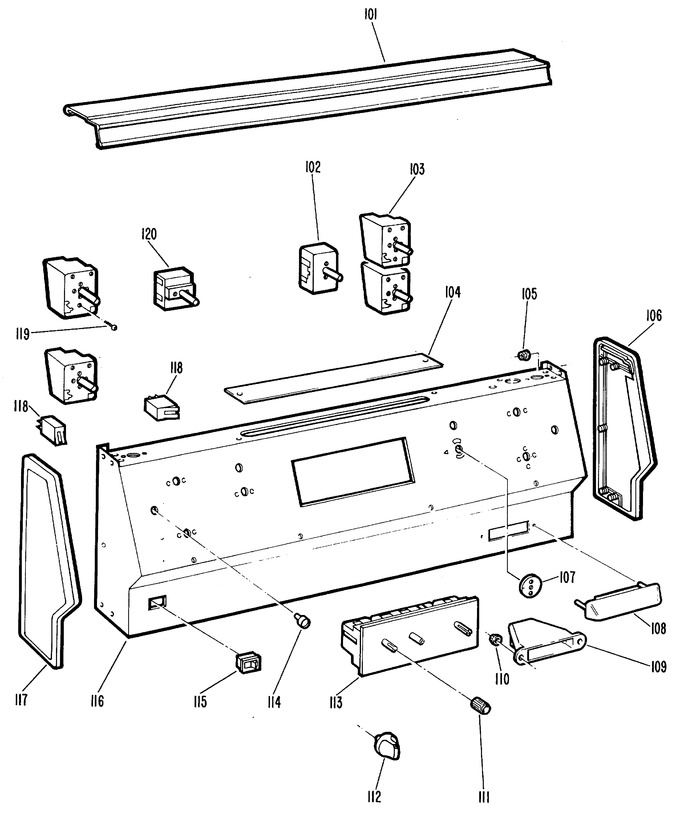

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	WB29X80		Housing		Appelez-nous	-
101	WB61X332		Cover-top		Appelez-nous	-
102	WB21X437		Infinite Switch-1500w		Appelez-nous	-
103	WB21X5258		Infinite Switch - 1500w		Appelez-nous	-
103	WB23X83		Switch, Sensi-temp		Appelez-nous	-
103	WB2X4899		Bracket, Sensi-switch		Appelez-nous	-
104	WB61X298		Cover, Fuse Opening		Appelez-nous	-
105	WB1X980		Palnut, Mounting,end Cap		Appelez-nous	-
106	WB61X302		End Cap - R.h.		Appelez-nous	-
107	WB21X438		Disc, Calibration		Appelez-nous	-
108	WB61X299		Cover, Vent		Appelez-nous	-
109	WB38X86		Top, Vent		Appelez-nous	-
110	WB1X981		Palnut,mounting,vent Top		Appelez-nous	-
111	WB3X704		Knob, Timer		Appelez-nous	-
112	WB3X722		Knob, Oven		Appelez-nous	-
112	WB3X720		Knob, Surface		Appelez-nous	-
112	WB3X721		Knob, Sensi		Appelez-nous	-
112	WB3X723		Knob, Selector		Appelez-nous	-
113	WB19X229		Timer		Appelez-nous	-
114	WB36X769		Lens, Pilot Light		Appelez-nous	-
115	WB24X5236		Switch, Oven Light		Appelez-nous	-
116	WB61X371		Panel,control-almond		Appelez-nous	-
116	WB61X373		Panel,control-white		Appelez-nous	-
117	WB61X303		End Cap - L.h.		Appelez-nous	-
118	WB25X89		Pilot Light - 250v		Appelez-nous	-
118	WB25X88		Pilot Light - 125v		Appelez-nous	-
119	WB1X5793		Screw		Appelez-nous	-
120	WB22X110		Switch, Selector		Appelez-nous	-
301	WB1X1000		Spindle		Appelez-nous	-
302	WB39X63		Wheel		Appelez-nous	-
303	WB1X999		Speednut		Appelez-nous	-
304	WB1X5787		Screw		Appelez-nous	-
305	WB1X5788		Screw		Appelez-nous	-
306	WB15X243		Handle		Appelez-nous	-
306	WB15X242		Handle		Appelez-nous	-
307	WB56X1828		Panel - White		Appelez-nous	-
307	WB56X1829		Panel - Almond		Appelez-nous	-
308	WB58X5012		Body, Drawer		Appelez-nous	-
9999	39-4609		Manual Users		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
