1 - Control Panel & Cooktop

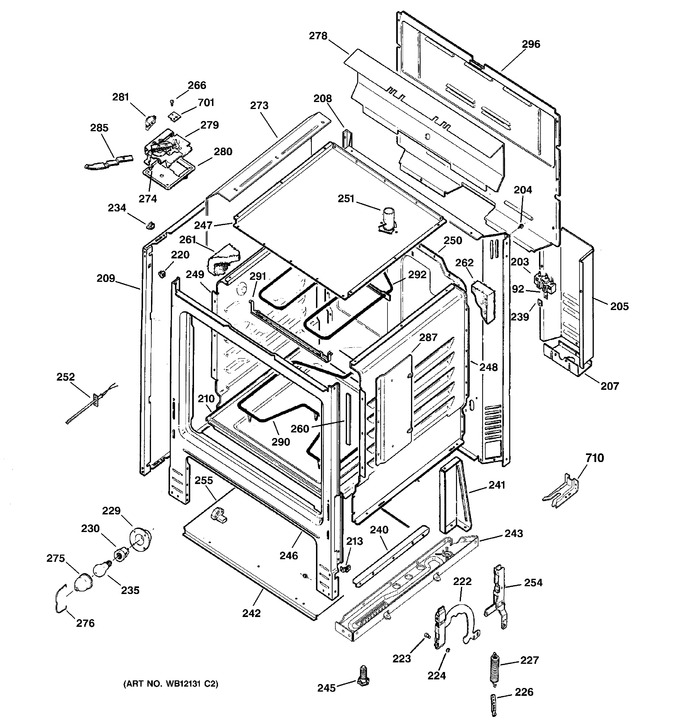

2 - Body Parts
3 - Door & Drawer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 92 | WB02T10030 | Ground Strap |
|
- | |||||
| 203 | WB17X5123 | Block Terminal |
|
- | |||||
| 204 | WS01A00654 | Screw (blk) (Replaces: WB1K42) |
|
$ 14.29 | |||||
| 204 | WZ04X0345 | Screw 8-18x5/8 Hxw |
|
- | |||||
| 205 | WB34K10029 | Guard Terminal |
|
- | |||||
| 207 | WB02K10029 | Bracket Mtg Terminal |
|
- | |||||
| 208 | WB63K10005 | Range Back |
|
- | |||||
| 209 | WB63K10013 | Panel Side (wh) |
|
- | |||||
| 210 | WB63K10006 | Oven Bottom |
|
- | |||||
| 213 | WS01A01039 | Nut Speed (Replaces: WB1K3) |
|
$ 3.57 | |||||
| 220 | WB2K8 | Grommet |
|
- | |||||
| 222 | WB10K12 | Hinge Asm Guide |
|
- | |||||
| 223 | WG02A00596 | Pin Hinge Door (Replaces: WB2X6195) |
|
$ 4.20 | |||||
| 224 | WB2X1082 | Ring Retaining |
|
- | |||||
| 226 | WS01A01246 | Hook Door Spring (Replaces: WB09K10001) |
|
$ 6.09 | |||||
| 227 | WB9K5 | Spring Door |
|
- | |||||
| 229 | WS01A00625 | Housing Receptacle (Replaces: WB8K1) |
|
$ 8.22 | |||||
| 230 | WS01F02438 | Push-in Recepticle (Replaces: WB08T10004) |
|
Immediately | $ 10.54 | ||||
| 234 | WB2K66 | Guide Support Rgtp |
|
- | |||||
| 235 | STD372401 | Oven Lamp |
|
- | |||||
| 239 | WB2X646 | Plate-ground |
|
- | |||||
| 239 | WB1X5968 | Nut 10-32 Nickle Plate |
|
- | |||||
| 240 | WS01L00759 | Rail Drawer (Replaces: WB39K16) |
|
Immediately | $ 11.44 | ||||
| 241 | NOT STOCKED | Support Oven Rear |
|
- | |||||
| 242 | WB63K10009 | Guard Insulation Bottom |
|
- | |||||
| 243 | WG02L02342 | Base Support Right (Replaces: WB63K10028) |
|
$ 34.02 | |||||
| 243 | WB63K10027 | Base Support Left |
|
- | |||||
| 245 | WG02A00475 | Leg Leveler (Replaces: WB02X10521) |
|
Immediately | $ 5.72 | ||||
| 246 | WB63K10019 | Front Frame Asm |
|
- | |||||
| 247 | WB63K10021 | Oven Top |
|
- | |||||
| 248 | WB63K10010 | Oven Side Right |
|
- | |||||
| 249 | WB63K10011 | Oven Side Left |
|
- | |||||
| 250 | WB53K10007 | Oven Back |
|
- | |||||
| 251 | WB38K10002 | Tube-vent |
|
- | |||||
| 252 | WS01F02431 | Sensor-oven (Replaces: WB23X5340) |
|
Immediately | $ 27.18 | ||||
| 254 | WG02A00803 | Support Rivet Lft (Replaces: WB10K14) |
|
$ 21.16 | |||||
| 254 | WS01A01073 | Screw Mtg Hinge (torx) (Replaces: WB1K53) |
|
$ 3.57 | |||||
| 254 | WG02A00803 | Support Rivet Rt (Replaces: WB10K13) |
|
$ 21.16 | |||||
| 255 | WS01A00942 | Drawer Support (Replaces: WB2K43) |
|
Immediately | $ 4.07 | ||||
| 260 | WB32K2 | Gasket Oven Seal Lg |
|
- | |||||
| 261 | WB35K10011 | Insulation Oven Wrap |
|
- | |||||
| 262 | WB35K10022 | Insulation Oven Back |
|
- | |||||
| 266 | WB1K12 | Screw (hdl Ltch) |
|
- | |||||
| 266 | WZ05X0124 | Screw Switch 5/8 S |
|
- | |||||
| 273 | WB53K11 | Guard Insul. Oven Right |
|
- | |||||
| 273 | WB53K12 | Guard Insulation Left |
|
- | |||||
| 274 | WS01A01078 | Screw Latch (Replaces: WB1K44) |
|
Immediately | $ 3.57 | ||||
| 275 | WB8K5 | Glass Oven Lamp |
|
- | |||||
| 276 | WS01A01025 | Bail (Replaces: WB2K27) |
|
$ 3.57 | |||||
| 278 | NOT_STOCKED | Divider Wiring |
|
- | |||||
| 279 | WB02K10019 | Latch-(thermo) |
|
- | |||||
| 280 | WB2K29 | Shield Latch |
|
- | |||||
| 281 | WB24K10013 | Switch Latch |
|
- | |||||
| 285 | WB15K10020 | Handle-latch |
|
- | |||||
| 287 | NOT-STOCKED | Guard Radiation |
|
- | |||||
| 290 | WS01F11296 | Bake Element (Replaces: WB44K10005) |
|
Immediately | $ 68.72 | ||||
| 291 | WS01A00816 | Support Broil (Replaces: WB02K10028) |
|
$ 16.61 | |||||
| 292 | WS01F11295 | Broil Element (Replaces: WB44K10002) |
|
Immediately | $ 65.56 | ||||
| 296 | WB34K10031 | Cover Back |
|
- | |||||
| 701 | WB2K39 | Shield Switch |
|
- | |||||
| 710 | WS01A00671 | Bracket Anti-tip Asm (Replaces: WB02K10020) |
|
Immediately | $ 13.75 |
