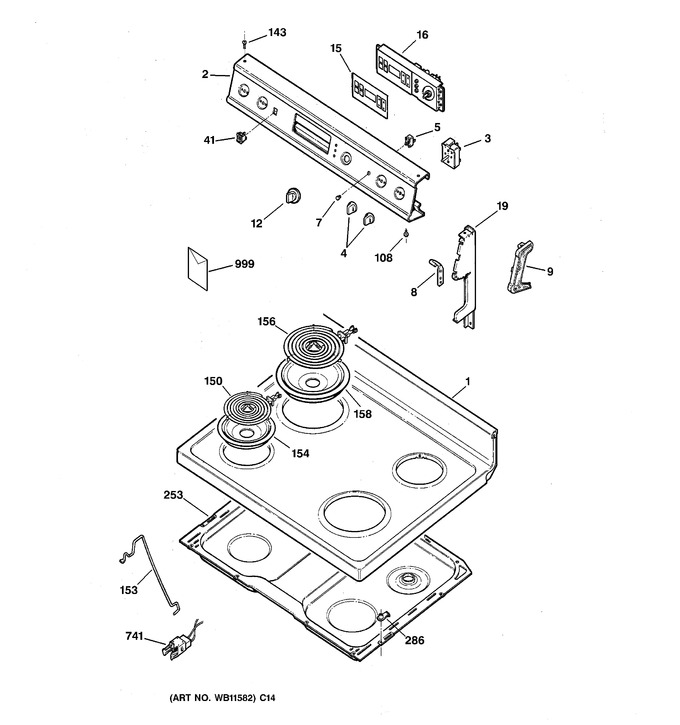

1 - Control Panel & Cooktop
2 - Body Parts
3 - Door & Drawer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5451 | Weld Asm Rangetop Wh |
|
- | |||||
| 2 | WB36X10112 | Trim & Bracket Asm |
|
- | |||||
| 3 | WB23X5092 | Sw Inf. Control 6" Brnr |
|
- | |||||
| 3 | WB32X5095 | Sw Inf. Control 8" Brnr |
|
- | |||||
| 4 | WB3X5792 | Knob Surface Unit |
|
- | |||||
| 5 | WB2X7697 | Lamp Pilot 125v |
|
- | |||||
| 7 | WB25X5054 | Indicator Light Lens |
|
- | |||||
| 8 | WB02X10485 | Pin Hinge Rh |
|
- | |||||
| 8 | WB02X10486 | Pin Hinge Lh |
|
- | |||||
| 9 | WB7X7137 | End Cap Left Bk |
|
- | |||||
| 9 | WB7X7136 | End Cap Right Bk |
|
- | |||||
| 12 | WB03X10058 | Knob |
|
- | |||||
| 15 | WB27X10245 | Faceplate |
|
- | |||||
| 16 | WB2X8268 | Nut |
|
- | |||||
| 16 | WB02T10008 | Cam Dual |
|
- | |||||
| 16 | WB9X5121 | Spring Detent |
|
- | |||||
| 16 | WB27X10216 | T08c Control |
|
- | |||||
| 19 | WB07X10154 | Plate End Lh Bk |
|
- | |||||
| 19 | WB07X10153 | Plate End Rh Bk |
|
- | |||||
| 41 | WB24X5290 | Switch Rocker Bk |
|
- | |||||
| 108 | WB1X5904 | Scr 8-18 Ba Por 3/4 Sn |
|
- | |||||
| 143 | WB1X5860 | Screw Bk |
|
- | |||||
| 150 | WB30T10027 | Surface Unit Asm 6" |
|
- | |||||
| 153 | WB2X8114 | Rod Support |
|
- | |||||
| 154 | WB31T10014 | Burner Bowl 6" |
|
- | |||||
| 156 | WB30T10033 | Surface Unit Asm 8" |
|
- | |||||
| 158 | WG02L01430 | Burner Bowl 8" (Replaces: WB31T10015) |
|
Immediately | $ 27.03 | ||||
| 253 | WB49X5566 | Box Cooktop |
|
- | |||||
| 286 | WB2X8107 | Strike Cooktop |
|
- | |||||
| 741 | WG02A00459 | Clip Receptacle (Replaces: WB2X8228) |
|
Immediately | $ 52.48 | ||||
| 999 | 49-8927 | Pm Manual Use & Care |
|
- | |||||
| 999 | 31-20745 | Pm Manual Mini |
|
- |
