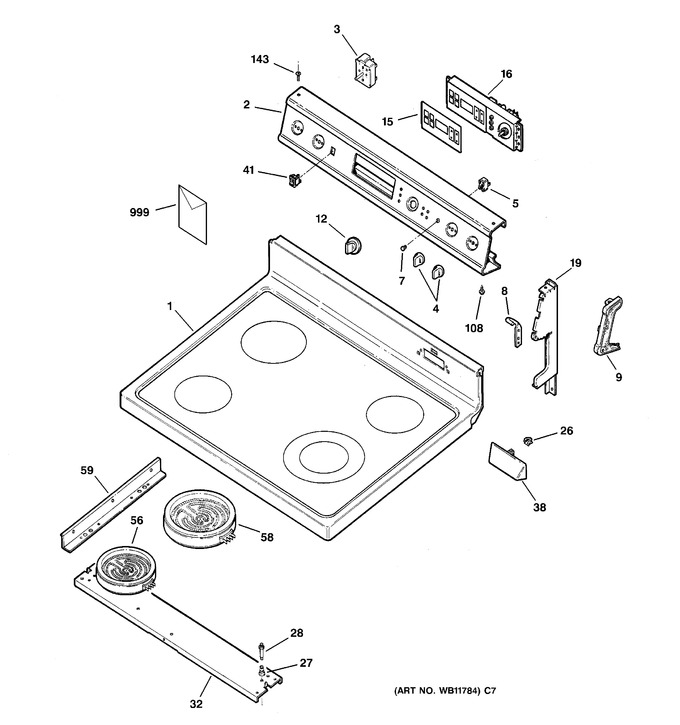

SELECT A DIAGRAM

1 - Control Panel & Cooktop


2 - Body Parts


3 - Door & Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB62X10020		Rangetop & Glass Asm		Appelez-nous	-
2	WB36X10111		Trim & Bracket Asm		Appelez-nous	-
3	WB23X5099		Sw. Inf. Control 8" Brnr		Appelez-nous	-
3	WB23X5092		Sw Inf. Control 6" Brnr		Appelez-nous	-
4	WB3X5792		Knob Surface Unit		Appelez-nous	-
5	WB2X7697		Lamp Pilot 125v		Appelez-nous	-
7	WB25X5054		Indicator Light Lens		Appelez-nous	-
8	WB02X10486		Pin Hinge Lh		Appelez-nous	-
8	WB02X10485		Pin Hinge Rh		Appelez-nous	-
9	WB7X7136		End Cap Right Bk		Appelez-nous	-
9	WB7X7137		End Cap Left Bk		Appelez-nous	-
12	WB03X10058		Knob		Appelez-nous	-
15	WB27X10245		Faceplate		Appelez-nous	-
16	WB02T10008		Cam Dual		Appelez-nous	-
16	WB2X8268		Nut		Appelez-nous	-
16	WB27X10216		T08c Control		Appelez-nous	-
16	WB9X5121		Spring Detent		Appelez-nous	-
19	PLATE END RH BK		Plate End Rh Bk		Appelez-nous	-
19	WB07X10154		Plate End Lh Bk		Appelez-nous	-
26	WB2X8312		Clip Vent Trim		Appelez-nous	-
27	WB9X5119		Spring Heater Mtg		Appelez-nous	-
28	WB2X8377		Stud Heater Mount		Appelez-nous	-
32	WB2X8556		Support Radiant Heater		Appelez-nous	-
38	WB7X7217		Vent Trim Clip Asm Bk		Appelez-nous	-
41	WB24X5290		Switch Rocker Bk		Appelez-nous	-
56	WB30K5033		Haliant Element-1500w		Appelez-nous	-
58	WB30K5031		Haliant Element 2000w		Appelez-nous	-
59	WB2X8321		Brace Body		Appelez-nous	-
108	WB1X5904		Scr 8-18 Ba Por 3/4 Sn		Appelez-nous	-
143	WB1X5860		Screw Bk		Appelez-nous	-
530	WB48X5107		Grid Broiler Pan		Appelez-nous	-
999	WB64X93		Glass Cleaner		Appelez-nous	-
999	31-20742		Pm Manual Mini		Appelez-nous	-
999	49-8939		Pm Instruction Install		Appelez-nous	-
999	49-8927		Pm Manual Use & Care		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
