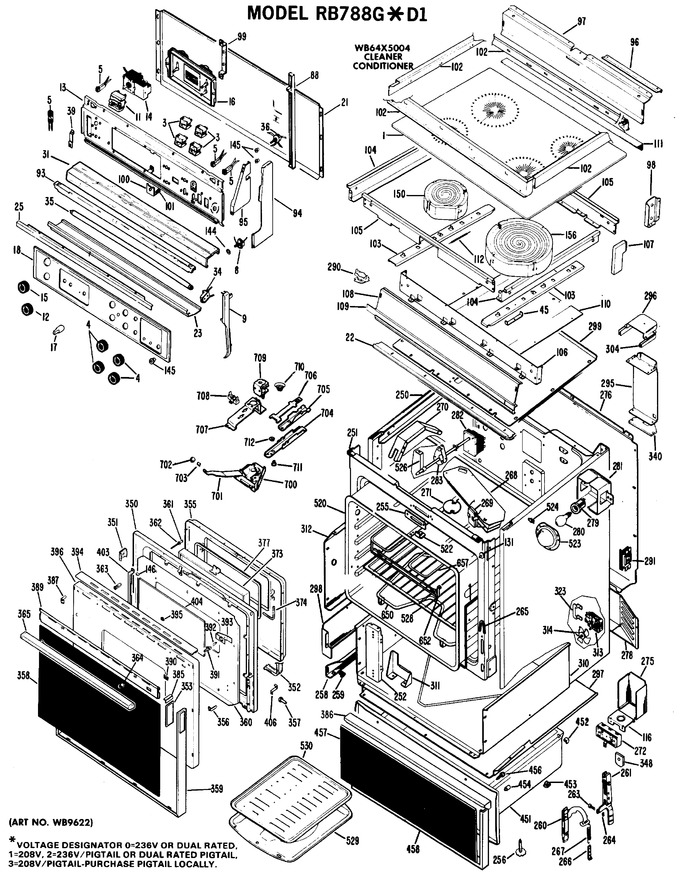

1 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5210 | Cooking Panel |
|
- | |||||
| 3 | WB21X5197 | Switch, Inf Surface Unit |
|
- | |||||
| 3 | WB21X230 | Switch, Inf Surface Unit |
|
- | |||||
| 4 | WB3X5561 | Knob S.u. |
|
- | |||||
| 5 | WB2X3468 | Neon Lamp 240v |
|
- | |||||
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 8 | WB24X5081 | Switch, Latch Release |
|
- | |||||
| 9 | WB7X1092 | End Cap-lh |
|
- | |||||
| 9 | WB7X1091 | End Cap-rh |
|
- | |||||
| 11 | WB22X5090 | Switch, Oven |
|
- | |||||
| 12 | WB3X422 | Knob Oven Switch |
|
- | |||||
| 13 | WB2X2989 | Bracket Instrument |
|
- | |||||
| 14 | WB2X6274 | Sleeve Cap Tube |
|
- | |||||
| 14 | WB21X5320 | Thermostat, Dual (Replaces: WB24X176) |
|
- | |||||
| 15 | WB3X5569 | Knob Thermostat |
|
- | |||||
| 16 | WB19M160CP | Timer Digital (Replaces: WB19X5231) |
|
- | |||||
| 17 | WB3X459 | Knob Timer |
|
- | |||||
| 18 | WB36X5487 | Crystal |
|
- | |||||
| 18 | WB2X3232 | Pad |
|
- | |||||
| 21 | WB49X337 | Cover Back |
|
- | |||||
| 22 | WB7X6779 | Deflector |
|
- | |||||
| 23 | WB7X1093 | Trim Lower |
|
- | |||||
| 25 | WB7X976 | Trim Crystal |
|
- | |||||
| 31 | WB7X6721 | Hood Lamp |
|
- | |||||
| 34 | WB8X188 | Lampholder |
|
- | |||||
| 36 | WB24X5048 | Switch, "f" Lamp |
|
- | |||||
| 39 | WB2X2979 | Clip Lamp |
|
- | |||||
| 45 | WB2X6337 | Spring Mtg. Support |
|
- | |||||
| 48 | WB2X3235 | Clip Mtg. Frame To Can |
|
- | |||||
| 88 | WB2X6498 | Post Asm Rh |
|
- | |||||
| 88 | WB2X6499 | Post Asm Lh |
|
- | |||||
| 93 | WB2X2992 | Bracket Hood |
|
- | |||||
| 94 | WB7X969 | Trim Side Rh |
|
- | |||||
| 94 | WB7X970 | Trim Side Lh |
|
- | |||||
| 95 | WB2X2984 | Bracket End Cap Rh |
|
- | |||||
| 95 | WB2X2985 | Bracket End Cap Lh |
|
- | |||||
| 96 | WB49X298 | Guard Wire |
|
- | |||||
| 97 | WB56X5764 | Panel Backsplasher Cf |
|
- | |||||
| 97 | WB56X5763 | Panel Backsplasher Wh |
|
- | |||||
| 97 | WB56X5767 | Panel Backsplasher Ad |
|
- | |||||
| 97 | WB56X5766 | Panel Backsplasher Ha |
|
- | |||||
| 97 | WB56X5765 | Panel Backsplasher Fa |
|
- | |||||
| 98 | WB2X3225 | Support Backsplasher-rh |
|
- | |||||
| 98 | WB2X3226 | Support Backsplasher-lh |
|
- | |||||
| 99 | WB2X3231 | Bracket Timer |
|
- | |||||
| 99 | WB1X540 | Nut |
|
- | |||||
| 100 | WB2X2990 | Bracket Trim |
|
- | |||||
| 101 | WB1X542 | Speednut |
|
- | |||||
| 102 | WB7X5652 | Frame Front |
|
- | |||||
| 102 | WB7X5653 | Frame Rear |
|
- | |||||
| 102 | WB7X5651 | Frame Side Lh |
|
- | |||||
| 102 | WB7X5650 | Frame Side Rh |
|
- | |||||
| 103 | WB2X3233 | Support Unit |
|
- | |||||
| 104 | WB49X343 | Can Side Rh - Lh |
|
- | |||||
| 105 | WB49X344 | Can Front - Back |
|
- | |||||
| 106 | WB49X345 | Support Front |
|
- | |||||
| 107 | WB7X1096 | End Cap-lh |
|
- | |||||
| 107 | WB7X1095 | End Cap-rh |
|
- | |||||
| 108 | WB7X5593 | Trim Front |
|
- | |||||
| 109 | WB7X5594 | Insert Trim |
|
- | |||||
| 110 | WB49X5167 | Cover Bottom |
|
- | |||||
| 111 | WB7X5654 | Trim Cooktop Rear |
|
- | |||||
| 112 | WB18X5056 | Lead Wire Heating Unit |
|
- | |||||
| 144 | WB1X588 | Lockwasher Switch |
|
- | |||||
| 145 | WB1X5373 | Nut-knurled Trim |
|
- | |||||
| 146 | WB1X591 | Speednut |
|
- | |||||
| 150 | WB30X5064 | 371d719g005 |
|
- | |||||
| 156 | WB30X5063 | 371d876g005 |
|
- | |||||
| 156 | WB30X5065 | Unit Large |
|
- | |||||
| 250 | WB2X3229 | Barrier Bakeunit Opening |
|
- | |||||
| 251 | WB56X5861 | Frame Front |
|
- | |||||
| 251 | WB2X3240 | Spacer |
|
- | |||||
| 252 | WB2X6768 | Panel Filler |
|
- | |||||
| 255 | WB7X552 | Trim Latch |
|
- | |||||
| 256 | WB1X450 | Leg Leveling |
|
- | |||||
| 258 | WB39X5010 | Guide Drawer Lh |
|
- | |||||
| 258 | WB39X5011 | Guide Drawer Rh |
|
- | |||||
| 259 | WB2X831 | Slide Guide |
|
- | |||||
| 260 | WB10X5092 | Hinge Lever Asm Rh Lh |
|
- | |||||
| 261 | WB10X5091 | Support Hinge Lh |
|
- | |||||
| 261 | WB10X5090 | Support Hinge Rh |
|
- | |||||
| 263 | WG02A00596 | Pin Hinge Door (Replaces: WB2X6195) |
|
$ 4.20 | |||||
| 264 | WB2X1082 | Ring Retaining |
|
- | |||||
| 265 | WB2X6342 | Guide Hinge Lever |
|
- | |||||
| 266 | WB2X2506 | Hook Door Spring |
|
- | |||||
| 267 | WB9X5076 | Spring Door |
|
- | |||||
| 268 | WB29X50 | Smoke Eliminator Assembl |
|
- | |||||
| 269 | WB2X3388 | Terminal Block |
|
- | |||||
| 270 | WB49X5093 | Baffle Hinge |
|
- | |||||
| 271 | WB2X1626 | Baffle |
|
- | |||||
| 272 | WB17X168 | Terminal Block-power |
|
- | |||||
| 274 | WB2X6191 | Bracket Knockout |
|
- | |||||
| 275 | WB2X6655 | Cover Terminal Block |
|
- | |||||
| 276 | WB49X5161 | Cover Back |
|
- | |||||
| 277 | WB24X105 | Switch |
|
- | |||||
| 278 | WB2X6200 | Cover Fan |
|
- | |||||
| 279 | WB8X191 | Receptacle |
|
- | |||||
| 281 | WB2X3466 | Guard Lamp |
|
- | |||||
| 282 | WB24X5138 | Switch, Thermal (tls) |
|
- | |||||
| 283 | WB2X3163 | Gasket-tls |
|
$ 22.50 | |||||
| 283 | WB2X3164 | Plate |
|
- | |||||
| 290 | WB24X208 | Switch Latch Release |
|
- | |||||
| 291 | WB2X1546 | Ballast |
|
- | |||||
| 295 | WB38X73 | Vent Assembly |
|
- | |||||
| 296 | WB49X342 | Cover Duct |
|
- | |||||
| 297 | WB49X5094 | Cover Plenum |
|
- | |||||
| 298 | WB2X6188 | Air Cover Rh |
|
- | |||||
| 298 | WB2X6189 | Air Cover Lh |
|
- | |||||
| 299 | WB63X239 | Guard Top Insulation |
|
- | |||||
| 304 | WB2X3260 | Gasket |
|
- | |||||
| 310 | WB49X5156 | Guard Lower |
|
- | |||||
| 311 | WB2X6187 | Support Oven |
|
- | |||||
| 312 | WB49X5222 | Guard Upper Lh |
|
- | |||||
| 312 | WB49X5221 | Guard Upper Rh |
|
- | |||||
| 313 | WB26X5052 | Motor, Fan |
|
- | |||||
| 314 | WB2X2285 | Blade Fan |
|
- | |||||
| 323 | WB2X6190 | Bracket Fan |
|
- | |||||
| 340 | WB2X3223 | Seal Vent |
|
- | |||||
| 348 | WB2X646 | Plate Ground |
|
- | |||||
| 350 | WB2X6546 | Insulation Door |
|
- | |||||
| 350 | WB55X5243 | Door Liner |
|
- | |||||
| 351 | WB2X6270 | Spacer Door |
|
- | |||||
| 352 | WB2X6547 | Gasket Door |
|
- | |||||
| 353 | WB2X6573 | Pad Trim |
|
- | |||||
| 354 | WB9X154 | Strike Spring |
|
- | |||||
| 355 | WB55X5244 | Panel Inner |
|
- | |||||
| 356 | WB2X6574 | Clip-trim Door |
|
- | |||||
| 357 | WB1X558 | Screw Nail Point |
|
- | |||||
| 358 | WB36X5379 | Glass Black |
|
- | |||||
| 359 | WB7X5625 | Trim Door |
|
- | |||||
| 360 | WB55X5218 | Guard Insulation |
|
- | |||||
| 361 | WZ04X0298 | Screw Mtg Handle |
|
- | |||||
| 362 | WB1X119 | Washer Contoured |
|
- | |||||
| 363 | WB2X6204 | Spacer Panel |
|
- | |||||
| 364 | WB2X6243 | Grommet Handle |
|
- | |||||
| 365 | WB15X5130 | Handle |
|
- | |||||
| 373 | WB36X5244 | Window |
|
- | |||||
| 374 | WB2X6232 | Gasket Crystal |
|
- | |||||
| 385 | WB7X5631 | Cap Trim |
|
- | |||||
| 386 | WB15X5124 | Handle Drawer |
|
- | |||||
| 387 | WB2X6575 | Clip Trim |
|
- | |||||
| 389 | WB7X5623 | Trim Door |
|
- | |||||
| 390 | WB7X5624 | Trim Toggle |
|
- | |||||
| 391 | WB2X3052 | Toggle |
|
- | |||||
| 392 | WB2X5217 | Cam Link |
|
- | |||||
| 393 | WB9X5083 | Cam Spring |
|
- | |||||
| 394 | WB7X5630 | Trim Top |
|
- | |||||
| 395 | WB2X3053 | Clip Mtg Door Trims |
|
- | |||||
| 396 | WB56X5678 | Panel Door |
|
- | |||||
| 396 | WB2X7189 | Reflector Panel |
|
- | |||||
| 403 | WB2X7188 | Bracket Window |
|
- | |||||
| 404 | WB36X5477 | Crystal Window |
|
- | |||||
| 406 | WB2X6238 | Bracket Door |
|
- | |||||
| 407 | WB7X722 | Trim Crystal |
|
- | |||||
| 451 | WB58X5005 | Drawer Asm |
|
- | |||||
| 451 | WB2X6740 | Bracket Drawer |
|
- | |||||
| 452 | WB2X840 | Slide Top |
|
- | |||||
| 453 | WB2X841 | Slide Bottom |
|
- | |||||
| 454 | WB2X6208 | Bumper |
|
- | |||||
| 456 | WZ04X0209 | Handle Screw |
|
- | |||||
| 457 | WB56X5799 | Drawer Panel Blk |
|
- | |||||
| 458 | WB7X5659 | Trim Drawer |
|
- | |||||
| 520 | WB53X5070 | Oven Liner |
|
- | |||||
| 520 | WB2X6496 | Insulation |
|
- | |||||
| 522 | WB2X6209 | Trim Clip |
|
- | |||||
| 523 | WG02F04576 | Lamp Cover Asm (Replaces: WB36X192) |
|
$ 20.65 | |||||
| 524 | WB2X1659 | Speednut |
|
- | |||||
| 526 | WB2X3165 | Hanger-tls |
|
- | |||||
| 527 | WB2X3253 | Mullion Unit Clip |
|
- | |||||
| 527 | WB44X186 | Mullion Unit |
|
- | |||||
| 528 | WB48X5044 | Oven Rack |
|
- | |||||
| 529 | WB49X88 | Broil Pan |
|
- | |||||
| 530 | WB48X5002 | Broiler Pan Rack |
|
- | |||||
| 650 | UB592 | Bake Unit 208/240v (Replaces: WB44X5082) |
|
Immediately | $ 49.95 | ||||
| 652 | WB2X1452 | Support Broil |
|
- | |||||
| 657 | UT316 | Broil Unit (Replaces: WB44X185) |
|
Immediately | $ 49.95 | ||||
| 700 | WB14X5035 | Latch |
|
- | |||||
| 701 | WB15X5137 | Handle Latch |
|
- | |||||
| 702 | WB3X322 | Knob Latch |
|
- | |||||
| 703 | WG02A00753 | Retainer Knob (Replaces: WB2X2030) |
|
$ 4.20 | |||||
| 704 | WB2X3157 | Channel Latch |
|
- | |||||
| 705 | WB2X3158 | Channel Locking |
|
- | |||||
| 706 | WB2X3159 | Locking Pawl Asm |
|
- | |||||
| 707 | WB2X3160 | Plate-mounting |
|
- | |||||
| 708 | WB24X183 | Switch, Latch |
|
- | |||||
| 709 | WB24X5097 | Solenoid |
|
- | |||||
| 710 | WB9X148 | Spring-plunger |
|
- | |||||
| 711 | WB2X6212 | Pivot Stud |
|
- | |||||
| 712 | WB2X1800 | Retainer Ring |
|
- | |||||
| 1645 | WB2X7006 | Clamp Harness |
|
- | |||||
| 9999 | 39-4482 | Manual Users |
|
- |
