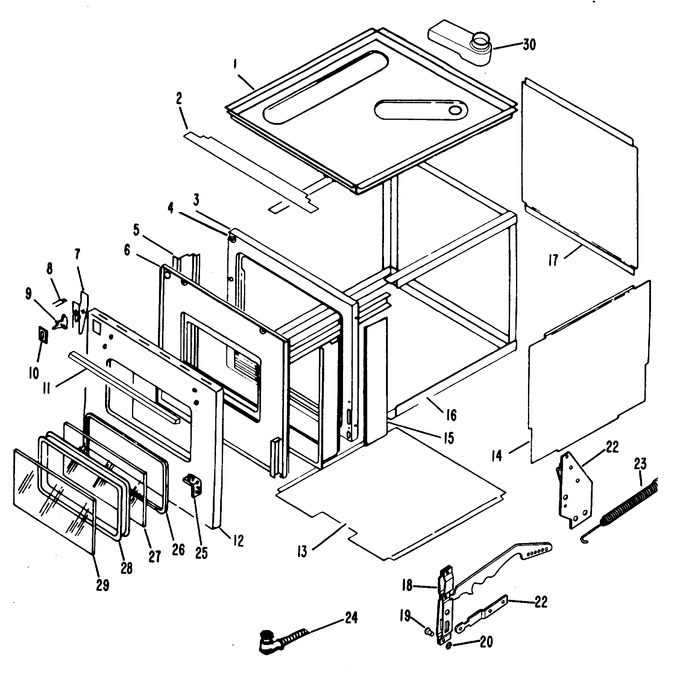

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB63X5189 | Top Insulation Panel |
|
- | |||||
| 2 | WB1X5455 | Screw, Mtg. Trim |
|
- | |||||
| 2 | WB7X5353 | Trim - Cooktop |
|
- | |||||
| 2 | WB1X5454 | Washer, Mtg. Trim |
|
- | |||||
| 3 | WB63X5034 | Oven Front |
|
- | |||||
| 4 | WB2X5828 | Sleeving At Terminals |
|
- | |||||
| 4 | WB24X105 | Switch For Oven Light |
|
- | |||||
| 5 | WB1X5078 | Retaining Ring For Screw |
|
- | |||||
| 5 | WB7X5136 | Front Trim |
|
- | |||||
| 5 | WB1X5105 | Phil. Truss Hd. Enamel Reaming Nickel |
|
- | |||||
| 5 | WB1X5141 | Chrome Machine Screw |
|
- | |||||
| 5 | WB2X5584 | Bracket (to Cooktop) |
|
- | |||||
| 6 | WB1X5136 | Screw - Incl. Washers No. 10-24x1/2" |
|
- | |||||
| 6 | WB55X5120 | Inner Door - Window |
|
- | |||||
| 7 | WB2X5218 | Peek Light Spring |
|
- | |||||
| 8 | WB2X5217 | Toggle Link |
|
- | |||||
| 9 | WB2X5410 | Peek Light Toggle |
|
- | |||||
| 10 | WB7X5022 | Toggle Trim Plate |
|
- | |||||
| 11 | WB1X5439 | Handle Screw |
|
- | |||||
| 11 | WB1X5065 | Speednut On Handle Support |
|
- | |||||
| 11 | WB15X5115 | Handle |
|
- | |||||
| 11 | WB2X6036 | Handle Support |
|
- | |||||
| 11 | WB2X1404 | Washer, Handle |
|
- | |||||
| 12 | WB56X5622 | Outer Door Panel-wh-window |
|
- | |||||
| 12 | WB56X5624 | Outer Door Panel-av-window |
|
- | |||||
| 12 | WB56X5625 | Outer Door Panel-ht-window |
|
- | |||||
| 12 | WB2X5804 | Door Insulation |
|
- | |||||
| 12 | WB56X5623 | Outer Door Panel-dc-window |
|
- | |||||
| 13 | WB63X5030 | Bottom Cover |
|
- | |||||
| 14 | WB63X5007 | Side Cover-rh & Lh |
|
- | |||||
| 15 | WB7X5133 | Side Panel - Rh |
|
- | |||||
| 15 | WB7X5134 | Side Panel - Lh |
|
- | |||||
| 16 | WB63X5005 | Frame Assembly |
|
- | |||||
| 17 | WB63X5032 | Back Cover |
|
- | |||||
| 18 | WB10X5109 | Door Guide Asm.-lh & Rh |
|
- | |||||
| 19 | WB2X5682 | Hinge Pin For Service 3/16" Dia. |
|
- | |||||
| 20 | WB2X5681 | Retaining Ring For Hinge Pin |
|
- | |||||
| 21 | WB10X5022 | Door Support - Lh & Rh |
|
- | |||||
| 22 | WB10X5041 | Hinge Support Asm. - Rh |
|
- | |||||
| 22 | WB10X5042 | Hinge Support Asm. - Lh |
|
- | |||||
| 22 | WB1X5181 | Spec. Screw-terminal Hd. 1/4-28x3/8" |
|
- | |||||
| 23 | WB9X5018 | Door Spring |
|
- | |||||
| 25 | WB2X5505 | Window Bracket |
|
- | |||||
| 26 | WB2X5500 | Window Gasket |
|
- | |||||
| 27 | WB36X5113 | Inner Window |
|
- | |||||
| 28 | WB2X5506 | Window Frame |
|
- | |||||
| 29 | WB36X5271 | Outer Window - Patterned |
|
- | |||||
| 30 | WB38X5043 | Oven Vent |
|
- |
