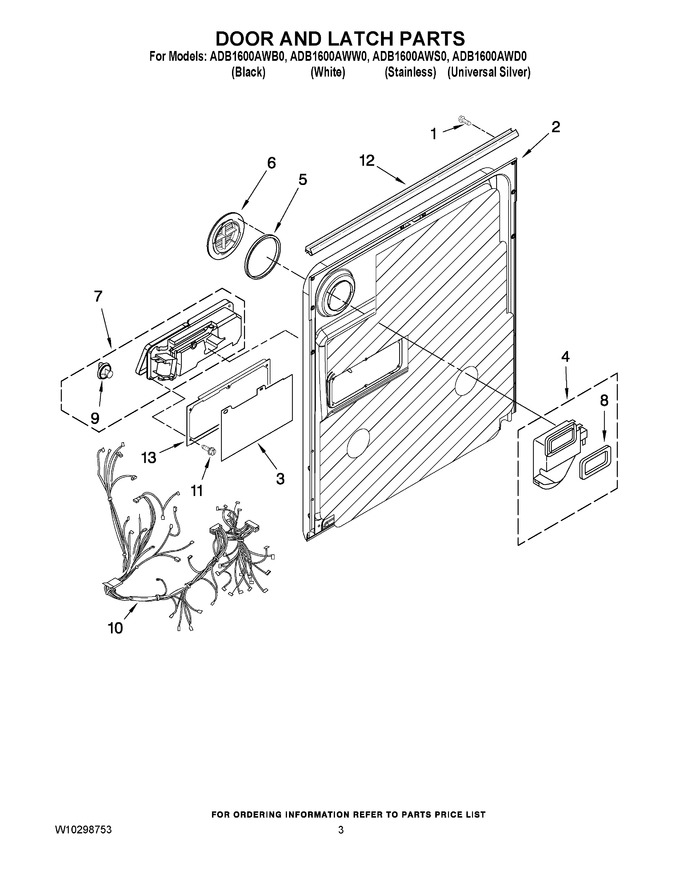

03 - Door And Latch Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10348409		Screw, Door   (Replaces: 3369051)			Immediately	$ 7.76
2	WP8269311		Inner Door Mastic Assembly   (Replaces: 8269311)				$ 271.05
3	WP8531865		Shield, Dispenser   (Replaces: 8531865)				$ 107.76
4	WP8558980		Vent Assembly   (Replaces: 8558980)				$ 113.49
5	WP8269259		Gasket, Vent   (Replaces: 8269259)			Immediately	$ 63.50
6	8542566		Deflector, Vent (also Order Item 5)				$ 45.08
7	WPW10224430		Dispenser, Assembly   (Replaces: W10254206)			Immediately	$ 204.79
8	WP8269296		Seal, Front   (Replaces: 8269296)			Immediately	$ 179.21
9	WP8533380		Cap, Rinse Aid   (Replaces: 8533380)				$ 26.58
10	W10224458		Wiring Harness Main		Appelez-nous	-
11	WPW10177098		Screw   (Replaces: W10177098)			Immediately	$ 7.64
12	WP8269296		Seal, Console/door   (Replaces: 8269296)			Immediately	$ 179.21
13	WPW10462232		Bracket, Dispenser   (Replaces: 8535637)				$ 36.04
