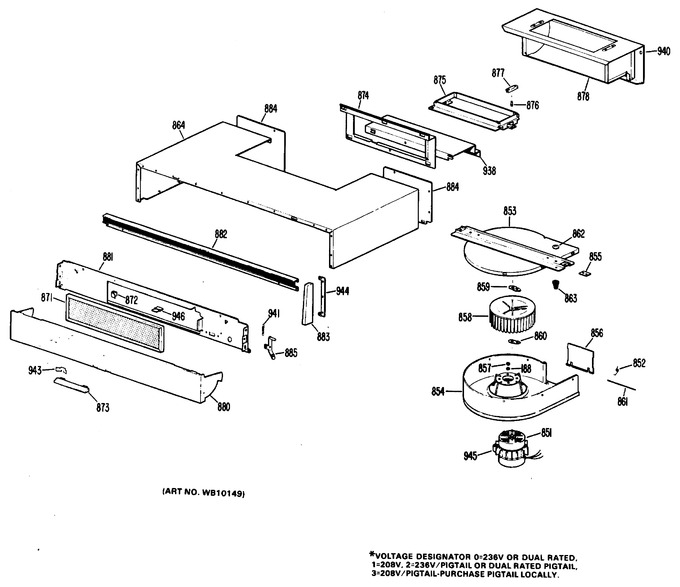

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 138 | WB5X164 | Socket Fluorescent Lamp |
|
- | |||||
| 188 | WZ10X0114 | Lockwasher |
|
- | |||||
| 258 | WB39X5010 | Guide Drawer Lh |
|
- | |||||
| 258 | WB39X5011 | Guide Drawer Rh |
|
- | |||||
| 710 | WB9X148 | Spring-plunger |
|
- | |||||
| 851 | WB26X27 | Motor Blower |
|
- | |||||
| 852 | WB9X72 | Spring Damper |
|
- | |||||
| 853 | WB49X216 | Housing Blower Top |
|
- | |||||
| 854 | WB49X217 | Housing Blower Bottom |
|
- | |||||
| 855 | WB2X3239 | Strap |
|
- | |||||
| 856 | WB2X2235 | Damper |
|
- | |||||
| 857 | WZ07X0030 | Nut |
|
- | |||||
| 858 | WB2X3456 | Wheel Blower |
|
- | |||||
| 859 | WB2X3457 | Clamp |
|
- | |||||
| 860 | WB2X3458 | Clamp |
|
- | |||||
| 861 | WB2X1581 | Wire |
|
- | |||||
| 862 | WB2X2015 | Retainer |
|
- | |||||
| 863 | WB9X73 | Spring Blower Mount |
|
- | |||||
| 864 | WB62X1503 | Hood Body Ad |
|
- | |||||
| 864 | WB62X5324 | Hood Body Ds |
|
- | |||||
| 864 | WB62X1499 | Hood Body Wh |
|
- | |||||
| 864 | WB62X5325 | Hood Body Sl |
|
- | |||||
| 864 | WB62X1502 | Hood Body Ha |
|
- | |||||
| 871 | WB2X6731 | Filter Grease |
|
- | |||||
| 872 | WB2X1583 | Hood Filter Clip |
|
- | |||||
| 873 | WB15X5138 | Hood Panel Handle |
|
- | |||||
| 874 | WB49X218 | Cover Inner |
|
- | |||||
| 875 | WB49X182 | Exhaust Asm |
|
- | |||||
| 876 | WB1X426 | Stud Ball |
|
- | |||||
| 877 | WB2X2016 | Receiver Stud |
|
- | |||||
| 878 | WB49X183 | Guide Air |
|
- | |||||
| 880 | WB56X5896 | Panel Hood |
|
- | |||||
| 881 | WB56X6040 | Plate Filter |
|
- | |||||
| 882 | WB7X6793 | Hood Trim |
|
- | |||||
| 883 | WB7X6792 | End Cap-lt |
|
- | |||||
| 883 | WB7X6791 | End Cap-rt |
|
- | |||||
| 884 | WB2X2017 | Back Cover |
|
- | |||||
| 885 | WB2X7216 | Spring Pin Asm |
|
- | |||||
| 907 | WB2X1666 | Filter |
|
- | |||||
| 938 | WB49X5190 | Support Slide |
|
- | |||||
| 940 | WB49X184 | Cover Asm |
|
- | |||||
| 941 | WB9X5099 | Spring |
|
- | |||||
| 943 | WB2X7217 | Retainer Clip |
|
- | |||||
| 944 | WB2X3461 | Mounting Bracket |
|
- | |||||
| 945 | WB2X3146 | Clip Motor Fins |
|
- | |||||
| 945 | WB2X3145 | Fins Motor |
|
- | |||||
| 946 | WB2X6734 | Filter Clip |
|
- | |||||
| 1260 | WB1X593 | Screw - Door Asm (4 Per) |
|
- | |||||
| 1453 | WB48X5062 | Shelf Oven |
|
- | |||||
| 9999 | 39-4519 | Manual Users |
|
- | |||||
| 9999 | 49-4662 | Cookbook |
|
- |
