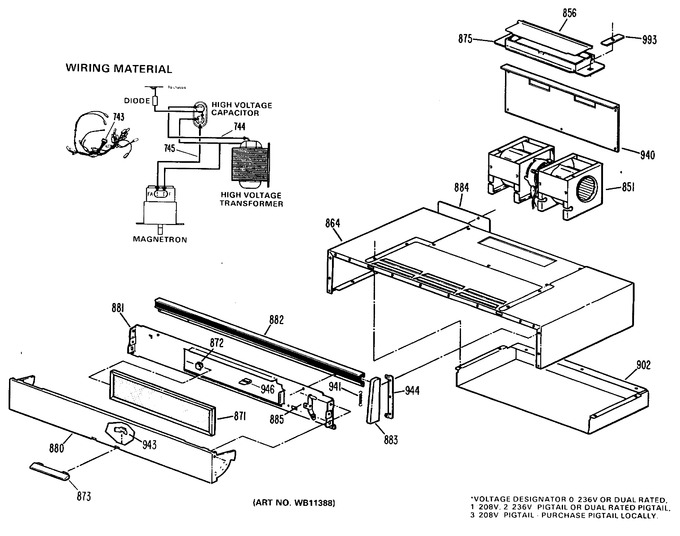

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 35 | OBT LOCAL | "f" Lamp F20t12/cw |
|
- | |||||
| 148 | WB1X5763 | Screw |
|
- | |||||
| 157 | WB32X51 | Center Trim 8" Unit |
|
- | |||||
| 180 | WB2X7618 | Bracket Mtg Receptacle |
|
- | |||||
| 250 | NOT AVAIL | Body |
|
- | |||||
| 268 | WB29X5019 | Smoke Elim & Tube Asm |
|
- | |||||
| 277 | WB24X105 | Switch, Oven Light |
|
- | |||||
| 352 | WB2X6547 | Gasket Door |
|
- | |||||
| 357 | WB1X558 | Screw |
|
- | |||||
| 363 | WB2X7616 | Spacer Panel |
|
- | |||||
| 440 | WB1X5736 | Speednut |
|
- | |||||
| 442 | WB1X5743 | Speednut |
|
- | |||||
| 459 | WB1X537 | Screw |
|
- | |||||
| 461 | WB1X593 | Screw Mtg Clip |
|
- | |||||
| 704 | WB2X7707 | Channel Latch |
|
- | |||||
| 708 | WB24X183 | Switch, Latch |
|
- | |||||
| 709 | WB24X197 | Solenoid |
|
- | |||||
| 710 | WB9X148 | Spring |
|
- | |||||
| 712 | WB2X1800 | Retainer Ring |
|
- | |||||
| 714 | WB2X3475 | Bracket Switch |
|
- | |||||
| 717 | WB2X6911 | Bracket Latch |
|
- | |||||
| 731 | WB2X7711 | Bracket Switch |
|
- | |||||
| 739 | WB8X5097 | Receptacle, Fustat |
|
- | |||||
| 741 | OBT LOCAL | Fustat 15amp Type S |
|
- | |||||
| 743 | WB18X5098 | Wire Harness |
|
- | |||||
| 744 | WB18X5096 | Lead Wire |
|
- | |||||
| 745 | WB18X5097 | Lead Wire |
|
- | |||||
| 750 | WB2X7726 | Bracket |
|
- | |||||
| 755 | WB2X7753 | Bracket |
|
- | |||||
| 779 | WB2X7552 | Spacer |
|
- | |||||
| 779 | WB20X5053 | Receptacle Probe |
|
- | |||||
| 779 | WB1X5588 | Nut Receptacle |
|
- | |||||
| 794 | WB2X7770 | Spacer |
|
- | |||||
| 851 | WB26X5089 | Blower Motor |
|
- | |||||
| 856 | WB2X7764 | Damper |
|
- | |||||
| 864 | WB56X7007 | Hood Body Ad |
|
- | |||||
| 871 | WB2X7758 | Filter Grease |
|
- | |||||
| 872 | WB2X1583 | Clip Hood Filter |
|
- | |||||
| 873 | WB15X5138 | Handle Hood Panel |
|
- | |||||
| 875 | WB49X5935 | Exhaust Asm |
|
- | |||||
| 880 | WB56X5896 | Panel Hood |
|
- | |||||
| 881 | WB49X5390 | Plate Filter |
|
- | |||||
| 882 | WB7X6793 | Trim Hood |
|
- | |||||
| 883 | WB7X6792 | End Cap Lh |
|
- | |||||
| 883 | WB7X6791 | End Cap Rh |
|
- | |||||
| 884 | WB2X2017 | Cover Back |
|
- | |||||
| 885 | WB2X7216 | Spring & Pin Asm |
|
- | |||||
| 891 | WR62X43 | Capacitor |
|
- | |||||
| 902 | WB49X5470 | Plenum Air |
|
- | |||||
| 940 | WB2X7900 | Cover Housing |
|
- | |||||
| 941 | WB9X5099 | Spring |
|
- | |||||
| 943 | WB2X7217 | Clip Retainer |
|
- | |||||
| 944 | WB2X3461 | Bracket Mounting |
|
- | |||||
| 946 | WB2X6734 | Clip Filter |
|
- | |||||
| 966 | WB2X7234 | Cover Grille |
|
- | |||||
| 993 | WB2X7765 | Plate |
|
- | |||||
| 1201 | WS01A01150 | Screw (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 1801 | WB15X5164 | Handle Door |
|
- | |||||
| 1803 | WB7X6926 | Trim Door |
|
- | |||||
| 32767 | 49-4706 | Cookbook |
|
- | |||||
| 32767 | 31-0877 | Install Instr |
|
- | |||||
| 32767 | 39-4595 | Manual Users |
|
- |
