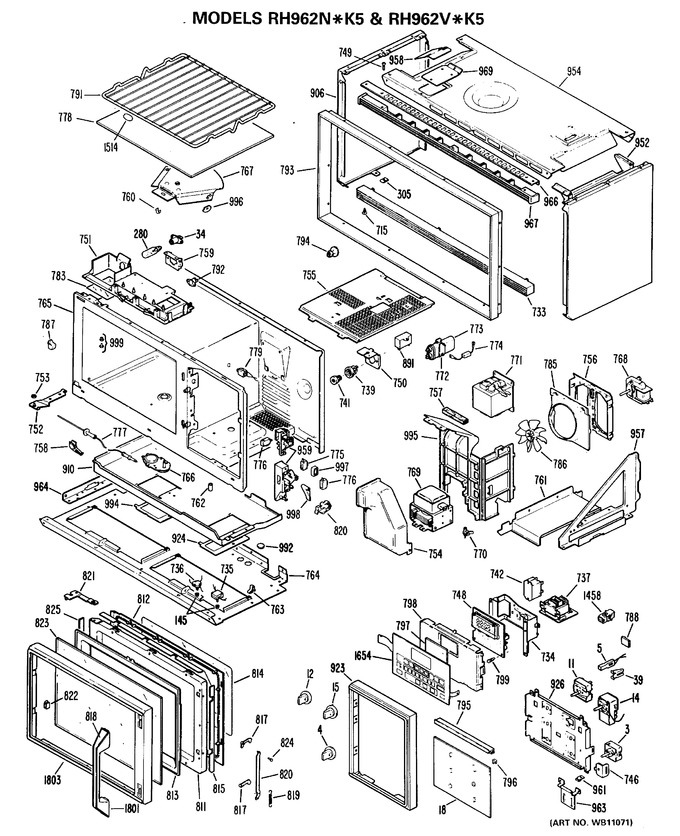

SELECT A DIAGRAM
1 - Component Group
2 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5500-200 | Unknown (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 4 | WB3X5697 | Unknown |
|
- | |||||
| 5 | WB2X3468 | Unknown |
|
- | |||||
| 5 | WB2X1608 | Unknown |
|
$ 31.65 | |||||
| 11 | WB22X5103 | Unknown |
|
- | |||||
| 12 | WB3X5627 | Unknown |
|
- | |||||
| 14 | WB24X184 | Unknown |
|
- | |||||
| 14 | WB2X6274 | Unknown |
|
- | |||||
| 14 | WB2X6494 | Unknown |
|
- | |||||
| 14 | WB2X6937 | Unknown |
|
- | |||||
| 15 | WB3X5696 | Unknown |
|
- | |||||
| 18 | WB36X5618 | Unknown |
|
- | |||||
| 34 | WB8X5096 | Unknown |
|
- | |||||
| 39 | WB2X6239 | Unknown |
|
- | |||||
| 145 | WB1X246 | Unknown |
|
- | |||||
| 280 | WX12X1510 | Unknown |
|
- | |||||
| 280 | WB2X7560 | Unknown |
|
- | |||||
| 305 | WB2X6653 | Unknown |
|
- | |||||
| 715 | WB1X5751 | Unknown |
|
- | |||||
| 733 | WB2X7750 | Unknown |
|
- | |||||
| 733 | WB7X7006 | Unknown |
|
- | |||||
| 734 | WB2X7755 | Unknown |
|
- | |||||
| 735 | WB24X5093 | Unknown |
|
- | |||||
| 736 | WB24X5245 | Unknown |
|
- | |||||
| 737 | WB2X7766 | Unknown |
|
- | |||||
| 737 | WB27X5407 | Unknown |
|
- | |||||
| 739 | WB8X5097 | Unknown |
|
- | |||||
| 741 | OBT LOCAL | Unknown |
|
- | |||||
| 742 | WB27X5405 | Unknown |
|
- | |||||
| 746 | WB2X7777 | Unknown |
|
- | |||||
| 748 | WB27X5399 | Unknown |
|
- | |||||
| 749 | WB1X5578 | Unknown |
|
- | |||||
| 750 | WB2X7726 | Unknown |
|
- | |||||
| 751 | WB2X7727 | Unknown |
|
- | |||||
| 752 | WB10X5184 | Unknown |
|
- | |||||
| 753 | WB2X7103 | Unknown |
|
- | |||||
| 754 | WB2X7635 | Unknown |
|
- | |||||
| 755 | WB2X7753 | Unknown |
|
- | |||||
| 756 | WB2X7733 | Unknown |
|
- | |||||
| 757 | WB2X7734 | Unknown |
|
- | |||||
| 758 | WB2X7660 | Unknown |
|
- | |||||
| 759 | WB2X7751 | Unknown |
|
- | |||||
| 760 | WB2X7625 | Unknown |
|
- | |||||
| 761 | WB2X7752 | Unknown |
|
- | |||||
| 762 | WB2X7761 | Unknown |
|
- | |||||
| 763 | WB2X1665 | Unknown |
|
- | |||||
| 764 | WB49X5392 | Unknown |
|
- | |||||
| 765 | WB53X5130 | Unknown |
|
- | |||||
| 766 | WB26X5080 | Unknown |
|
- | |||||
| 767 | WB2X7626 | Unknown |
|
- | |||||
| 768 | WB26X5082 | Unknown |
|
- | |||||
| 769 | 10QBP0234 | Unknown (Replaces: WB27X5410) |
|
$ 114.50 | |||||
| 770 | WB27X5371 | Unknown |
|
- | |||||
| 771 | WB27X5447 | Unknown |
|
- | |||||
| 772 | WB2X7731 | Unknown |
|
- | |||||
| 773 | WB27X254 | Unknown |
|
- | |||||
| 774 | WB27X5333 | Unknown |
|
- | |||||
| 775 | WB24X353 | Unknown |
|
- | |||||
| 776 | WG02F01561 | Unknown (Replaces: WB24X352) |
|
Immediately | $ 25.41 | ||||
| 778 | WB48X5084 | Unknown |
|
- | |||||
| 779 | WB2X7552 | Unknown |
|
- | |||||
| 779 | WB20X5053 | Unknown |
|
- | |||||
| 779 | WB1X5588 | Unknown |
|
- | |||||
| 783 | WB2X7730 | Unknown |
|
- | |||||
| 785 | WB2X7728 | Unknown |
|
- | |||||
| 786 | WB2X4114 | Unknown |
|
- | |||||
| 787 | WB2X7640 | Unknown |
|
- | |||||
| 788 | WB17X5079 | Unknown |
|
- | |||||
| 788 | WB17X5064 | Unknown |
|
- | |||||
| 791 | WB48X5088 | Unknown |
|
- | |||||
| 792 | WB27X5381 | Unknown |
|
- | |||||
| 793 | WB7X6952 | Unknown |
|
- | |||||
| 794 | WB2X7770 | Unknown |
|
- | |||||
| 795 | WB7X6951 | Unknown |
|
- | |||||
| 796 | WB2X6654 | Unknown |
|
- | |||||
| 797 | WB36X5604 | Unknown |
|
- | |||||
| 798 | WB2X7754 | Unknown |
|
- | |||||
| 799 | WB2X7769 | Unknown |
|
- | |||||
| 811 | WB55X5285 | Unknown |
|
- | |||||
| 812 | WB55X5286 | Unknown |
|
- | |||||
| 813 | WB55X5287 | Unknown |
|
- | |||||
| 814 | WB2X7647 | Unknown |
|
- | |||||
| 815 | WB2X7643 | Unknown |
|
- | |||||
| 815 | WB2X7642 | Unknown |
|
- | |||||
| 817 | WB10X5185 | Unknown |
|
- | |||||
| 818 | WB7X6929 | Unknown |
|
- | |||||
| 819 | WB9X5112 | Unknown |
|
- | |||||
| 820 | WB10X5186 | Unknown |
|
- | |||||
| 821 | WB10X5179 | Unknown |
|
- | |||||
| 822 | WB2X7735 | Unknown |
|
- | |||||
| 823 | WB36X5603 | Unknown |
|
- | |||||
| 824 | WB2X7559 | Unknown |
|
- | |||||
| 825 | WB2X7857 | Unknown |
|
- | |||||
| 891 | WR62X43 | Unknown |
|
- | |||||
| 906 | WB56X6035 | Unknown |
|
- | |||||
| 906 | WB56X6037 | Unknown |
|
- | |||||
| 906 | WB2X6930 | Unknown |
|
- | |||||
| 906 | WB56X6030 | Unknown |
|
- | |||||
| 906 | WB56X6031 | Unknown |
|
- | |||||
| 906 | WB56X6032 | Unknown |
|
- | |||||
| 906 | WB56X6036 | Unknown |
|
- | |||||
| 910 | WB49X5382 | Unknown |
|
- | |||||
| 923 | WB7X6949 | Unknown |
|
- | |||||
| 924 | WB49X5387 | Unknown |
|
- | |||||
| 926 | WB2X7778 | Unknown |
|
- | |||||
| 952 | WB49X5292 | Unknown |
|
- | |||||
| 954 | WB56X6077 | Unknown |
|
- | |||||
| 957 | WB2X7231 | Unknown |
|
- | |||||
| 958 | WB49X5393 | Unknown |
|
- | |||||
| 959 | WB10X5174 | Unknown |
|
- | |||||
| 959 | WB10X5165 | Unknown |
|
- | |||||
| 961 | WB1X5750 | Unknown |
|
- | |||||
| 963 | WB2X7729 | Unknown |
|
- | |||||
| 964 | WB2X7230 | Unknown |
|
- | |||||
| 966 | WB2X7234 | Unknown |
|
- | |||||
| 967 | WB7X7005 | Unknown |
|
- | |||||
| 969 | WB49X5394 | Unknown |
|
- | |||||
| 992 | WB2X7762 | Unknown |
|
- | |||||
| 994 | WB2X7723 | Unknown |
|
- | |||||
| 995 | WB2X7724 | Unknown |
|
- | |||||
| 996 | WB2X7624 | Unknown |
|
- | |||||
| 997 | WB2X7580 | Unknown |
|
- | |||||
| 998 | WB2X7628 | Unknown |
|
- | |||||
| 999 | WB2X7544 | Unknown |
|
- | |||||
| 1458 | WB17X5073 | Unknown |
|
- | |||||
| 1514 | WB2X7510 | Unknown |
|
- | |||||
| 1654 | WB27X5413 | Unknown |
|
- | |||||
| 1801 | WB15X5164 | Unknown |
|
- | |||||
| 1803 | WB7X6926 | Unknown |
|
- |
