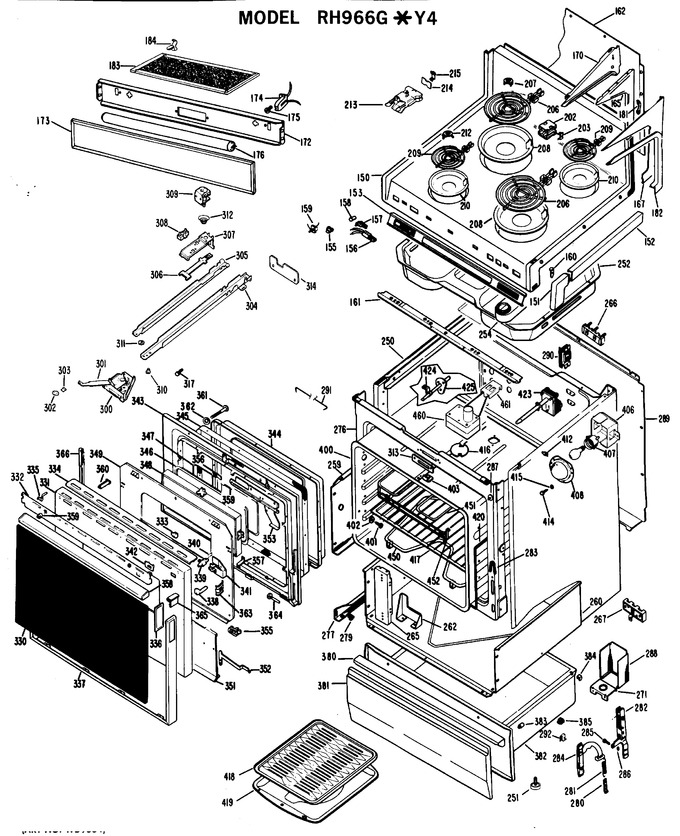

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB56X5825 | Case Top Wh |
|
- | |||||
| 1 | WB56X5829 | Case Top Ad |
|
- | |||||
| 1 | WZ04X0336 | Screw Mt. Top |
|
- | |||||
| 1 | WB56X5826 | Case Top Cf |
|
- | |||||
| 1 | WB56X5827 | Case Top Fa |
|
- | |||||
| 1 | WB56X5828 | Case Top Ha |
|
- | |||||
| 2 | WB2X6621 | Bracket Mt. Top & Frame |
|
- | |||||
| 2 | WB2X6653 | Speednut - Mt. Bracket |
|
- | |||||
| 3 | WB56X5795 | Case Side Rh - Fa |
|
- | |||||
| 3 | WB56X5794 | Case Side Rh - Cf |
|
- | |||||
| 3 | WB56X5793 | Case Side Rh - Wh |
|
- | |||||
| 3 | WB56X5696 | Case Side Lh - Ad |
|
- | |||||
| 3 | WB56X5695 | Case Side Lh - Ha |
|
- | |||||
| 3 | WB56X5694 | Case Side Lh - Fa |
|
- | |||||
| 3 | WB56X5693 | Case Side Lh - Cf |
|
- | |||||
| 3 | WB2X6642 | Angle Brace |
|
- | |||||
| 3 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 3 | WB56X5797 | Case Side Rh - Ad |
|
- | |||||
| 3 | WB56X5796 | Case Side Rh - Ha |
|
- | |||||
| 3 | WB1X365 | Speednut |
|
- | |||||
| 3 | WB56X5692 | Case Side Lh - Wh |
|
- | |||||
| 4 | WB56X5684 | Back Cover |
|
- | |||||
| 4 | WZ04X0231 | Screw Mt. Cover |
|
- | |||||
| 5 | WZ04X0384 | Screw Mt. Block |
|
- | |||||
| 5 | WB17X167 | Terminal Block |
|
- | |||||
| 6 | WZ04X0231 | Screw, Mt. Slide |
|
- | |||||
| 6 | WB2X6834 | Slide, Oven |
|
- | |||||
| 7 | WB55X5231 | Bottom, Case |
|
- | |||||
| 7 | WB2X6621 | Brkt. Mt. Bottom & Frame |
|
- | |||||
| 9 | WB2X6842 | Brace Oven |
|
- | |||||
| 10 | WB2X6620 | Post, Lh |
|
- | |||||
| 10 | WB2X6619 | Post, Rh |
|
- | |||||
| 11 | WB2X3001 | Spacer, Post |
|
- | |||||
| 11 | WZ04X0231 | Screw, Post, Spacer, Oven Brace |
|
- | |||||
| 12 | WZ04X0231 | Screw Guard |
|
- | |||||
| 12 | WB2X6610 | Guard - Rh |
|
- | |||||
| 13 | WZ04X0231 | Screw, Guard |
|
- | |||||
| 13 | WB2X6611 | Guard - Lh |
|
- | |||||
| 14 | WB56X5785 | Frame Assembly |
|
- | |||||
| 15 | WZ04X0322 | Screw, Frame And Trim |
|
- | |||||
| 15 | WB56X5681 | Trim, Frame |
|
- | |||||
| 16 | WB24X5102 | Door Switch |
|
- | |||||
| 16 | WB2X6557 | Barrier |
|
- | |||||
| 17 | WZ05X0234 | Screw Mt. Switch |
|
- | |||||
| 18 | WS01A02255 | Screw, Mt. Bracket (Replaces: WB1X536) |
|
$ 3.97 | |||||
| 18 | WB2X6697 | Bracket, Door Switch |
|
- | |||||
| 19 | WB10X5122 | Lever, Door |
|
- | |||||
| 20 | WZ05X0139 | Screw, Mt. Cover To Guide |
|
- | |||||
| 20 | WB10X5117 | Cover, Guide |
|
- | |||||
| 20 | WB10X5123 | Guide, Lever |
|
- | |||||
| 21 | WB1X438 | Screw Mt. Hinge |
|
- | |||||
| 21 | WB10X5110 | Hinge Arm. Upper |
|
- | |||||
| 22 | WB2X6857 | Pad (cut To Size) |
|
- | |||||
| 22 | WB2X6853 | Baffle |
|
- | |||||
| 23 | WB2X6855 | Shield |
|
- | |||||
| 24 | WB8X5084 | Socket, Lamp |
|
- | |||||
| 25 | WX12X85 | (ge25t8dc 120v, 25w) |
|
- | |||||
| 26 | WB1X5471 | Screw Mtg. Bracket, Hinge |
|
- | |||||
| 26 | WB10X5113 | Bracket, Hinge, Lower |
|
- | |||||
| 27 | WB2X6473 | Washer |
|
- | |||||
| 28 | WB1X5471 | Screw, Mt. Bracket |
|
- | |||||
| 30 | WZ04X0231 | Screw, Mt. Clamp |
|
- | |||||
| 30 | WB1X455 | Speednut, Clamp |
|
- | |||||
| 30 | WB2X6609 | Clamp, Resistor |
|
- | |||||
| 30 | WB27X5071 | Resistor |
|
- | |||||
| 31 | WZ05X0240 | Screw, Mt. Switch |
|
- | |||||
| 31 | WB24X5101 | Switch, Latch (2 Each) |
|
- | |||||
| 32 | WB2X6698 | Cover, Switch (2 Each) |
|
- | |||||
| 33 | WB20X5042 | Receptacle, Probe |
|
- | |||||
| 33 | WB2X2954 | Sleeve (cut To Size) |
|
- | |||||
| 34 | WZ04X0231 | Screw, Mt. Strike |
|
- | |||||
| 34 | WB10X5121 | Strike, Latch (2 Each) |
|
- | |||||
| 35 | WB56X5639 | Stirrer Cover |
|
- | |||||
| 36 | WB1X5453 | Fastener, Nylon Mt. Cover |
|
- | |||||
| 37 | WB20X5041 | Probe Assembly |
|
- | |||||
| 38 | WB53X5081 | Cavity And Faceplate |
|
- | |||||
| 39 | WB2X6486 | Pad (cut To Size) |
|
- | |||||
| 39 | WB49X5217 | Back Assembly, Case |
|
- | |||||
| 39 | WZ04X0231 | Screw, Mount Back |
|
- | |||||
| 40 | WB49X5151 | Base Assembly |
|
- | |||||
| 41 | WB27X5094 | Resistor |
|
- | |||||
| 43 | WB2X6746 | Bracket Assembly, Resistor |
|
- | |||||
| 43 | WS01A02255 | Screw, Mt. Bracket (Replaces: WB1X536) |
|
$ 3.97 | |||||
| 44 | WB27X5120 | Capacitor |
|
- | |||||
| 45 | WB2X6393 | Strap, Capacitor |
|
- | |||||
| 46 | WB27X5056 | Relay |
|
- | |||||
| 46 | WZ04X0218 | Screw, Mt. Relay |
|
- | |||||
| 47 | WZ04X0238 | Screw, Mt. Rectifier |
|
- | |||||
| 47 | WB2X6524 | Sleeve |
|
- | |||||
| 47 | 11QBP0235 | Rectifier (Replaces: WB27X5070) |
|
$ 15.33 | |||||
| 48 | WB2X6612 | Bracket, Mt. Relay-capacitor |
|
- | |||||
| 48 | WZ04X0231 | Screw, Mt. Bracket |
|
- | |||||
| 49 | WB18X5053 | Switch Term. Housing |
|
- | |||||
| 50 | WB2X6699 | Barrier, Switch |
|
- | |||||
| 51 | WB2X6658 | Angle Stop |
|
- | |||||
| 52 | WB48X5056 | Shelf Oven |
|
- | |||||
| 53 | WB49X5209 | Baffle Duct |
|
- | |||||
| 54 | WB2X6755 | Gasket (cut To Size) |
|
- | |||||
| 54 | WB49X5211 | Duct Bottom |
|
- | |||||
| 55 | WB49X5210 | Duct Side |
|
- | |||||
| 56 | WB2X6835 | Cover - Wh |
|
- | |||||
| 56 | WB2X6836 | Cover - Cf |
|
- | |||||
| 56 | WB2X6837 | Cover - Fa |
|
- | |||||
| 56 | WB2X6839 | Cover - Ad |
|
- | |||||
| 56 | WB2X6838 | Cover - Ha |
|
- | |||||
| 57 | WB2X6725 | Recep. Cover - Cf |
|
- | |||||
| 57 | WB2X6727 | Recep. Cover - Ha |
|
- | |||||
| 57 | WB2X6728 | Recep. Cover - Ad |
|
- | |||||
| 57 | WB2X6726 | Recep. Cover - Fa |
|
- | |||||
| 57 | WB2X6724 | Recep. Cover - Wh |
|
- | |||||
| 57 | WS01A01150 | Screw Mtg. Cover (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 58 | WB2X6841 | Brace Angle |
|
- | |||||
| 59 | WB2X6840 | Cover, Filler |
|
- | |||||
| 60 | WB2X6852 | Button, Plug |
|
- | |||||
| 61 | WB2X6859 | Bracket, Socket Lamp |
|
- | |||||
| 62 | WB2X6856 | Cover |
|
- | |||||
| 65 | WB2X6636 | Trim Crystal |
|
- | |||||
| 65 | WZ04X0237 | Screw Mt. Trim |
|
- | |||||
| 66 | WB2X6634 | Pad, Control Trim (bottom) |
|
- | |||||
| 66 | WB2X6635 | Trim, Control Trim |
|
- | |||||
| 66 | WB2X6653 | Speednut - Bottom |
|
- | |||||
| 66 | WZ04X0237 | Screw Mt. Control Trim |
|
- | |||||
| 66 | WB1X580 | Speednut - Top |
|
- | |||||
| 67 | WB2X6654 | Clip, Crystal |
|
- | |||||
| 67 | WB36X5371 | Crystal, Control Panel |
|
- | |||||
| 68 | WB3X422 | Knob, Oven Switch |
|
- | |||||
| 69 | WB3X5586 | Knob, Thermostat |
|
- | |||||
| 70 | WB3X218 | Knob, Timer |
|
- | |||||
| 71 | WB3X5587 | Knob, Surface Units |
|
- | |||||
| 72 | WB3X5578 | Knob, Slide Switch |
|
- | |||||
| 73 | WB3X5562 | Knob, Time Set |
|
- | |||||
| 74 | WB2X6656 | Speednut, Mt. Insert |
|
- | |||||
| 74 | WB36X5373 | Insert, Control Panel |
|
- | |||||
| 75 | WB3X5585 | Button, Push Switch, Start |
|
- | |||||
| 76 | WB2X1608 | Lamp, 118v |
|
$ 31.65 | |||||
| 76 | WB2X6624 | Clip, Mt. Lamp |
|
- | |||||
| 76 | WZ04X0231 | Screw, Mt. Clip |
|
- | |||||
| 77 | WB2X6623 | Catch, Control Panel |
|
- | |||||
| 78 | WB2X6633 | Barrier |
|
- | |||||
| 79 | WB2X6632 | Slide Indicator, Color |
|
- | |||||
| 80 | WB19X5239 | Timer, Digital |
|
- | |||||
| 80 | WZ04X0231 | Screw, Mt. Timer |
|
- | |||||
| 81 | WB2X6631 | Bracket, Control Mount |
|
- | |||||
| 82 | WB22X5093 | Switch, Oven L.o. |
|
- | |||||
| 82 | WZ02X0528 | Screw, Mt. Switch |
|
- | |||||
| 83 | WB24X184 | Thermostat L.o. |
|
- | |||||
| 83 | WZ02X0528 | Screw, Mt. Thermostat |
|
- | |||||
| 83 | WB2X6454 | Sleeving |
|
- | |||||
| 84 | WB2X6630 | Spacer Push Button |
|
- | |||||
| 85 | WB24X5083 | Switch, Push Start |
|
- | |||||
| 86 | WB27X5147 | Resistor & Terminal Asm. |
|
- | |||||
| 87 | WZ04X0279 | Screw, Mt. Slide Switch |
|
- | |||||
| 87 | WB24X5073 | Slide Switch |
|
- | |||||
| 89 | WB2X6510 | Mask, Timer |
|
- | |||||
| 90 | WZ04X0209 | Screw, Mt. Timer |
|
- | |||||
| 90 | WB27X5052 | Timer U.o. |
|
- | |||||
| 91 | WZ04X0231 | Screw, Bracket |
|
- | |||||
| 91 | WB2X6628 | Spacer Bracket |
|
- | |||||
| 92 | WB2X6625 | Instrument Bracket |
|
- | |||||
| 93 | WB2X6637 | Bracket, Mt. Circuit Board |
|
- | |||||
| 94 | WB24X5088 | Circuit Board |
|
- | |||||
| 94 | WZ04X0314 | Screw, Mt. Board |
|
- | |||||
| 95 | WZ04X0314 | Screw, Mt. Cover |
|
- | |||||
| 95 | WB2X6514 | Cover, Circuit Board |
|
- | |||||
| 96 | WZ04X0231 | Screw, Mt. Clamp |
|
- | |||||
| 96 | WB2X3415 | Clamp, Wiring |
|
- | |||||
| 97 | WZ04X0231 | Screw, Mt. Support |
|
- | |||||
| 97 | WB2X6703 | Support, Circuit Board |
|
- | |||||
| 98 | WB2X6640 | Guide, Drum |
|
- | |||||
| 98 | WZ04X0231 | Screw, Mt. Guide |
|
- | |||||
| 99 | WB1X5475 | Clip, Drum To Pot. Shaft |
|
- | |||||
| 99 | WB2X6638 | Drum, Temperature |
|
- | |||||
| 100 | WB24X5092 | Potentiometer |
|
- | |||||
| 101 | WB1X443 | Nut, Mt. Potentiometer |
|
- | |||||
| 102 | WB2X6639 | Mask, Drum |
|
- | |||||
| 102 | WZ04X0231 | Screw, Mt. Mask |
|
- | |||||
| 103 | WZ02X0528 | Screw, Mt. Switch |
|
- | |||||
| 103 | WB24X5119 | Switch, Power Select |
|
- | |||||
| 104 | WB2X6494 | Barrier, Switch Terminal |
|
- | |||||
| 104 | WZ02X0528 | Screw, Mt. Switch |
|
- | |||||
| 104 | WB21X228 | Infinite Heat Switch |
|
- | |||||
| 105 | WB17X5062 | Term. Block (12 Pin) |
|
- | |||||
| 120 | WB15X5114 | Handle Door |
|
- | |||||
| 121 | WB7X5635 | Trim Handle |
|
- | |||||
| 122 | WB1X5462 | Screw Mtg. Handle & Trim |
|
- | |||||
| 123 | WB3X5589 | Button Latch |
|
- | |||||
| 124 | WB2X6644 | Spring Latch |
|
- | |||||
| 125 | WB10X5112 | Latch Bar |
|
- | |||||
| 126 | WB10X5111 | Hinge Latch |
|
- | |||||
| 126 | WZ04X0231 | Screw Mtg. Hinge Latch |
|
- | |||||
| 126 | WB2X6580 | Shim |
|
- | |||||
| 127 | WB7X5634 | Trim, Door |
|
- | |||||
| 127 | WB1X5505 | Speednut Mtg. Trim |
|
- | |||||
| 127 | WS01A01150 | Screw Mtg. Trim (lower) (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 129 | WB2X6643 | Clip, Window |
|
- | |||||
| 130 | WB56X5686 | Panel, Door |
|
- | |||||
| 131 | WB55X5227 | Liner - Choke Asm. |
|
- | |||||
| 132 | WB2X6700 | Gasket - Large |
|
- | |||||
| 133 | WB2X6476 | Gasket - Small |
|
- | |||||
| 134 | WB36X5415 | Window, Inner |
|
- | |||||
| 134 | WB2X6474 | Pad, Window |
|
- | |||||
| 135 | WB55X5232 | Cover, Choke |
|
- | |||||
| 136 | WB1X5518 | Screw (torx) Mtg. Window & Cover |
|
- | |||||
| 137 | WB7X5643 | Trim Filler, Inner Door |
|
- | |||||
| 137 | WS01A01150 | Screw, Mtg. Trim (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 138 | WB2X6909 | Bumper |
|
- | |||||
| 145 | WB2X6645 | Plate, Mt. Components |
|
- | |||||
| 146 | WB27X91 | Block, Fuse |
|
- | |||||
| 146 | WZ05X0184 | Screw, Mt. Fuse |
|
- | |||||
| 146 | WB2X6616 | Barrier, Fuse |
|
- | |||||
| 147 | CF15FB | Fuse (Replaces: WB27X7) |
|
Immediately | $ 3.63 | ||||
| 149 | WZ04X0231 | Screw Mt. Blower Assembly |
|
- | |||||
| 149 | WB26X5035 | Motor & Blower Assembly |
|
- | |||||
| 150 | WB1X453 | Screw, Mt. Transformer |
|
- | |||||
| 150 | WB27X5096 | Transformer |
|
- | |||||
| 150 | WB62X5248 | Cooktop - Fa |
|
- | |||||
| 150 | WB62X5247 | Cooktop - Cf |
|
- | |||||
| 150 | WB62X5246 | Cooktop - Wh |
|
- | |||||
| 150 | WB62X5249 | Cooktop - Ha |
|
- | |||||
| 150 | WZ04X0231 | Screw Mtg. Cooktop |
|
- | |||||
| 150 | WB62X5250 | Cooktop - Ad |
|
- | |||||
| 153 | WB7X5646 | Insert Trim |
|
- | |||||
| 153 | WB7X5639 | Trim - Front |
|
- | |||||
| 153 | WB2X6775 | Duct, Blower |
|
- | |||||
| 153 | WZ04X0366 | Screw Mtg. Trim |
|
- | |||||
| 154 | WB18X5048 | Magnetron High Voltage Wire |
|
- | |||||
| 154 | WB27X5144 | Magnetron Tube |
|
- | |||||
| 155 | WB2X3006 | Clip Mtg. Trim |
|
- | |||||
| 155 | WB1X5271 | Nut, Mt. Magnetron |
|
- | |||||
| 156 | WB2X1608 | Lamp - Lock |
|
$ 31.65 | |||||
| 156 | WB2X1609 | Lamp Clean |
|
- | |||||
| 156 | WB2X6046 | R.f. Gasket |
|
- | |||||
| 159 | WB1X5521 | Nut Switch |
|
- | |||||
| 159 | WB2X6756 | Duct Front |
|
- | |||||
| 159 | WB24X166 | Switch - Latch Release |
|
- | |||||
| 160 | WS01A01150 | Screw Mtg. Clip (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 160 | WB2X2988 | Clip Mtg. Trim |
|
- | |||||
| 160 | WB2X6755 | Gasket, Magnetron (cut To Size) |
|
- | |||||
| 161 | WB2X6757 | Duct, Rear |
|
- | |||||
| 161 | WZ06X0038 | Screw Mtg. Deflector |
|
- | |||||
| 161 | WB7X1100 | Deflector |
|
- | |||||
| 162 | WZ04X0231 | Screw Mtg. Back |
|
- | |||||
| 162 | WB49X5181 | Cover - Back |
|
- | |||||
| 162 | WB2X6491 | Gasket (cut To Size) |
|
- | |||||
| 163 | WB1X5450 | Nut, Cap, Mt. Stirrer |
|
- | |||||
| 163 | WB1X2586 | Speednut Mtg. Stirrer |
|
- | |||||
| 164 | WB2X6479 | Stirrer, Mode |
|
- | |||||
| 165 | WB2X6737 | Support - Lh |
|
- | |||||
| 165 | WB2X6480 | Gasket |
|
- | |||||
| 165 | WB2X6736 | Support - Rh |
|
- | |||||
| 165 | WZ04X0231 | Screw Mtg. Support |
|
- | |||||
| 166 | WB2X3001 | Spacer - Post |
|
- | |||||
| 166 | WB1X5497 | Screw Mtg. Motor |
|
- | |||||
| 166 | WB26X5039 | Motor Stirrer |
|
- | |||||
| 167 | WZ04X0231 | Screw Mtg, Cover |
|
- | |||||
| 167 | WB49X5206 | Top, Duct |
|
- | |||||
| 167 | WB7X1176 | Cover - Support Lh - Fa |
|
- | |||||
| 167 | WB7X1175 | Cover - Support Lh - Cf |
|
- | |||||
| 167 | WB7X1174 | Cover - Support Lh - Wh |
|
- | |||||
| 167 | WB7X1173 | Cover - Support Rh - Ad |
|
- | |||||
| 167 | WB7X1172 | Cover - Support Rh - Ha |
|
- | |||||
| 167 | WB7X1171 | Cover - Support Rh - Fa |
|
- | |||||
| 167 | WB7X1177 | Cover - Support Lh - Ha |
|
- | |||||
| 167 | WB7X1178 | Cover - Support Lh - Ad |
|
- | |||||
| 167 | WB7X1169 | Cover - Support Rh - Wh |
|
- | |||||
| 167 | WB7X1170 | Cover - Support Rh - Cf |
|
- | |||||
| 168 | WB56X5702 | Bottom, Duct |
|
- | |||||
| 168 | WS01A02255 | Screw, Mt. Ducts (Replaces: WB1X536) |
|
$ 3.97 | |||||
| 169 | WZ04X0304 | Screw Mt. Duct |
|
- | |||||
| 169 | WB2X6776 | Duct, Filler |
|
- | |||||
| 170 | WB7X1183 | Panel - Crystal Rh - Ad |
|
- | |||||
| 170 | WB7X1182 | Panel - Crystal Rh - Ha |
|
- | |||||
| 170 | WB7X1181 | Panel - Crystal Rh - Fa |
|
- | |||||
| 170 | WB7X1180 | Panel - Crystal Rh - Cf |
|
- | |||||
| 170 | WB7X1179 | Panel - Crystal Rh - Wh |
|
- | |||||
| 170 | WB2X6614 | Plate Trim, Top |
|
- | |||||
| 170 | WZ04X0231 | Screw, Mt. Trim |
|
- | |||||
| 170 | WB7X1188 | Panel - Crystal Lh - Ad |
|
- | |||||
| 170 | WB7X1187 | Panel - Crystal Lh - Ha |
|
- | |||||
| 170 | WB7X1186 | Panel - Crystal Lh - Fa |
|
- | |||||
| 170 | WB7X1185 | Panel - Crystal Lh - Cf |
|
- | |||||
| 170 | WB7X1184 | Panel - Crystal Lh - Wh |
|
- | |||||
| 171 | WB17X160 | Socket, Hood - Oven |
|
- | |||||
| 172 | WB17X145 | Pin-male, Hood - Oven |
|
- | |||||
| 172 | WZ04X0209 | Screw Mtg. Housing |
|
- | |||||
| 172 | WB49X347 | Lamp Housing |
|
- | |||||
| 173 | WB9X137 | Clip - Crystal |
|
- | |||||
| 173 | WB36X435 | Crystal & Trim |
|
- | |||||
| 173 | WB17X146 | Terminal, Hood - Oven |
|
- | |||||
| 174 | WB17X159 | Socket, Hood - Oven |
|
- | |||||
| 174 | WB8X164 | Socket - Lamp |
|
- |
