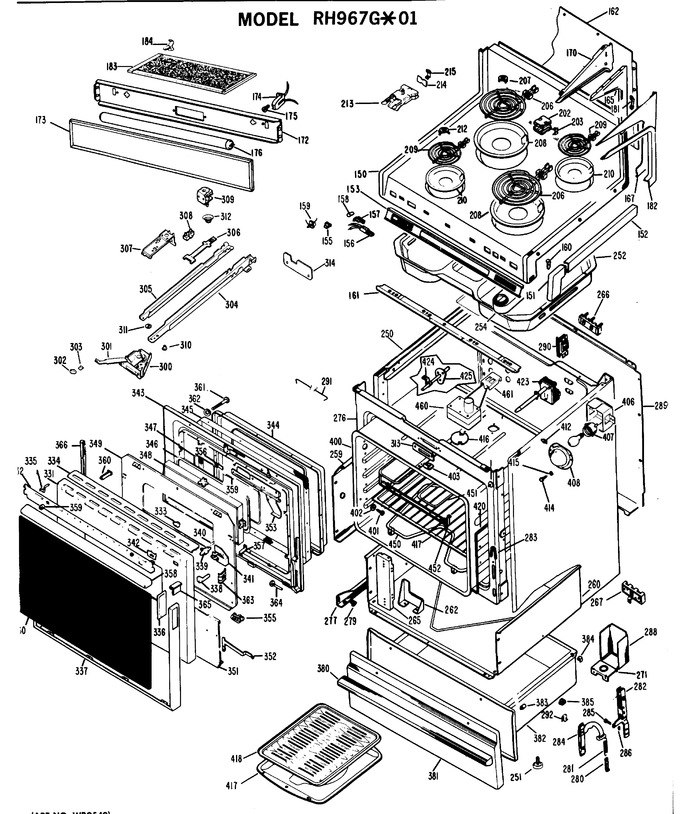

Diagram # Part Number Description Series Availability Ships Price Add to Cart
150 WB62X5246 Cooktop - Wh Appelez-nous -
150 WB62X5249 Cooktop - Ha Appelez-nous -
150 WB62X5247 Cooktop - Cf Appelez-nous -
150 WB62X5250 Cooktop - Ad Appelez-nous -
150 WB62X5248 Cooktop - Fa Appelez-nous -
151 WB7X6677 End Cap - Lh Appelez-nous -
151 WB7X6676 End Cap - Rh Appelez-nous -
151 WZ04X0384 Screw Mtg. Cap Appelez-nous -
151 WB1X5520 Speednut Mtg. End Cap Appelez-nous -
152 WB7X1004 Trim Cooktop (2) Appelez-nous -
153 WZ04X0366 Screw Mtg. Trim Appelez-nous -
153 WB7X5639 Trim -front Appelez-nous -
153 WB7X5646 Insert - Trim Appelez-nous -
155 WB2X3006 Clip Mtg. Trim Appelez-nous -
156 WB2X1608 Lamp - Lock Special Order $ 31.65

156 WB21X1609 Lamp Clean Appelez-nous -
157 WB2X1185 Clip - Lamps Appelez-nous -
158 WB25X65 Jewel - Lamps Appelez-nous -
159 WB1X5521 Nut - Switch Appelez-nous -
159 WB24X166 Switch - Latch Release Appelez-nous -
160 WS01A01150 Screw Mtg. Clip   (Replaces: WB1X5364) Special Order $ 3.97

160 WB2X2988 Clip Mtg. Trim Appelez-nous -
161 WZ06X0038 Screw Mtg. Deflector Appelez-nous -
161 WB7X1100 Deflector Appelez-nous -
162 WB49X5181 Cover - Back Appelez-nous -
165 WB2X6736 Support - Rh Appelez-nous -
165 WB2X6737 Support - Lh Appelez-nous -
166 WB2X3001 Spacer - Post Appelez-nous -
167 WB7X1172 Cover - Support Rh - Ha Appelez-nous -
167 WB7X1171 Cover - Support Rh - Fa Appelez-nous -
167 WB7X1178 Cover - Support Lh - Ad Appelez-nous -
167 WB7X1169 Cover - Support Rh - Wh Appelez-nous -
167 WB7X1170 Cover - Support Rh - Cf Appelez-nous -
167 WB7X1173 Cover - Support Rh - Ad Appelez-nous -
167 WB7X1174 Cover - Support Lh - Wh Appelez-nous -
167 WB7X1175 Cover - Support Lh - Cf Appelez-nous -
167 WB7X1176 Cover - Support Lh - Fa Appelez-nous -
170 WB7X1183 Panel - Crystal Rh - Ad Appelez-nous -
170 WB7X1181 Panel - Crystal Rh - Fa Appelez-nous -
170 WB7X1180 Panel - Crystal Rh - Cf Appelez-nous -
170 WB7X1179 Panel - Crystal Rh - Wh Appelez-nous -
170 WB7X1184 Panel - Crystal Lh - Wh Appelez-nous -
170 WB7X1185 Panel - Crystal Lh - Cf Appelez-nous -
170 WB7X1182 Panel - Crystal Rh - Ha Appelez-nous -
170 WB7X1186 Panel - Crystal Lh - Fa Appelez-nous -
170 WB7X1187 Panel - Crystal Lh - Ha Appelez-nous -
170 WB7X1188 Panel - Crystal Lh - Ad Appelez-nous -
172 WZ04X0209 Screw Mtg. Housing Appelez-nous -
172 WB49X347 Lamp Housing Appelez-nous -
173 WB36X435 Crystal & Trim Appelez-nous -
173 WB2X1667 Clip - Crystal Appelez-nous -
174 WB8X164 Socket - Lamp Appelez-nous -
175 WZ04X0372 Screw Mtg. Socket Appelez-nous -
176 F20T12/CW "f" Lamp Appelez-nous -
181 WB9X137 Spring - Latch Appelez-nous -
182 WZ04X0336 Screw Mtg. Trim Appelez-nous -
182 WB7X1006 Trim - Lh Appelez-nous -
182 WB7X1005 Trim - Rh Appelez-nous -
183 WB2X1666 Filter Appelez-nous -
184 WB2X1665 Clip Filter Appelez-nous -
206 PS240M Surface Unit 8" Lr   (Replaces: WB30X219) In-Stock Immediately $ 44.95

206 WB1X5355 Terminal Screws Appelez-nous -
207 WB3X51 Center Trim 8" Appelez-nous -
208 WB31X5011 Ring Pan 8" Chrome Appelez-nous -
209 WB30X218 Surface Unit 6" Lf, Rr Appelez-nous -
209 WB1X5355 Terminal Screws Appelez-nous -
210 WB31X5010 Ring Pan 6" Chrome Appelez-nous -
212 WB32X52 Center Trim 6" Appelez-nous -
212 WB1X5355 Terminal Screws Appelez-nous -
213 WB5X5026 Spring Contact Pkg. Appelez-nous -
213 WB17X5051 Receptacle Asm. Appelez-nous -
214 WB2X6171 Insulator Appelez-nous -
215 WB2X6172 Clip - Insulator Appelez-nous -
215 WB2X995 Clip - Leads Appelez-nous -
250 WB2X3229 Barrier Appelez-nous -
250 WB2X1742 Clamp - Harness Appelez-nous -
250 WZ04X0234 Screw Mtg. Bake Unit Opng Back Barrier Appelez-nous -
251 WB1X5516 Leveling Screw Appelez-nous -
252 WB49X5149 Box Cooktop Appelez-nous -
254 WB38X5039 Vent Body Appelez-nous -
259 WB49X5172 Guard Upper - Lh (01) Appelez-nous -
259 WB49X5171 Guard Upper - Rh (01) Appelez-nous -
259 WZ04X0345 Screw - Mtg. Guards Appelez-nous -
259 WB49X5221 Guard Upper - Rh (02 & Up) Appelez-nous -
259 WB49X5222 Guard Upper - Lh (02 & Up) Appelez-nous -
260 WB49X5156 Guard Lower Appelez-nous -
262 WB2X6187 Support Oven Appelez-nous -
265 WB2X6768 Panel Filler Appelez-nous -
266 WZ04X0384 Screw Mtg. Block Appelez-nous -
266 WB17X167 Terminal Block - Distribution Appelez-nous -
267 WB2X646 Plate Ground Appelez-nous -
267 WZ04X0348 Screw Mtg. Terminal Block Appelez-nous -
267 WB17X168 Power Term. Block Appelez-nous -
271 WB2X6191 Knockout Bracket Appelez-nous -
271 WS01A02255 Screw Mtg. Bracket   (Replaces: WB1X536) Special Order $ 3.97

276 WZ04X0345 Screw Mtg. Frame Appelez-nous -
276 WB56X5861 Front Frame (02 & Up) Appelez-nous -
276 WB2X3240 Spacer Appelez-nous -
276 WB56X1296 Front Frame (01) Appelez-nous -
277 WB39X5011 Drawer Guide Rh Appelez-nous -
277 WB39X5010 Drawer Guide Lh Appelez-nous -
279 WB2X831 Slide Guide Appelez-nous -
280 WB2X2506 Hook Door Spring Appelez-nous -
281 WB9X5076 Spring Door Appelez-nous -
282 WB1X5471 Screw Mtg. Support Top Appelez-nous -
282 WB1X5497 Screw Mtg. Support Bottom Appelez-nous -
282 WB10X5090 Support Hinge Rh Appelez-nous -
282 WB10X5091 Support Hinge Lh Appelez-nous -
282 WB1X119 Washer Appelez-nous -
283 WB2X6342 Guide - Lever Appelez-nous -
284 WB10X5092 Hinge Lever Asm. - Rh & Lh Appelez-nous -
285 WG02A00596 Hinge Pin   (Replaces: WB2X6195) Special Order $ 4.20

286 WB2X1082 Ret. Ring Appelez-nous -
287 WB24X105 Switch Oven Light Appelez-nous -
287 WB2X6196 Insulator Barrier Appelez-nous -
288 WB2X6655 Cover Terminal Block Appelez-nous -
289 WB49X5161 Cover Back Appelez-nous -
290 WB2X1546 Ballast Appelez-nous -
291 WB2X6746 Hook Appelez-nous -
292 WB2X3193 Clip - Shim Appelez-nous -
300 WB14X36 Latch Asm. Appelez-nous -
300 WZ02X0546 Screw Mtg. Latch Appelez-nous -
301 WB15X142 Handle Appelez-nous -
301 WB1X438 Screw Mt. Handle Appelez-nous -
302 WB3X322 Knob Latch Appelez-nous -
303 WG02A00753 Retainer Knob   (Replaces: WB2X2030) Special Order $ 4.20

304 WB2X3174 Channel Latch Appelez-nous -
305 WB2X3175 Channel Locking Appelez-nous -
306 WB2X3159 Pawl Locking Appelez-nous -
307 WB2X3176 Plate Mounting Appelez-nous -
307 WZ04X0362 Screw Channel To Latch Appelez-nous -
307 WZ04X0396 Screw Mt. Plate Appelez-nous -
308 WB24X183 Switch Latch Appelez-nous -
308 WZ04X0397 Screw Mtg. Switch Appelez-nous -
308 WB2X6912 Barrier Appelez-nous -
309 WB24X197 Solenoid Appelez-nous -
309 WB1X438 Screw Mt. Solenoid Appelez-nous -
310 WB2X6212 Pivot Stud Appelez-nous -
311 WB2X1800 Retaining Ring Appelez-nous -
312 WB9X148 Spring Appelez-nous -
313 WB7X552 Trim Latch Appelez-nous -
314 WZ04X0394 Screw Latch Rear Appelez-nous -
314 WZ10X0114 Lockwasher Latch Rear Appelez-nous -
314 WB2X6911 Bracket Latch Appelez-nous -
330 WB2X122 Pad Appelez-nous -
330 WB36X5379 Black Glass Panel Appelez-nous -
331 WB56X5678 Panel Door Appelez-nous -
331 WB2X6546 Insulation Door Appelez-nous -
332 WB7X5623 Trim Door Appelez-nous -
333 WB2X3053 Speednut Mtg. Trim Appelez-nous -
334 WB7X5630 Trim Top Appelez-nous -
335 WB2X6575 Clip Mtg. Trim Appelez-nous -
336 WB2X6573 Pad Trim Appelez-nous -
337 WB7X5625 Trim Door Appelez-nous -
338 WB2X6574 Clip Trim (4 Per) Appelez-nous -
339 WB2X3052 Cam Appelez-nous -
340 WB2X5217 Link Cam Appelez-nous -
341 WB9X5083 Cam Spring Appelez-nous -
342 WB7X5624 Trim Plate Appelez-nous -
343 WB55X5216 Liner Door Appelez-nous -
344 WB55X5210 Panel Inner Appelez-nous -
345 WB1X537 Screw Mtg. Gasket Appelez-nous -
345 WB2X6547 Gasket Door Appelez-nous -
346 WB7X722 Trim Crystal Appelez-nous -
347 WB2X6232 Gasket Crystal Appelez-nous -
348 WB36X5244 Window Appelez-nous -
349 WB55X5218 Guard Insulation Appelez-nous -
351 WB55X5217 Shield Window Appelez-nous -
352 WZ05X0134 Screw Mtg. Handle Appelez-nous -
352 WB15X144 Handle Shield Lh Appelez-nous -
352 WB15X143 Handle Shield Rh Appelez-nous -
353 WB2X3045 Cover Assembly Appelez-nous -
353 WZ04X0304 Screw Mtg. Cover Appelez-nous -
354 WB9X128 Spring Guard Appelez-nous -
355 WB2X3040 Slide Shield Appelez-nous -
356 WZ04X0304 Screw Mtg. Strike Appelez-nous -
356 WB9X138 Spring Strike Appelez-nous -
357 WB2X6238 Bracket Door Appelez-nous -
358 WB15X5130 Handle Door Appelez-nous -
359 WB2X6243 Grommet Handle Appelez-nous -
360 WB2X6204 Spacer Appelez-nous -
361 WZ04X0298 Screw Mtg. Handle Appelez-nous -
362 WB1X119 Washer Mtg. Handle Appelez-nous -
363 WB2X6270 Spacer Panel Appelez-nous -
364 WB1X558 Bolt Liner Socket Appelez-nous -
365 WB7X5631 Cap Trim Appelez-nous -
366 WB2X3041 Guide & Spring Assembly-lh Appelez-nous -
366 WB2X3042 Guide & Spring Assembly-rh Appelez-nous -
380 WB15X5121 Handle Appelez-nous -
380 WZ04X0209 Screw Mt. Handle Appelez-nous -
381 WB56X5736 Panel Drawer - Ha Appelez-nous -
381 WB56X5737 Panel Drawer - Ad Appelez-nous -
381 WB56X5735 Panel Drawer - Fa Appelez-nous -
381 WB56X5733 Panel Drawer - Wh Appelez-nous -
381 WB56X5734 Panel Drawer - Cf Appelez-nous -
382 WB58X5005 Drawer Assembly Appelez-nous -
383 WB2X6208 Bumper Appelez-nous -
384 WB2X840 Slide Top Appelez-nous -
385 WB2X841 Slide Appelez-nous -
400 WB1X422 Screw Mtg. Cover Appelez-nous -
400 WB1X525 Washer Mtg. Cover Appelez-nous -
400 WB2X3230 Cover Appelez-nous -
400 WB53X5070 Oven Liner Appelez-nous -
400 WB2X6496 Insulation Oven Liner Appelez-nous -
401 WB1X570 Screw Mtg. Liner Appelez-nous -
402 WB1X119 Washer Mtg. Liner Appelez-nous -
403 WZ04X0238 Screw Mtg. Trim Appelez-nous -
403 WB2X6209 Clip Trim Appelez-nous -
406 WB2X3466 Guard Lamp Appelez-nous -
407 WB8X5060 Oven Light Socket Appelez-nous -
408 WG02F04576 Glass Lamp   (Replaces: WB36X192) Special Order $ 20.65

412 WB2X1659 Speednut Appelez-nous -
413 WZ04X0361 Screw Mtg. Trim Lamp Appelez-nous -
414 WZ04X0291 Screw Mtg. Trim To Plate Appelez-nous -
415 WB2X1847 Washer Appelez-nous -
416 WB2X1626 Baffle Vent Appelez-nous -
416 WZ04X0291 Screw Mtg. Baffle Appelez-nous -
417 WB48X5044 Oven Rack Appelez-nous -
418 WB48X5002 Rack Broil Pan Appelez-nous -
419 WB49X88 Pan Broiler Appelez-nous -
420 WB44X186 Mullion Unit Appelez-nous -
420 WB1X500 Screw Terminal Appelez-nous -
420 WB2X3253 Clip Retainer Mullion Unit Appelez-nous -
423 WB24X175 Thermal Switch Appelez-nous -
423 WB2X6274 Sleeve Appelez-nous -
424 WZ04X0288 Screw Mt. Hanger Appelez-nous -
424 WB2X3165 Hanger Appelez-nous -
425 WB2X3163 Gasket - Plate Special Order $ 22.50

425 WZ04X0291 Screw Mt. Plate Appelez-nous -
425 WB2X3164 Mounting Plate Appelez-nous -
450 UB592 Bake Unit   (Replaces: WB44X5082) In-Stock Immediately $ 49.95

450 WZ04X0291 Screw Mtg. Bake Unit Appelez-nous -
450 WB1X500 Screw Terminal Appelez-nous -
451 UT316 Broil Unit   (Replaces: WB44X185) In-Stock Immediately $ 49.95

451 WB1X500 Screw Terminal Appelez-nous -
451 WZ04X0291 Screw Mtg. Broil Unit Appelez-nous -
452 WZ04X0291 Screw Mtg. Support Appelez-nous -
452 WB2X1543 Gasket Appelez-nous -
452 WB2X1810 Broil Unit Support Appelez-nous -
460 WB29X5009 Smoke Eliminator Appelez-nous -
460 WZ04X0291 Screw Mtg. Smoke Eliminator Appelez-nous -
461 WB2X3388 Terminal Block Appelez-nous -
461 WB1X500 Screw Terminals Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for RH967G*01
