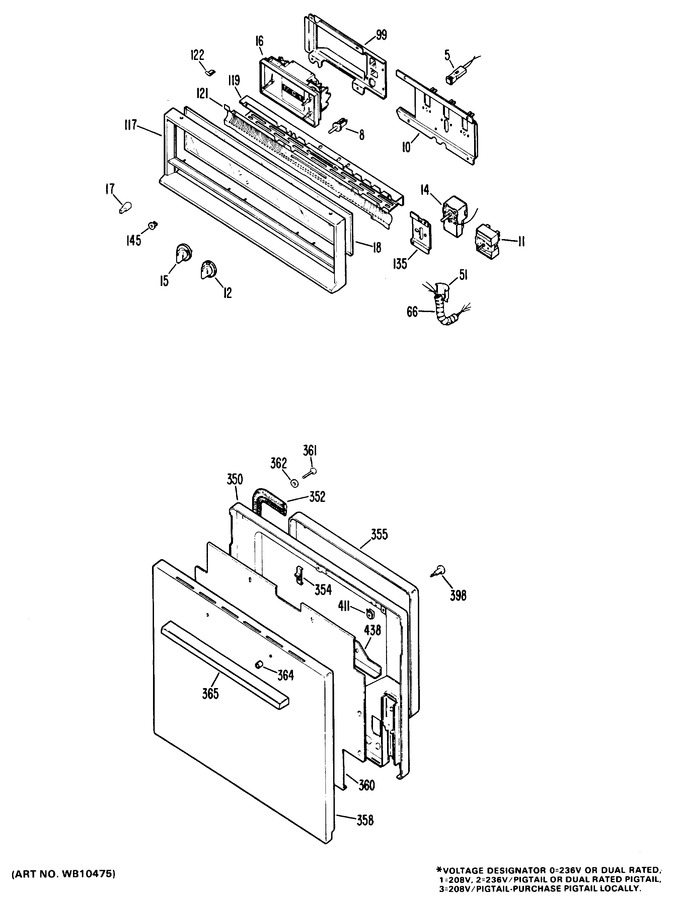

SELECT A DIAGRAM

1 - Component Group


2 - Component Group


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	WB2X3468		Neon Lamp 240v		Appelez-nous	-
5	WB2X1608		Neon Lamp 118v				$ 31.65
8	WB24X108		Switch, Latch Release		Appelez-nous	-
10	WB1X5220		Nut		Appelez-nous	-
10	WB2X3454		Bracket Instrument		Appelez-nous	-
11	WB22X5110		Switch, Oven		Appelez-nous	-
12	WB3X407		Knob Oven Switch		Appelez-nous	-
14	WB21X5320		Thermostat, Dual   (Replaces: WB24X176)		Appelez-nous	-
14	WB2X6937		Sleeve		Appelez-nous	-
15	WB3X405		Knob Thermostat		Appelez-nous	-
16	WB19X5269		Timer Digital		Appelez-nous	-
17	WB3X459		Knob Timer		Appelez-nous	-
18	WB36X562		Crystal		Appelez-nous	-
51	WB2X2843		Clamp Conduit		Appelez-nous	-
99	WB2X3405		Bracket Timer		Appelez-nous	-
117	WB7X596		Trim		Appelez-nous	-
119	WB2X1973		Deflector		Appelez-nous	-
121	WB7X782		Grille		Appelez-nous	-
122	WB2X2006		Clamp Harness		Appelez-nous	-
135	WB2X1949		Plate Instrument		Appelez-nous	-
145	WB2X3429		Washer		Appelez-nous	-
350	WB55X5301		Door Liner		Appelez-nous	-
350	WB2X3408		Insulation		Appelez-nous	-
352	WB2X2940		Gasket Door		Appelez-nous	-
354	WB9X154		Strike Spring		Appelez-nous	-
355	WB2X1965		Foil - Panel		Appelez-nous	-
355	WB55X5300		Panel Inner		Appelez-nous	-
358	WB56X1380		Door Panel Ad		Appelez-nous	-
358	WB56X1376		Door Panel Wh		Appelez-nous	-
358	WB56X1379		Door Panel Ha		Appelez-nous	-
360	WB55X420		Spacer Insulation		Appelez-nous	-
361	WZ04X0425		Screw		Appelez-nous	-
362	WB1X119		Washer Contoured		Appelez-nous	-
364	WB2X6243		Grommet Handle		Appelez-nous	-
365	WB15X133		Handle		Appelez-nous	-
398	WB1X600		Scr Shoulder		Appelez-nous	-
411	WB1X439		Speednut Bracket		Appelez-nous	-
438	WB2X2269		Stop Insulation		Appelez-nous	-
9999	39-4554		Manual Users		Appelez-nous	-
9999	31-0409		Install Instructions		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
