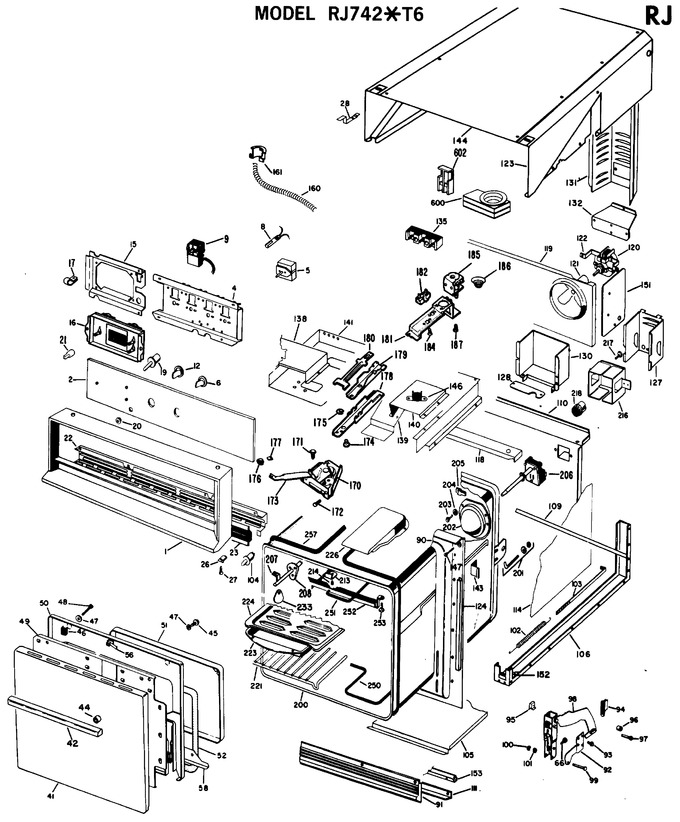

SELECT A DIAGRAM

1 - Component Group


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB7X596		Trim		Appelez-nous	-
2	WB36X562		Crystal		Appelez-nous	-
4	WB2X3454		Bracket Instrument		Appelez-nous	-
4	WB1X538		Nut Mtg. Brkt.		Appelez-nous	-
5	WZ02X0528		Scr 8-32 M Phr 3/16 S		Appelez-nous	-
5	WB22X5085		Switch Oven		Appelez-nous	-
6	WB3X407		Knob Oven Switch		Appelez-nous	-
8	WB2X1608		Neon Lamp 118v				$ 31.65
8	WB2X3468		Neon Lamp 240v		Appelez-nous	-
9	WB2X3178		Sleeve - Lower Themostat		Appelez-nous	-
9	WB21X5320		Thermostat, Dual   (Replaces: WB24X176)		Appelez-nous	-
9	WB2X1949		Plate Instrument		Appelez-nous	-
9	WZ02X0528		Scr 8-32 M Phr 3/16 S		Appelez-nous	-
12	WB3X405		Knob Thermostat		Appelez-nous	-
15	WB2X3405		Bracket Timer		Appelez-nous	-
15	WB1X538		Nut Mtg. Brkt.		Appelez-nous	-
16	WB19M160CP		Timer Digital   (Replaces: WB19X5231)		Appelez-nous	-
16	WB1X540		Nut		Appelez-nous	-
17	WB2X2006		Clamp Harness		Appelez-nous	-
19	WB24X205		Switch, Latch Release		Appelez-nous	-
20	WB2X3429		Washer		Appelez-nous	-
21	WB3X218		Knob, Timer		Appelez-nous	-
22	WB2X1973		Deflector		Appelez-nous	-
23	WB7X782		Grille		Appelez-nous	-
23	WZ05X0132		Scr 8-32 T Hxw 5/16 S		Appelez-nous	-
26	WB1X544		Speednut - Mt. Trim To F		Appelez-nous	-
27	WZ04X0237		Screw		Appelez-nous	-
28	WB2X3291		Bracket Trim		Appelez-nous	-
28	WZ04X0372		Scr 6-20 Ab Hxw 3/8 S		Appelez-nous	-
28	WZ04X0369		Screw Mtg Trim		Appelez-nous	-
41	WB56X1377		Door Panel Cf		Appelez-nous	-
41	WB56X1380		Door Panel Ad		Appelez-nous	-
41	WB56X1379		Door Panel Ha		Appelez-nous	-
41	WB56X1378		Door Panel Fa		Appelez-nous	-
41	WB56X1376		Door Panel Wh		Appelez-nous	-
42	WB15X133		Handle		Appelez-nous	-
44	WB2X6243		Grommet Handle		Appelez-nous	-
45	WZ04X0350		Scr 10-16 B Hxw 5/8 S		Appelez-nous	-
46	WB1X439		Speednut Bracket		Appelez-nous	-
47	WB1X119		Washer Contoured		Appelez-nous	-
48	WZ04X0346		Ser. Mt. Liner (04-up)		Appelez-nous	-
49	WB55X420		Spacer Insulation		Appelez-nous	-
50	WB55X405		Door Liner		Appelez-nous	-
50	WB2X3408		Insulation		Appelez-nous	-
51	WB1X600		Scr Shoulder		Appelez-nous	-
51	WB55X429		Panel Inner		Appelez-nous	-
52	WB2X2940		Gasket Door		Appelez-nous	-
55	WB2X2616		Bracket Mt. Gasket		Appelez-nous	-
55	WZ04X0238		Scr 8-18 Ab Hw 1/2 S		Appelez-nous	-
56	WZ04X0304		Screw Mt. Duct		Appelez-nous	-
56	WB9X154		Strike Spring		Appelez-nous	-
58	WB2X2269		Stop Insulation		Appelez-nous	-
66	WB1X425		Screw		Appelez-nous	-
90	WB56X1029		Frame		Appelez-nous	-
91	WB7X783		Trim Bottom		Appelez-nous	-
91	WZ04X0237		Screw		Appelez-nous	-
92	WB10X120		Support Hinge Rh		Appelez-nous	-
92	WB10X121		Support Hinge Lh		Appelez-nous	-
93	WZ06X0086		Scr 10-24 M Hx 5/16 S		Appelez-nous	-
94	WB2X1406		Clamp Harness		Appelez-nous	-
95	WB2X1983		Spring Hinge Lever		Appelez-nous	-
96	WB2X2794		Sleeve Roller		Appelez-nous	-
96	WB2X3294		Roller		Appelez-nous	-
97	WB1X524		Screw		Appelez-nous	-
98	WB10X157		Hinge Lever Asm Lh		Appelez-nous	-
98	WB10X156		Hinge Lever Asm Rh		Appelez-nous	-
98	WB2X3166		Clip Shim		Appelez-nous	-
98	WB2X1117		Spring In Lever		Appelez-nous	-
98	WB2X1116		Stud In Lever		Appelez-nous	-
98	WB2X1115		Pin In Lever		Appelez-nous	-
99	WB2X1081		Pin Hinge		Appelez-nous	-
100	WB2X1082		Ring Retaining		Appelez-nous	-
101	WZ10X0017		Washer		Appelez-nous	-
102	WB9X132		Spring Door		Appelez-nous	-
103	WB2X3289		Link Door Spring		Appelez-nous	-
104	WB24X105		Switch		Appelez-nous	-
104	WB2X3421		Barrier		Appelez-nous	-
105	WB55X306		Bottom Inner		Appelez-nous	-
106	WB59X163		Channel Bottom		Appelez-nous	-
109	WB2X2401		Channel Side		Appelez-nous	-
110	WB49X329		Back Asm		Appelez-nous	-
111	WB2X2082		Bracket Trim		Appelez-nous	-
114	WB59X164		Side Inner		Appelez-nous	-
118	WB2X1981		Brace Latch		Appelez-nous	-
119	WB2X6426		Pad Transformer		Appelez-nous	-
119	WB55X303		Air Shield		Appelez-nous	-
120	WB26X5052		Motor, Fan		Appelez-nous	-
121	WB2X2001		Blade Fan, Upper		Appelez-nous	-
121	WB2X2002		Compression Ring		Appelez-nous	-
122	WZ05X0234		Screw Mt Switch		Appelez-nous	-
122	WB2X2846		Bracket Fan		Appelez-nous	-
123	WB55X304		Extension Side Rh		Appelez-nous	-
123	WB55X305		Extension Side Lh		Appelez-nous	-
124	WB2X3422		Gasket		Appelez-nous	-
127	WB2X2845		Cover Light		Appelez-nous	-
128	WB2X2842		Plate Adapter		Appelez-nous	-
130	WB2X3156		Guard Asm		Appelez-nous	-
131	WB49X268		Guard Terminal		Appelez-nous	-
132	WB49X223		Cap Terminal Guard		Appelez-nous	-
135	WZ04X0384		Screw Mtg End Cap		Appelez-nous	-
135	WB17X167		Block Term Distribution		Appelez-nous	-
138	WB59X165		Guard Wire		Appelez-nous	-
139	WB59X134		Insulation Guard Rh		Appelez-nous	-
140	WB2X3173		Cover Vent		Appelez-nous	-
141	WB59X170		Insulation Guard Lh		Appelez-nous	-
143	WB2X2853		Spacer		Appelez-nous	-
144	WB49X331		Case Top		Appelez-nous	-
146	WB24X199		Switch Thermal Fan		Appelez-nous	-
151	WB2X2847		Shield Wire		Appelez-nous	-
152	WB2X2861		Gusset		Appelez-nous	-
153	WB2X3425		Support Trim		Appelez-nous	-
161	WB2X2843		Clamp Conduit		Appelez-nous	-
161	WZ04X0294		Screw 8--18x1/2 Hex-wash		Appelez-nous	-
170	WB14X36		Latch Assembly		Appelez-nous	-
171	WZ04X0396		Scr 10-16 B Hxw 1/4 S		Appelez-nous	-
172	WZ02X0503		Screw		Appelez-nous	-
173	WB15X150		Handle Latch		Appelez-nous	-
173	WB1X438		Screw Washer Asm		Appelez-nous	-
174	WB2X6212		Pivot Stud		Appelez-nous	-
175	WB2X1800		Retainer Ring		Appelez-nous	-
176	WB3X434		Knob Latch		Appelez-nous	-
177	WG02A00753		Retainer Knob   (Replaces: WB2X2030)				$ 4.20
178	WB2X3157		Channel Latch		Appelez-nous	-
179	WB2X3158		Channel Locking		Appelez-nous	-
180	WB2X3159		Locking Pawl Asm		Appelez-nous	-
181	WB1X458		Screw, Mtg. Bracket		Appelez-nous	-
181	WB2X3160		Plate-mounting		Appelez-nous	-
182	WB24X183		Switch, Latch		Appelez-nous	-
184	WZ04X0397		Scr 6-32 C Flr 5/16 S		Appelez-nous	-
185	WB24X197		Solenoid		Appelez-nous	-
186	WB9X148		Spring-plunger		Appelez-nous	-
187	WB1X438		Screw Washer Asm		Appelez-nous	-
200	WB53X253		Oven Liner		Appelez-nous	-
200	WB2X2116		Insulation		Appelez-nous	-
200	WB2X3471		Clip Capillary Tube Oven		Appelez-nous	-
200	WB2X1125		Plug Button		Appelez-nous	-
201	WB9X88		Lockwasher		Appelez-nous	-
202	WG02F04576		Lamp Cover Asm   (Replaces: WB36X192)				$ 20.65
203	WZ04X0292		Screw Mt. Cover		Appelez-nous	-
204	WB2X1847		Washer Mt. Cover		Appelez-nous	-
205	WB2X1659		Speednut		Appelez-nous	-
206	WB24X175		Switch, Thermal		Appelez-nous	-
207	WZ04X0291		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
207	WB2X3165		Hanger-tls		Appelez-nous	-
208	WB2X3164		Plate		Appelez-nous	-
208	WB2X3163		Gasket-tls				$ 22.50
208	WZ04X0291		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
213	WB2X3393		Trim Clip		Appelez-nous	-
214	WZ04X0291		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
216	WB2X1977		Lamp Housing		Appelez-nous	-
218	WB8X176		Lamp Socket		Appelez-nous	-
221	WB48X80		Rack Oven		Appelez-nous	-
223	WB49X88		Broil Pan		Appelez-nous	-
224	WB48X5002		Broiler Pan Rack		Appelez-nous	-
226	WB38X74		Vent Asm		Appelez-nous	-
233	WB2X3230		Cover Plate-jack		Appelez-nous	-
250	WZ04X0291		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
250	UB323		Bake Unit 208/240v   (Replaces: WB44X200)			Immediately	$ 41.80
251	WZ04X0291		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
251	WB2X1543		Gasket - Broil		Appelez-nous	-
251	UT316		Broil Unit   (Replaces: WB44X185)			Immediately	$ 49.95
252	WB2X1810		Support Broil Unit		Appelez-nous	-
253	WZ04X0291		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
257	WB2X3452		Terminal Insulator		Appelez-nous	-
257	WB44X206		Mullion Unit		Appelez-nous	-
257	WB2X3293		Spacer Mullion		Appelez-nous	-
257	WB2X3328		Barrier		Appelez-nous	-
600	WB2X3292		Gasket		Appelez-nous	-
600	WB29X53		Smoke Eliminator Asm		Appelez-nous	-
