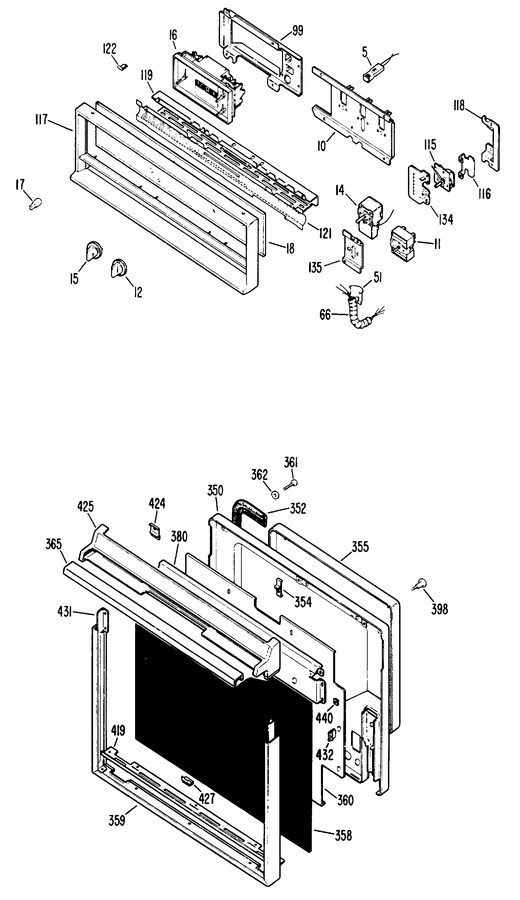

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 5 | WB2X3468 | Neon Lamp 240v |
|
- | |||||
| 10 | WB1X5220 | Nut Mtg Instrument Brkts |
|
- | |||||
| 10 | WB2X3454 | Bracket Instrument |
|
- | |||||
| 11 | WB22X5144 | Switch, Oven |
|
- | |||||
| 12 | WB3X410 | Knob Oven Switch |
|
- | |||||
| 14 | WB21X5320 | Thermostat, Dual (Replaces: WB24X176) |
|
- | |||||
| 14 | WB2X6937 | Sleeve |
|
- | |||||
| 15 | WB3X409 | Knob Thermostat |
|
- | |||||
| 16 | WB19X5282 | Timer Digital |
|
- | |||||
| 17 | WB3X459 | Knob Timer |
|
- | |||||
| 18 | WB36X5601 | Crystal |
|
- | |||||
| 51 | WB2X2843 | Clamp Conduit |
|
- | |||||
| 99 | WB2X7720 | Bracket Timer |
|
- | |||||
| 115 | WB20X52 | Circuit Board Asm Thermo |
|
- | |||||
| 116 | WB2X3148 | Bracket Circuit Board |
|
- | |||||
| 117 | WB7X596 | Trim |
|
- | |||||
| 118 | WB2X2407 | Bracket Meat Thermo |
|
- | |||||
| 119 | WB2X1973 | Deflector |
|
- | |||||
| 121 | WB7X782 | Grille |
|
- | |||||
| 122 | WB2X2006 | Clamp Harness |
|
- | |||||
| 134 | WB7X980 | Faceplate & Shaft Asm |
|
- | |||||
| 135 | WB2X1949 | Plate Instrument |
|
- | |||||
| 261 | WB10X120 | Support Hinge Rh |
|
- | |||||
| 350 | WB55X5320 | Door Liner |
|
- | |||||
| 350 | WB2X3408 | Insulation Door |
|
- | |||||
| 352 | WB2X2940 | Gasket Door |
|
- | |||||
| 354 | WB9X154 | Strike Spring |
|
- | |||||
| 355 | WB55X5300 | Panel Inner |
|
- | |||||
| 355 | WBO2X1965 | Reflector Foil |
|
- | |||||
| 358 | WB36X563 | Glass Black |
|
- | |||||
| 359 | WB7X1221 | Trim Door |
|
- | |||||
| 360 | WB55X420 | Spacer Insulation |
|
- | |||||
| 361 | WZ04X0425 | Screw |
|
- | |||||
| 362 | WB1X119 | Washer Screw |
|
- | |||||
| 365 | WB15X158 | Grip Asm Handle |
|
- | |||||
| 380 | WB7X1222 | Brace Top |
|
- | |||||
| 397 | WB1X5754 | Screw Mtg End Cap |
|
- | |||||
| 397 | WZ04X0384 | Screw Mtg End Cap |
|
- | |||||
| 398 | WB1X600 | Screw Shoulder |
|
- | |||||
| 412 | WB1X589 | Speednut Panel |
|
- | |||||
| 419 | WB2X3407 | Brace Bottom |
|
- | |||||
| 424 | WB2X3331 | Clamp Crystal |
|
- | |||||
| 425 | WB7X1220 | Trim Top Door |
|
- | |||||
| 427 | WB1X580 | Speednut |
|
- | |||||
| 431 | WB2X3339 | Brace Side Lh |
|
- | |||||
| 431 | WB2X3338 | Brace Side Rh |
|
- | |||||
| 432 | WB2X3341 | Speed Clip |
|
- | |||||
| 440 | WB1X585 | Speednut |
|
- | |||||
| 459 | WB1X537 | Screw |
|
- | |||||
| 461 | WB1X593 | Screw Mtg Clip |
|
- | |||||
| 32767 | WB1X500 | Terminal Screw |
|
- | |||||
| 32767 | WZ04X0372 | Scr 6-20 Ab Hxw 3/8 S |
|
- | |||||
| 32767 | WZ04X0255 | Scr 8-18x1 Ab Ovr 1/2 S |
|
- | |||||
| 32767 | WB1X422 | Scr 8-18 T Ihw 1/2 S |
|
- | |||||
| 32767 | 39-4574 | Manual Users |
|
- | |||||
| 32767 | WZ04X0396 | Scr 10-16 B Hxw 1/4 S |
|
- | |||||
| 32767 | WZ05X0134 | Scr 8-32 T Hxw 3/8 S |
|
- | |||||
| 32767 | WZ07X0035 | Nut Hex |
|
- | |||||
| 32767 | WB2X3408 | Insulation |
|
- | |||||
| 32767 | WZ10X0016 | Washer |
|
- | |||||
| 32767 | WB9X88 | Lockwasher |
|
- | |||||
| 32767 | WB1X448 | Washer |
|
- | |||||
| 32767 | WB2X3191 | Gasket |
|
- | |||||
| 32767 | 31-0409 | Install Instructions |
|
- | |||||
| 32767 | WB1X525 | Washer |
|
- | |||||
| 32767 | WB17X171 | Terminal Male & Female |
|
- | |||||
| 32767 | WBO2X2116 | Insulation |
|
- | |||||
| 32767 | WB1X284 | Scr 6-20 Ba Ihw 3/8 S |
|
- | |||||
| 32767 | WB1X438 | Screw & Washer Asm |
|
- | |||||
| 32767 | WZ05X0124 | Scr 4-40 D Hxw 5/8 S |
|
- | |||||
| 32767 | WZ05X0234 | Screw Mt Switch |
|
- | |||||
| 32767 | WZ04X0345 | Screw |
|
- | |||||
| 32767 | 31-0541 | Pm Manual Mini |
|
- | |||||
| 32767 | WZ04X0397 | Scr 6-32 C Flr 5/16 S |
|
- | |||||
| 32767 | WS01A02255 | Scr 8-18 Ba Ihw 3/8 S (Replaces: WB1X536) |
|
$ 3.97 | |||||
| 32767 | WB2X3251 | Insulation |
|
- | |||||
| 32767 | WZ05X0184 | Scr 6-20 Bt Phr 3/8 S |
|
- | |||||
| 32767 | WZ05X0132 | Scr 8-32 T Hxw 5/16 S |
|
- | |||||
| 32767 | WZ04X0228 | Scr 8-18 B Rdr 3/16 S |
|
- | |||||
| 32767 | WZ02X0528 | Scr 8-32 M Phr 3/16 S |
|
- |
