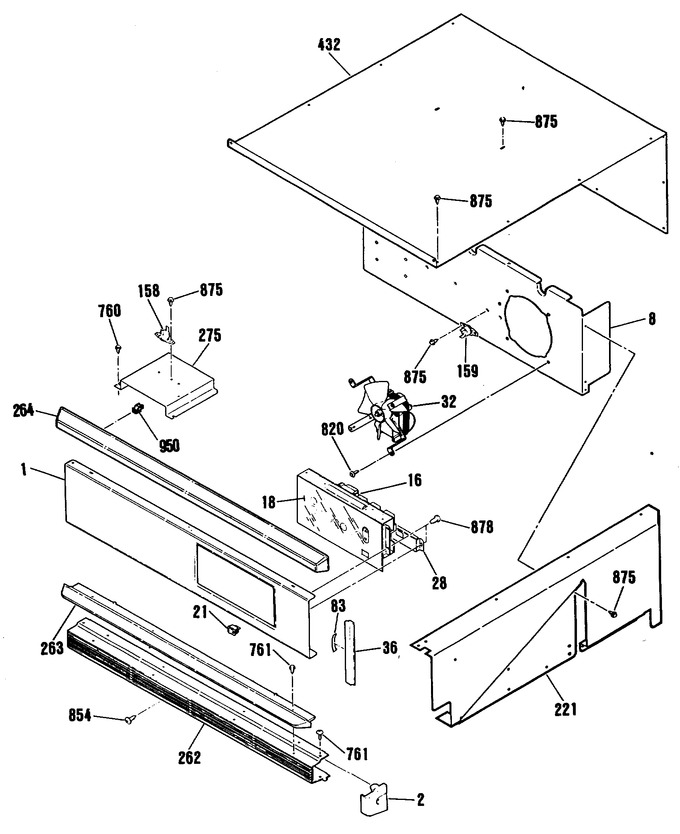

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB36K5334		Control Panel		Appelez-nous	-
2	WB36K5107		Vent Trim End Cap-lt-wht		Appelez-nous	-
2	WB36K5108		Vent Trim End Cap-rt-wht		Appelez-nous	-
8	WB2K5257		Fan Support		Appelez-nous	-
16	WB27K5107		Erc Ii		Appelez-nous	-
18	WB27K5126		Clock Plate		Appelez-nous	-
21	WB24K5036		Rocker Switch-white		Appelez-nous	-
28	WB2K5156		Light Switch Brackt		Appelez-nous	-
32	WB26K5045		Fan		Appelez-nous	-
36	WB7K5056		Cnt Pnl End Trim-lt-wht		Appelez-nous	-
36	WB7K5055		Cnt Pnl End Trim-rt-wht		Appelez-nous	-
83	WB9K5008		End Trim Spring		Appelez-nous	-
158	WB24K5033		Limit Switch		Appelez-nous	-
159	WG02F04523		Limit Switch   (Replaces: WB24K5085)				$ 28.58
221	WB63K5082		Side Extenstion-rt-upper		Appelez-nous	-
221	WB63K5083		Side Extension-lt-upper		Appelez-nous	-
262	WB7K5201		Vert Side Trm-rt-wht		Appelez-nous	-
262	WB7K5241		Vent Trim (satin)		Appelez-nous	-
262	WB7K5200		Vert Side Trm-lt-wht		Appelez-nous	-
263	WB7K5058		Trim-i Brow Gray		Appelez-nous	-
264	WB7K5199		Cont Pnl Top Trm-wht		Appelez-nous	-
275	WB34K5078		Vent Box Cover		Appelez-nous	-
432	WB63K5081		Top Cover		Appelez-nous	-
760	WB1K5028		Screw		Appelez-nous	-
761	WB1K5029		Screw-black		Appelez-nous	-
761	WB1K5062		Screw-brt. Ni.		Appelez-nous	-
820	WB1X1424		Screw		Appelez-nous	-
854	WB1X1164		Screw-brt. Ni.		Appelez-nous	-
875	WB1K5057		Screw		Appelez-nous	-
878	WB1X1317		Screw		Appelez-nous	-
950	WB1K5135		Cable Clip		Appelez-nous	-
999	WB18K5210		Lock Mtr Wire Harness		Appelez-nous	-
999	WB18K5450		Main Wire Harness		Appelez-nous	-
999	39-4688		Use & Care Manual		Appelez-nous	-
999	31-13128		Mini Manual W/wire Diag		Appelez-nous	-
999	31-10080		Installation Instruction		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
