SELECT A DIAGRAM

1 - Component Group

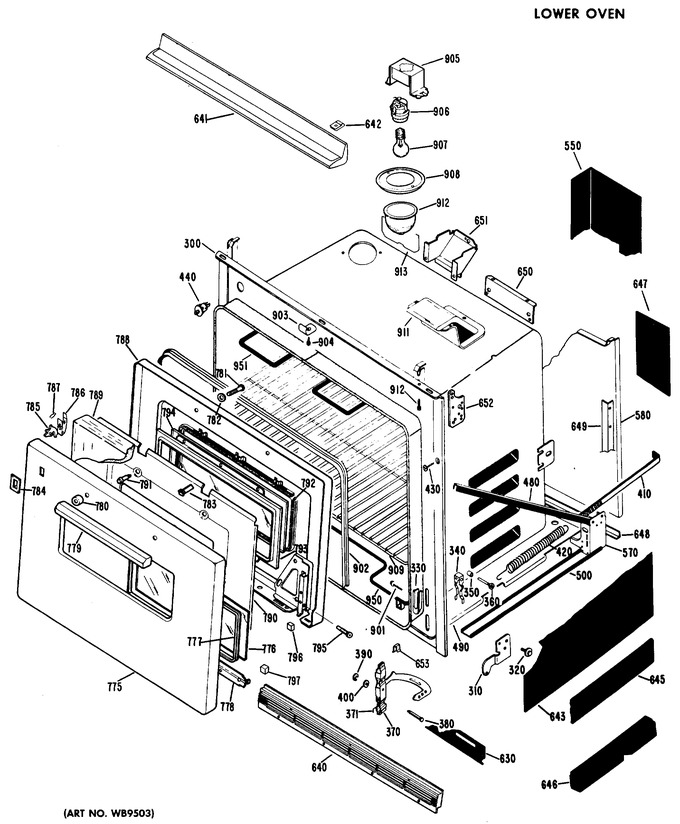

2 - Lover Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
300	WB56X1326		Frame		Appelez-nous	-
310	WB10X154		Hinge Support - Rh		Appelez-nous	-
310	WB10X155		Hinge Support - Lh		Appelez-nous	-
320	WZ06X0086		Screw Mtg. Support		Appelez-nous	-
330	WB2X1460		Hinge Lever Guide		Appelez-nous	-
340	WB2X1461		Spring - Hinge Lever		Appelez-nous	-
350	WB2X1462		Roller		Appelez-nous	-
360	WB1X352		Screw Mtg. Roller		Appelez-nous	-
370	WB10X151		Hinge Lever Kit Rh & Lh		Appelez-nous	-
371	WB9X150		Stop Spring		Appelez-nous	-
380	WG02A00596		Hinge Pin   (Replaces: WB2X6195)				$ 4.20
390	WB2X1082		Hinge Pin Retainer		Appelez-nous	-
400	WZ10X0017		Washer		Appelez-nous	-
410	WB2X3289		Link		Appelez-nous	-
420	WB9X151		Spring		Appelez-nous	-
430	WB1X295		Screw 1 1/4"		Appelez-nous	-
430	WB1X292		Screw 3/4"		Appelez-nous	-
440	WB24X105		Oven Light Switch		Appelez-nous	-
480	WB1X458		Screw Mtg. Channel		Appelez-nous	-
480	WB2X2401		Channel Side		Appelez-nous	-
490	WB59X69		Bottom Guard		Appelez-nous	-
500	WB1X252		Screw Mtg. Channel		Appelez-nous	-
500	WB59X107		Channel		Appelez-nous	-
550	WB59X64		Terminal Guard		Appelez-nous	-
570	WB59X108		Gusset		Appelez-nous	-
580	WB59X136		Back		Appelez-nous	-
630	WB2X3467		Support Trim		Appelez-nous	-
640	WZ04X0349		Screw Mtg. Trim		Appelez-nous	-
640	WB7X1236		Trim		Appelez-nous	-
641	WB7X1124		Trim Middle		Appelez-nous	-
642	WB2X3298		Clip		Appelez-nous	-
642	WB1X537		Screw Mtg. Trim		Appelez-nous	-
643	WB59X105		Case Side Rh & Lh		Appelez-nous	-
645	WB59X106		Cover Side		Appelez-nous	-
646	WB2X2063		Spacer Bottom		Appelez-nous	-
647	WB59X137		Cover		Appelez-nous	-
648	WB59X71		Angle		Appelez-nous	-
649	WB2X3299		Angle		Appelez-nous	-
650	WB2X3300		Spacer		Appelez-nous	-
651	WB2X3301		Wire Guard		Appelez-nous	-
652	WB2X3302		Support Bracket		Appelez-nous	-
653	WB2X3403		Shim		Appelez-nous	-
775	WB56X1357		Panel - Cf		Appelez-nous	-
775	WB56X1858		Panel - Fa		Appelez-nous	-
775	WB56X1360		Panel - Ad		Appelez-nous	-
775	WB56X1359		Panel - Ha		Appelez-nous	-
775	WB56X1356		Panel - Wh		Appelez-nous	-
776	WB36X430		Crystal		Appelez-nous	-
777	WB7X1031		Window Trim		Appelez-nous	-
778	WB2X3282		Window Bracket		Appelez-nous	-
779	WB15X133		Handle		Appelez-nous	-
780	WB2X6243		Handle Spacer		Appelez-nous	-
781	WZ04X0298		Handle Screw		Appelez-nous	-
782	WB1X119		Handle Washer		Appelez-nous	-
783	WB2X6204		Panel Spacer		Appelez-nous	-
784	WB7X5486		Trim		Appelez-nous	-
785	WB2X5410		Toggle		Appelez-nous	-
786	WB9X5083		Spring		Appelez-nous	-
787	WB2X5217		Kink		Appelez-nous	-
788	WB55X402		Liner		Appelez-nous	-
789	WB2X3283		Liner Insulation		Appelez-nous	-
790	WB55X403		Insulation Guard		Appelez-nous	-
791	WB1X547		Screw Mtg. Guard		Appelez-nous	-
792	WB2X3048		Window - Gasket		Appelez-nous	-
793	WB2X3284		Window Frame		Appelez-nous	-
795	WB1X558		Socket Screw		Appelez-nous	-
796	WB2X3285		Socket Pad		Appelez-nous	-
797	WB2X3308		Pad		Appelez-nous	-
901	WB1X556		Screw Mtg. Liner		Appelez-nous	-
902	WB2X2058		Silicone Gasket		Appelez-nous	-
903	WB2X3393		Trim Clip		Appelez-nous	-
904	WZ04X0291		Screw		Appelez-nous	-
905	WB2X3477		Bracket Support		Appelez-nous	-
906	WB8X191		Receptacle		Appelez-nous	-
908	WB2X3448		Trim		Appelez-nous	-
909	WB48X73		Shelf		Appelez-nous	-
911	WB38X62		Vent		Appelez-nous	-
911	WB1X556		Screw Mtg. Vent		Appelez-nous	-
911	WB38X61		Gasket Vent		Appelez-nous	-
912	WG02F04576		Lamp Cover   (Replaces: WB36X389)				$ 20.65
913	WB2X2885		Lamp Cover Clip		Appelez-nous	-
950	WB44X192		Bake Unit		Appelez-nous	-
951	UT316		Broil Unit   (Replaces: WB44X180)			Immediately	$ 49.95
951	WB2X599		Capillary Tube Clip		Appelez-nous	-
951	WB2X1452		Support Broil Unit		Appelez-nous	-
951	WB2X1543		Gasket Broil Unit		Appelez-nous	-
951	WZ05X0128		Screw Mtg. Support		Appelez-nous	-
