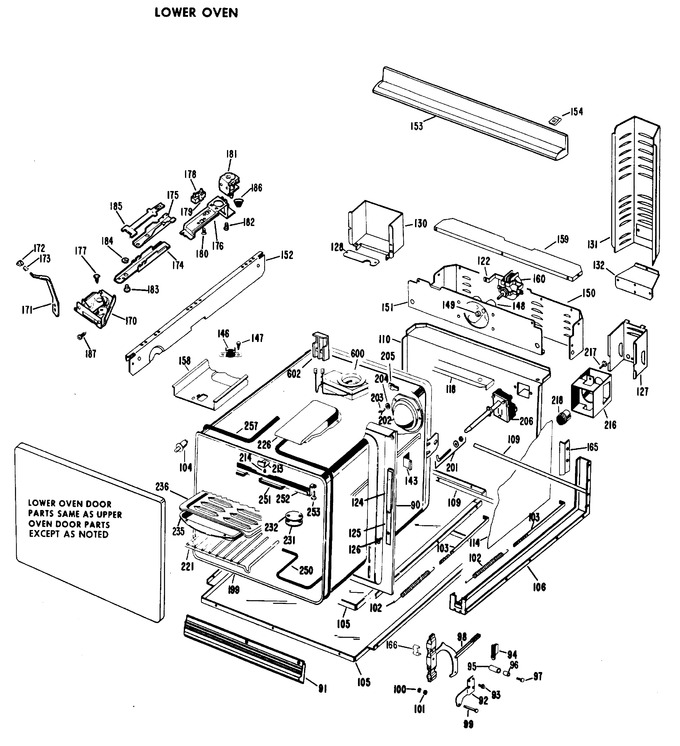

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Upper Oven
2 - Lower Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 90 | WB56X1327 | Frame Asm. |
|
- | |||||
| 91 | WB7X934 | Bottom |
|
- | |||||
| 91 | WZ04X0349 | Scrwe Mtg. Bottom Trim |
|
- | |||||
| 92 | WB10X154 | Hinge Support-rh |
|
- | |||||
| 92 | WB10X155 | Hinge Support-lh |
|
- | |||||
| 93 | WZ06X0086 | Screw Mtg. Support |
|
- | |||||
| 94 | WB2X3303 | Hinge Lever Guide |
|
- | |||||
| 95 | WB2X3305 | Sleeve |
|
- | |||||
| 96 | WB2X3304 | Roller |
|
- | |||||
| 97 | WB1X524 | Screw |
|
- | |||||
| 98 | WB10X158 | Hinge Lever-rh & Lh |
|
- | |||||
| 99 | WG02A00596 | Hinge (Replaces: WB2X6195) |
|
$ 4.20 | |||||
| 100 | WB2X1082 | Hinge Pin Retainer |
|
- | |||||
| 101 | WB10X17 | Washer |
|
- | |||||
| 102 | WB9X156 | Door Spring |
|
- | |||||
| 103 | WB2X3289 | Link |
|
- | |||||
| 104 | WB24X105 | Switch Door |
|
- | |||||
| 104 | WB2X3421 | Barrier, Switch |
|
- | |||||
| 105 | WB55X302 | Bottom Outer Inner |
|
- | |||||
| 106 | WB59X163 | Channel & Spacer-rh & Lh |
|
- | |||||
| 109 | WB2X2401 | Side Brace Rh & Lh |
|
- | |||||
| 110 | WB49X327 | Back |
|
- | |||||
| 114 | WB59X164 | Side Inner-rh & Lh |
|
- | |||||
| 118 | WB2X2083 | Brace Latch |
|
- | |||||
| 122 | WB2X2846 | Bracket Mtg. Fan |
|
- | |||||
| 122 | WZ05X0345 | Screw Mt. Motor To Brkt. |
|
- | |||||
| 124 | WB2X3422 | Gasket |
|
- | |||||
| 127 | WB2X2845 | Cover Light |
|
- | |||||
| 128 | WB2X2842 | Plate |
|
- | |||||
| 130 | WB2X3156 | Guard Thermos. |
|
- | |||||
| 131 | WB49X268 | Guard |
|
- | |||||
| 132 | WB49X223 | Cap Therminal Guard |
|
- | |||||
| 143 | WB2X2104 | Spacer-frame |
|
- | |||||
| 146 | WB24X199 | Thermal Fan Switch |
|
- | |||||
| 148 | WB2X2911 | Fan Blade |
|
- | |||||
| 149 | WB2X2002 | Compression Ring |
|
- | |||||
| 150 | WB49X269 | Guard Fan |
|
- | |||||
| 151 | WB49X275 | Partition Fan |
|
- | |||||
| 152 | WB49X382 | Extension Side |
|
- | |||||
| 153 | WB49X355 | Deflector |
|
- | |||||
| 153 | WB7X1125 | Trim Middle |
|
- | |||||
| 154 | WB2X3298 | Nut |
|
- | |||||
| 154 | WB1X537 | Screw Mtg. Trim |
|
- | |||||
| 158 | WB49X356 | Air Channel |
|
- | |||||
| 159 | WB49X357 | Cover Fan |
|
- | |||||
| 160 | WB26X5052 | Fan Motor Lower |
|
- | |||||
| 165 | WB2X3299 | Angle |
|
- | |||||
| 166 | WB2X3403 | Shim |
|
- | |||||
| 170 | WB14X36 | Latch Assembly |
|
- | |||||
| 171 | WB15X151 | Handle, Lower |
|
- | |||||
| 171 | WB15X150 | Handle, Upper |
|
- | |||||
| 171 | WB1X438 | Screw Mt. Handle |
|
- | |||||
| 172 | WB3X434 | Knob |
|
- | |||||
| 173 | WG02A00753 | Retainer Knob (Replaces: WB2X2030) |
|
$ 4.20 | |||||
| 174 | WB2X3157 | Channel-latch |
|
- | |||||
| 175 | WB2X3158 | Channel-locking |
|
- | |||||
| 176 | WB2X3160 | Plate Mounting Upper Oven |
|
- | |||||
| 176 | WB2X3177 | Plate-mounting-lower Oven |
|
- | |||||
| 176 | WB1X458 | Screw Mtg. Plates |
|
- | |||||
| 177 | WZ04X0396 | Screw Channel To Latch |
|
- | |||||
| 178 | WB24X183 | Switch-latch |
|
- | |||||
| 178 | WB2X3426 | Barrier |
|
- | |||||
| 180 | WZ04X0397 | Screw Mt. Clip |
|
- | |||||
| 181 | WB24X197 | Solenoid-upper Oven |
|
- | |||||
| 181 | WB24X5096 | Solenoid-lower Oven |
|
- | |||||
| 182 | WB1X438 | Screw Mt. Solenoid-upper |
|
- | |||||
| 182 | WZ04X0374 | Screw Mt. Solenoid-lower |
|
- | |||||
| 183 | WB2X6212 | Pivot Stud |
|
- | |||||
| 184 | WB2X1800 | Retaining Ring |
|
- | |||||
| 185 | WB2X3159 | Pawl-locking |
|
- | |||||
| 186 | WB9X148 | Spring |
|
- | |||||
| 187 | WZ02X0503 | Screw Mt. Latch |
|
- | |||||
| 199 | WB2X2116 | Oven Insulation |
|
- | |||||
| 199 | WB2X3471 | Clip Tube Support |
|
- | |||||
| 199 | WB2X1125 | Plug Button Cap. Tube Opening |
|
- | |||||
| 199 | WB53X252 | Oven Liner |
|
- | |||||
| 201 | WB9X88 | Oven Hook Pkg. |
|
- | |||||
| 202 | WG02F04576 | Lamp Cover Asm. (Replaces: WB36X192) |
|
$ 20.65 | |||||
| 203 | WZ04X0292 | Screw Mtg. Cover |
|
- | |||||
| 204 | WB2X1847 | Washer Mtg. Cover |
|
- | |||||
| 205 | WB2X1659 | Clip Mtg. Cover |
|
- | |||||
| 206 | WB24X175 | Thermal Switch |
|
- | |||||
| 213 | WB2X3393 | Trim Clip |
|
- | |||||
| 214 | WZ04X0231 | Screw Mtg. Clip |
|
- | |||||
| 216 | WB2X1977 | Lamp Housing |
|
- | |||||
| 217 | WZ04X0231 | Screw Mtg. Housing |
|
- | |||||
| 218 | WB8X176 | Lamp Socket |
|
- | |||||
| 221 | WB48X85 | Rack Oven |
|
- | |||||
| 226 | WB38X75 | Vent |
|
- | |||||
| 231 | WB2X818 | Vent Cover |
|
- | |||||
| 232 | WB2X1623 | Vent Cover Gasket |
|
- | |||||
| 232 | WZ04X0291 | Screw Mtg. Cover |
|
- | |||||
| 235 | WB49X75 | Broil Pan Small |
|
- | |||||
| 236 | WB48X47 | Broil Pan Rack Small |
|
- | |||||
| 250 | WZ04X0291 | Screw Mtg. Unit |
|
- | |||||
| 250 | UB323 | Bake Unit (Replaces: WB44X200) |
|
Immediately | $ 41.80 | ||||
| 251 | WZ04X0291 | Screw Mtg. Unit |
|
- | |||||
| 251 | WB2X1543 | Gasket-broil |
|
- | |||||
| 251 | UT316 | Broil Unit (Replaces: WB44X185) |
|
Immediately | $ 49.95 | ||||
| 252 | WB2X1810 | Support Broil |
|
- | |||||
| 253 | WZ04X0291 | Screw Mtg. Support |
|
- | |||||
| 257 | WB44X207 | Mullion Unit |
|
- | |||||
| 257 | WB2X3452 | Insulation Terminals Mull. Unit |
|
- | |||||
| 257 | WB2X3328 | Barrier |
|
- | |||||
| 257 | WB2X3293 | Spacer Mullion |
|
- | |||||
| 600 | WB29X53 | Smoke Eliminator |
|
- | |||||
| 600 | WB2X3292 | Gasket Eliminator |
|
- |
