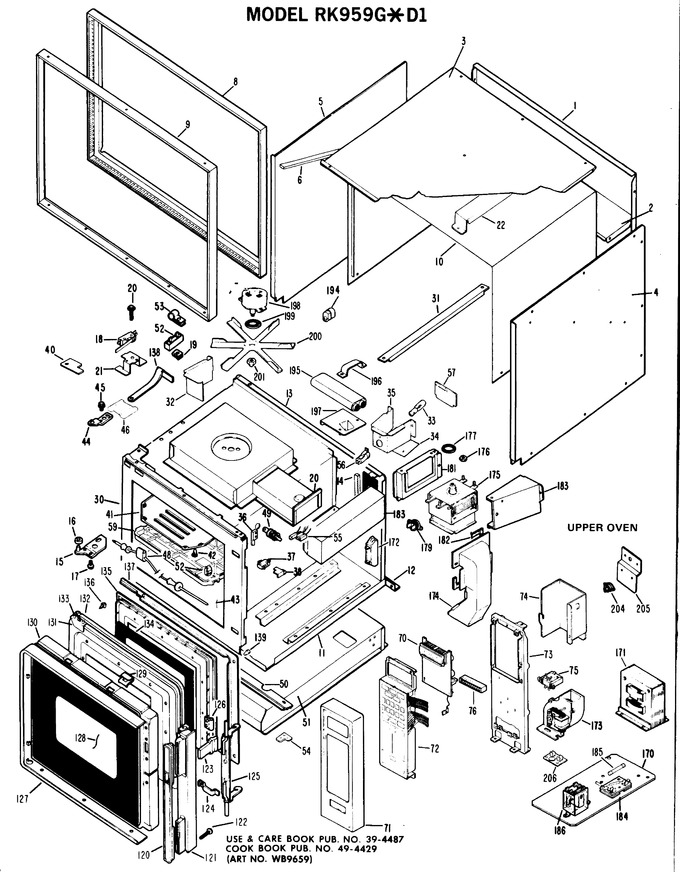

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Upper Oven
2 - Lower Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB49X5218 | Outer Case Back |
|
- | |||||
| 2 | WB56X5754 | Baffle Air Rear |
|
- | |||||
| 3 | WB2X1422 | Harness Clamp |
|
- | |||||
| 3 | WB49X5219 | Outer Case Top (07 - Up) |
|
- | |||||
| 4 | WB56X5756 | Outer Case Side Rh |
|
- | |||||
| 5 | WB56X5757 | Outer Case Side Lh |
|
- | |||||
| 6 | WB56X5758 | Baffle Air Side Rh - Lh |
|
- | |||||
| 6 | WB2X6659 | Pad |
|
- | |||||
| 8 | WB56X5792 | Frame Outr |
|
- | |||||
| 9 | WZ04X0322 | Scr 8 A Ihw 3/8 S |
|
- | |||||
| 9 | WB56X5760 | Trim Frame |
|
- | |||||
| 10 | WB56X5838 | Case Outer |
|
- | |||||
| 11 | WB49X5151 | Base Assembly |
|
- | |||||
| 12 | WB2X6658 | Angle Stop |
|
- | |||||
| 13 | WB49X5217 | Back Assembly, Case |
|
- | |||||
| 13 | WB2X6486 | Pad (cut To Size)mounts |
|
- | |||||
| 14 | WB2X6404 | Gasket (cut To Size) |
|
- | |||||
| 15 | WB10X5113 | Bracket, Hinge Lower |
|
- | |||||
| 16 | WB2X6473 | Washer |
|
- | |||||
| 17 | WB1X5471 | Scr 8-18 Ab T 15/32 S |
|
- | |||||
| 18 | WB24X5102 | Switch Monitor |
|
- | |||||
| 19 | WB2X6617 | Angle Spacer, Switch |
|
- | |||||
| 19 | WB2X6490 | Barrier |
|
- | |||||
| 20 | WZ05X0234 | Screw Mt Switch |
|
- | |||||
| 21 | WB2X6697 | Bracket, Door Switch |
|
- | |||||
| 22 | WB2X3435 | Slide Top |
|
- | |||||
| 30 | WB53X5081 | Cavity And Faceplate (wi |
|
- | |||||
| 31 | WB49X5153 | Brace Extension |
|
- | |||||
| 32 | WB2X6853 | Baffle |
|
- | |||||
| 32 | WB2X6857 | Pad |
|
- | |||||
| 33 | WX12X1560 | Lamp (25t8dc) |
|
- | |||||
| 34 | WB2X6855 | Shield (film) |
|
- | |||||
| 35 | WB2X6854 | Shield, Lamp |
|
- | |||||
| 36 | WB10X5121 | Strike Latch |
|
- | |||||
| 37 | WB2X6699 | Barrier Switch |
|
- | |||||
| 37 | WB24X5101 | Switch Latch Upper |
|
- | |||||
| 37 | WB24X5109 | Switch, Latch Lower |
|
- | |||||
| 37 | WZ05X0240 | Screw, Mtg. Switch |
|
- | |||||
| 38 | WB2X6698 | Cover, Switch (2 Each) |
|
- | |||||
| 40 | WB2X6557 | Barrier |
|
- | |||||
| 41 | WB56X5639 | Cover Sitbr |
|
- | |||||
| 42 | WB1X5453 | Fastener |
|
- | |||||
| 43 | WB48X5056 | Shelf Oven |
|
- | |||||
| 44 | WB10X5110 | Hinge Arm |
|
- | |||||
| 45 | WB1X435 | Clip Mtg Jewel |
|
- | |||||
| 46 | WB10X5132 | Stop Door |
|
- | |||||
| 48 | WB20X5041 | Probe |
|
- | |||||
| 49 | WB20X5042 | Receptacle Probe |
|
- | |||||
| 50 | WB1X5471 | Scr 8-18 Ab T 15/32 S |
|
- | |||||
| 50 | WB2X6667 | Rail, Stop |
|
- | |||||
| 51 | WB49X5184 | Slide, Bottom |
|
- | |||||
| 52 | WB2X6723 | Bracket, Mtg. Resistor |
|
- | |||||
| 52 | WB27X5071 | Resistor |
|
- | |||||
| 53 | WB2X6609 | Clamp Harness |
|
- | |||||
| 54 | WB2X3436 | Stop Slide |
|
- | |||||
| 55 | WB18X5053 | Housing Terminal |
|
- | |||||
| 56 | WB8X5084 | Socket, Lamp |
|
- | |||||
| 57 | WB2X6856 | Cover |
|
- | |||||
| 58 | WB2X6827 | Support Rack |
|
- | |||||
| 59 | WB48X5058 | Rack Meal |
|
- | |||||
| 70 | WB27X5172 | Smart Board |
|
- | |||||
| 70 | WB1X386 | Clamp Harness |
|
- | |||||
| 71 | WZ04X0345 | Screw 8-18x5/8 Hxw |
|
- | |||||
| 71 | WB1X5476 | Speednut, Mtg. Panel |
|
- | |||||
| 71 | WB1X365 | Speednut |
|
- | |||||
| 71 | WZ04X0249 | Scr 8-18 Ab Ovr 3/4 S |
|
- | |||||
| 71 | WB36X5452 | Control Trim |
|
- | |||||
| 72 | WB27X5182 | Key Panel Asm |
|
- | |||||
| 73 | WB2X6997 | Frame Control |
|
- | |||||
| 74 | WB2X7051 | Cover Smart Board |
|
- | |||||
| 75 | WB27X5170 | Transformer, Filament |
|
- | |||||
| 76 | WB2X7000 | Retainer, Connector Bloc |
|
- | |||||
| 76 | WB17X5058 | Connect Blck |
|
- | |||||
| 120 | WB15X5114 | Handle Dobr |
|
- | |||||
| 121 | WB7X5635 | Trim Handle |
|
- | |||||
| 122 | WB1X5462 | Screw Mtg. Handle - Trim |
|
- | |||||
| 123 | WB3X5589 | Button Latch |
|
- | |||||
| 124 | WB2X6644 | Spring Latch |
|
- | |||||
| 125 | WB10X5112 | Latch Bar As |
|
- | |||||
| 126 | WB2X6580 | Shim |
|
- | |||||
| 126 | WB10X5111 | Hinge Latch |
|
- | |||||
| 126 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 127 | WS01A01150 | Screw (cr) (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 127 | WB7X5634 | Trim, Door |
|
- | |||||
| 128 | WB36X5375 | Window Outer |
|
- | |||||
| 129 | WB2X6643 | Clip, Window |
|
- | |||||
| 130 | WB56X5686 | Panel Door |
|
- | |||||
| 131 | WB55X5227 | Linr Choke A |
|
- | |||||
| 132 | WB2X6700 | Gasket Door Outer |
|
- | |||||
| 133 | WB2X6476 | Gasket - Small |
|
- | |||||
| 134 | WB2X6474 | Pad. Window (4 Ea)(cut T |
|
- | |||||
| 134 | WB36X5415 | Crystal Innr |
|
- | |||||
| 135 | WB55X5232 | Choke Cover |
|
- | |||||
| 136 | WB1X5518 | Scr 8-16 Ab Plt 11/64 S |
|
- | |||||
| 137 | WS01A01150 | Screw (cr) (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 137 | WB7X5643 | Trim Filler, Inner Door |
|
- | |||||
| 138 | WB10X5122 | Lever Door |
|
- | |||||
| 139 | WB2X6909 | Bumper |
|
- | |||||
| 170 | WB2X7049 | Plate Mtg. Components |
|
- | |||||
| 171 | WB27X5096 | Transformer, Hi-voltage |
|
- | |||||
| 172 | 11QBP0235 | Rectifier (Replaces: WB27X5070) |
|
$ 15.33 | |||||
| 172 | WB1X5510 | Scr 8-18 B T 11/16 S |
|
- | |||||
| 172 | WB2X6524 | Sleeve |
|
- | |||||
| 172 | WB2X6651 | Speednut |
|
- | |||||
| 173 | WB26X5035 | Motor, Blower |
|
- | |||||
| 173 | WB1X453 | Screw & Washer |
|
- | |||||
| 173 | WB2X3191 | Gasket |
|
- | |||||
| 173 | WB2X5784 | Hanger, Tls |
|
- | |||||
| 174 | WB2X6775 | Duct, Blower |
|
- | |||||
| 175 | WB18X5048 | Hi Voltage Wire |
|
- | |||||
| 175 | WB27X5144 | Magnetron |
|
- | |||||
| 176 | WB1X5271 | Nut, Mt. Magnetron |
|
- | |||||
| 177 | WB2X6046 | Rf Gasket |
|
- | |||||
| 179 | WB27X5218 | Thermostat |
|
- | |||||
| 179 | WB1X5347 | Screw, Mt. Thermostat |
|
- | |||||
| 179 | WB2X6450 | Sleeve |
|
- | |||||
| 181 | WB2X6756 | Duct Front |
|
- | |||||
| 182 | WB2X6755 | Gasket (cut To Size) |
|
- | |||||
| 183 | WB2X6757 | Duct, Rear |
|
- | |||||
| 184 | WB27X5193 | Varistor |
|
- | |||||
| 185 | CF15FB | Fuse (Replaces: WB27X7) |
|
Immediately | $ 3.63 | ||||
| 186 | WB27X5108 | Relay |
|
- | |||||
| 194 | WB2X6571 | Strain Relief |
|
- | |||||
| 195 | WB27X5120 | Capacitor |
|
- | |||||
| 196 | WB2X6393 | Strap, Capacitor |
|
- | |||||
| 197 | WB2X6758 | Bracket, Capacitor |
|
- | |||||
| 198 | WB26X5039 | Motor, Stirrer |
|
- | |||||
| 199 | WB2X6480 | Gasket |
|
- | |||||
| 200 | WB2X6479 | Stirrer, Mode |
|
- | |||||
| 201 | WB1X5450 | Nut, Cap Mt. Stirrer |
|
- | |||||
| 201 | WB1X586 | Speednut Mtg. Stirrer |
|
- | |||||
| 202 | WB2X6491 | Gasket (cut To Size) |
|
- | |||||
| 202 | WB1X358 | Speednut |
|
- | |||||
| 204 | WB27X5085 | Triac |
|
- | |||||
| 205 | WB2X6829 | Bracket Mt Triac |
|
- | |||||
| 206 | WB2X7050 | Board Asm. |
|
- |
