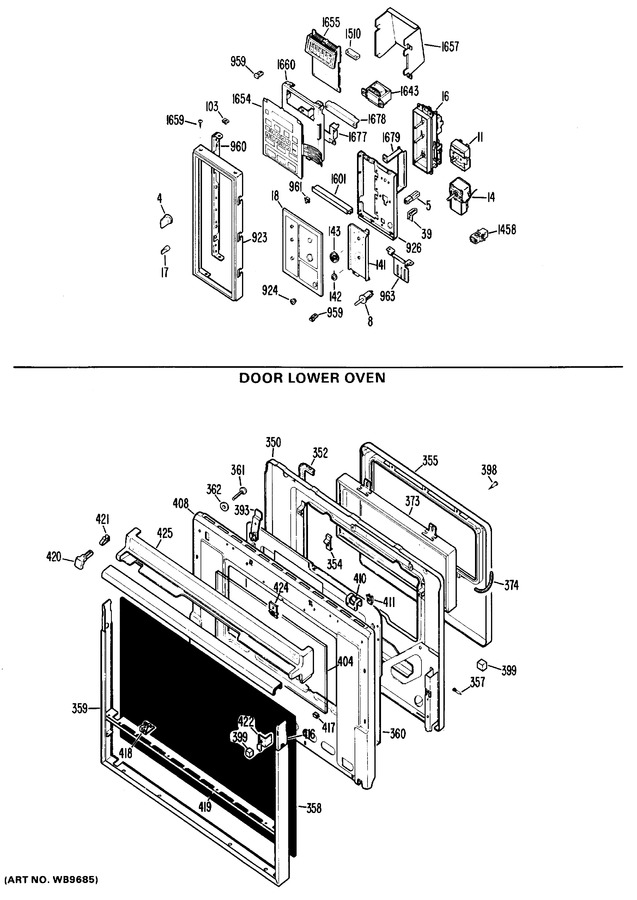

SELECT A DIAGRAM

1 - Door Lower Oven


2 - Microwave Oven


3 - Lower Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	WB3X5618		Knob		Appelez-nous	-
5	WB2X1608		Neon Lamp 118v				$ 31.65
5	WB2X3468		Neon Lamp 240v		Appelez-nous	-
8	WB24X108		Switch, Latch Release		Appelez-nous	-
11	WB22X5116		Switch, Oven		Appelez-nous	-
14	WB24X234		Thermostat, Dual		Appelez-nous	-
16	WB19X5270		Timer		Appelez-nous	-
17	WB3X5630		Knob Timer		Appelez-nous	-
18	WB36X5516		Crystal		Appelez-nous	-
18	WB2X3232		Pad		Appelez-nous	-
34	WB8X5086		Socket Lamp		Appelez-nous	-
39	WB2X6624		Bracket Lamp Neon		Appelez-nous	-
103	WB1X528		Speednut		Appelez-nous	-
141	WB4X5110		Faceplate		Appelez-nous	-
142	WB2X7267		Pointer & Sleeve Thermo		Appelez-nous	-
143	WB2X7268		Pointer & Sleeve Oven		Appelez-nous	-
148	WZ04X0237		Screw		Appelez-nous	-
305	WB2X6653		Speednut		Appelez-nous	-
313	WB26X5052		Motor, Fan		Appelez-nous	-
350	WB2X3312		Insulation Door		Appelez-nous	-
350	WB2X3314		Reflector Panel		Appelez-nous	-
350	WB55X5247		Door Liner		Appelez-nous	-
352	WB2X3138		Gasket Door		Appelez-nous	-
354	WB9X154		Strike Spring		Appelez-nous	-
355	WB2X2276		Reflector Foil		Appelez-nous	-
355	WB2X3313		Insulation Door		Appelez-nous	-
355	WB55X5246		Panel Inner		Appelez-nous	-
357	WB1X558		Screw Nail Point		Appelez-nous	-
358	WB36X557		Glass Black		Appelez-nous	-
359	WB7X1150		Trim Frame-lower Door		Appelez-nous	-
360	WB49X354		Guard Insulation		Appelez-nous	-
361	WZ04X0425		Screw		Appelez-nous	-
362	WB1X119		Washer Contoured		Appelez-nous	-
365	WB15X5140		Grip Asm Handle		Appelez-nous	-
373	WB36X5495		Window Pack		Appelez-nous	-
374	WB2X3048		Gasket Window		Appelez-nous	-
393	WB9X153		Spring Toggle		Appelez-nous	-
398	WB1X600		Scr Shoulder		Appelez-nous	-
399	WB2X3285		Pad		Appelez-nous	-
404	WB36X540		Crystal Window		Appelez-nous	-
408	WB2X7208		Reflector Panel		Appelez-nous	-
408	WB55X419		Panel Middle Door		Appelez-nous	-
410	WB2X3310		Bracket Panel		Appelez-nous	-
411	WB1X439		Speednut Bracket		Appelez-nous	-
416	WB2X3334		Brace Side Rh		Appelez-nous	-
416	WB2X3335		Brace Side Lh		Appelez-nous	-
417	WB2X3332		Clip Crystal		Appelez-nous	-
418	WB2X3333		Bracket Crystal		Appelez-nous	-
419	WB2X3336		Brace Bottom		Appelez-nous	-
420	WB2X3337		Plunger Door Light		Appelez-nous	-
421	WB9X157		Spring Plunger		Appelez-nous	-
422	WB2X7209		Clip Door		Appelez-nous	-
424	WB2X3331		Clamp Crystal		Appelez-nous	-
425	WB7X1151		Trim Top Door		Appelez-nous	-
923	WB7X6814		Trim Control		Appelez-nous	-
924	WB2X6497		Plug Button		Appelez-nous	-
926	WB2X7259		Bracket Instrument		Appelez-nous	-
959	WB2X7261		Clip		Appelez-nous	-
960	WB2X7240		Support Side R H		Appelez-nous	-
960	WB2X7239		Support Side L H		Appelez-nous	-
961	WB2X7241		Clip		Appelez-nous	-
961	WB1X5628		Screw Mtg Crystal		Appelez-nous	-
963	WB2X7223		Hinge Control Panel		Appelez-nous	-
1439	11QBP0235		Rectifier   (Replaces: WB27X5070)				$ 15.33
1458	WB17X5073		Term Blk Asm-1 Pin(1458)		Appelez-nous	-
1458	WB17X5062		Terminal Blk Asm (12pin)		Appelez-nous	-
1458	WB17X5065		Terminal Blk Asm (4 Pin)		Appelez-nous	-
1510	WB17X5076		Conn Block Smart Bd Pin)		Appelez-nous	-
1521	WB7X6813		Grille		Appelez-nous	-
1601	WB7X6807		Trim Crystal		Appelez-nous	-
1643	WB27X5236		Transformer		Appelez-nous	-
1654	WB27X5225		Key Panel Asm		Appelez-nous	-
1655	WB27X5240		Smart Board & Display		Appelez-nous	-
1657	WB2X7229		Cover		Appelez-nous	-
1659	WB1X5578		Mtg Trim Screw		Appelez-nous	-
1660	WB2X7260		Bracket Instrument		Appelez-nous	-
1677	WB2X7262		Support Smart Board		Appelez-nous	-
1678	WB2X7263		Bracket Transformer		Appelez-nous	-
1679	WB2X7264		Bracket Wiring		Appelez-nous	-
9999	49-4548		Cookbook		Appelez-nous	-
9999	39-4493		Manual Users		Appelez-nous	-
