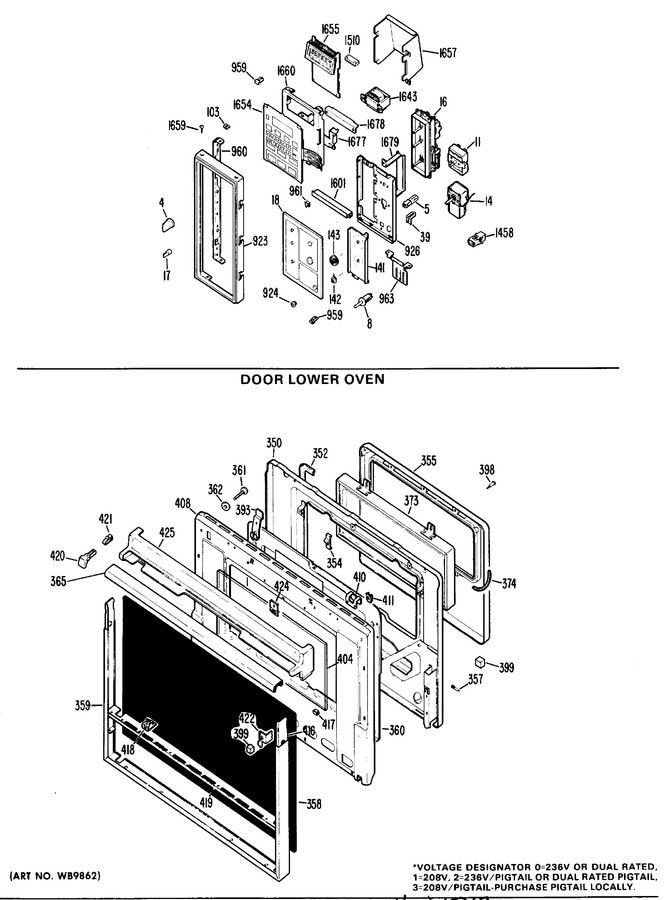

1 - Door Lower Oven
2 - Microwave Oven
3 - Lower Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | WB3X5618 | Knob |
|
- | |||||
| 5 | WB2X3468 | Neon Lamp 240v |
|
- | |||||
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 8 | WB24X108 | Switch, Latch Release |
|
- | |||||
| 11 | WB22X5116 | Switch, Oven |
|
- | |||||
| 14 | WB2X6494 | Barrier |
|
- | |||||
| 14 | WB24X234 | Thermostat, Dual |
|
- | |||||
| 16 | WB19X5270 | Timer |
|
- | |||||
| 17 | WB3X5630 | Knob Timer |
|
- | |||||
| 18 | WB2X3232 | Pad |
|
- | |||||
| 18 | WB36X5516 | Crystal |
|
- | |||||
| 39 | WB2X6624 | Bracket Lamp Neon |
|
- | |||||
| 141 | WB4X5110 | Faceplate |
|
- | |||||
| 142 | WB2X7267 | Pointer & Sleeve Thermo |
|
- | |||||
| 143 | WB2X7268 | Pointer & Sleeve Oven |
|
- | |||||
| 350 | WB55X5247 | Door Liner |
|
- | |||||
| 350 | WB2X3314 | Reflector Panel |
|
- | |||||
| 350 | WB2X3312 | Insulation Door |
|
- | |||||
| 352 | WB2X3138 | Gasket Door |
|
- | |||||
| 354 | WB9X154 | Strike Spring |
|
- | |||||
| 355 | WB2X2276 | Reflector Foil |
|
- | |||||
| 355 | WB55X5246 | Panel Inner |
|
- | |||||
| 355 | WB2X3313 | Insulation Door |
|
- | |||||
| 357 | WB1X558 | Screw Nail Point |
|
- | |||||
| 358 | WB36X557 | Glass Black |
|
- | |||||
| 359 | WB7X1150 | Trim Frame-lower Door |
|
- | |||||
| 360 | WB49X354 | Guard Insulation |
|
- | |||||
| 361 | WZ04X0425 | Screw |
|
- | |||||
| 362 | WB1X119 | Washer Contoured |
|
- | |||||
| 365 | WB15X5140 | Grip Asm Handle |
|
- | |||||
| 373 | WB36X5495 | Window Pack |
|
- | |||||
| 374 | WB2X3048 | Gasket Window |
|
- | |||||
| 393 | WB9X153 | Spring Toggle |
|
- | |||||
| 398 | WB1X600 | Scr Shoulder |
|
- | |||||
| 399 | WB2X3285 | Pad |
|
- | |||||
| 404 | WB36X540 | Crystal Window |
|
- | |||||
| 408 | WB2X7208 | Reflector Panel |
|
- | |||||
| 408 | WB55X419 | Panel Middle Door |
|
- | |||||
| 410 | WB2X3310 | Bracket Panel |
|
- | |||||
| 411 | WB1X439 | Speednut Bracket |
|
- | |||||
| 416 | WB2X3334 | Brace Side Rh |
|
- | |||||
| 416 | WB2X3335 | Brace Side Lh |
|
- | |||||
| 417 | WB2X3332 | Clip Crystal |
|
- | |||||
| 418 | WB2X3333 | Bracket Crystal |
|
- | |||||
| 419 | WB2X3336 | Brace Bottom |
|
- | |||||
| 420 | WB2X3337 | Plunger Door Light |
|
- | |||||
| 421 | WB9X157 | Spring Plunger |
|
- | |||||
| 422 | WB2X7209 | Clip Door |
|
- | |||||
| 424 | WB2X3331 | Clamp Crystal |
|
- | |||||
| 425 | WB7X1151 | Trim Top Door |
|
- | |||||
| 886 | WB2X3471 | Clip Capillary Tube Oven |
|
- | |||||
| 923 | WB7X6814 | Trim Control |
|
- | |||||
| 924 | WB2X6497 | Plug Button |
|
- | |||||
| 926 | WB2X7259 | Bracket Instrument |
|
- | |||||
| 959 | WB2X7238 | Clip Mtg Trim |
|
- | |||||
| 960 | WB2X7240 | Support Side R H |
|
- | |||||
| 960 | WB2X7239 | Support Side L H |
|
- | |||||
| 961 | WB2X7241 | Clip |
|
- | |||||
| 961 | WB1X5628 | Screw Mtg Crystal |
|
- | |||||
| 963 | WB2X7223 | Hinge Control Panel |
|
- | |||||
| 1458 | WB17X5065 | Terminal Blk Asm (4 Pin) |
|
- | |||||
| 1458 | WB17X5062 | Terminal Blk Asm (12pin) |
|
- | |||||
| 1458 | WB17X5073 | Term Blk Asm-1 Pin(1458) |
|
- | |||||
| 1510 | WB17X5076 | Conn Block Smart Bd Pin) |
|
- | |||||
| 1601 | WB7X6807 | Trim Crystal |
|
- | |||||
| 1643 | WB27X5236 | Transformer |
|
- | |||||
| 1654 | WB27X5225 | Key Panel Asm |
|
- | |||||
| 1655 | WB27X5240 | Smart Board & Display |
|
- | |||||
| 1657 | WB2X7229 | Cover |
|
- | |||||
| 1659 | WB1X5578 | Mtg Trim Screw |
|
- | |||||
| 1660 | WB2X7260 | Bracket Instrument |
|
- | |||||
| 1677 | WB2X7262 | Support Smart Board |
|
- | |||||
| 1678 | WB2X7263 | Bracket Transformer |
|
- | |||||
| 1679 | WB2X7264 | Bracket Wiring |
|
- | |||||
| 2067 | WB1X524 | Screw |
|
- | |||||
| 9999 | 49-4593 | Cookbook |
|
- | |||||
| 9999 | 39-4505 | Manual Users |
|
- |
