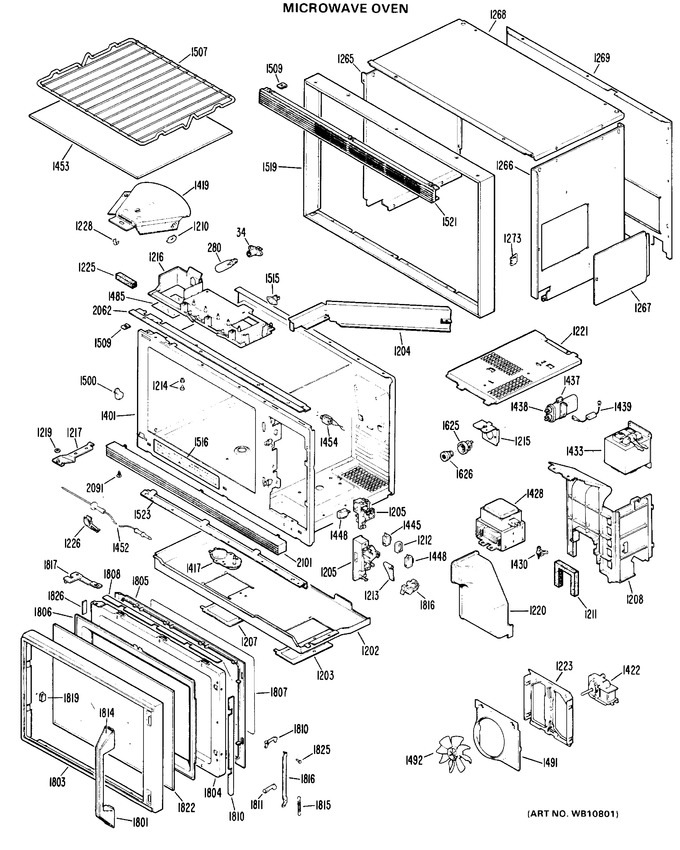

SELECT A DIAGRAM

1 - Door Lower Oven


2 - Microwave Oven


3 - Lower Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
34	WB8X5096		Socket Lamp		Appelez-nous	-
280	WX12X1510		Lamp 40w Appliance		Appelez-nous	-
280	WB2X7560		Oven Lamp U.o.		Appelez-nous	-
1202	WB49X5386		Base		Appelez-nous	-
1203	WB49X5387		Cover Magnetron		Appelez-nous	-
1204	WB2X7722		Air Guide		Appelez-nous	-
1205	WB10X5165		Door Hook Top		Appelez-nous	-
1205	WB10X5174		Door Hook Lower		Appelez-nous	-
1207	WB2X7723		Cover Access		Appelez-nous	-
1208	WB2X7724		Air Guide		Appelez-nous	-
1210	WB2X7624		Stopper		Appelez-nous	-
1211	WB2X7725		Cushion Rubber		Appelez-nous	-
1212	WB2X7580		Spacer		Appelez-nous	-
1213	WB2X7628		Hook Spacer		Appelez-nous	-
1214	WB2X7544		Clip		Appelez-nous	-
1215	WB2X7726		Bracket		Appelez-nous	-
1216	WB2X7727		Exhaust Guide		Appelez-nous	-
1217	WB10X5184		Hinge Lower		Appelez-nous	-
1219	WB2X7103		Spacer		Appelez-nous	-
1220	WB2X7635		Air Guide		Appelez-nous	-
1221	WB2X7732		Bracket		Appelez-nous	-
1223	WB2X7733		Bracket		Appelez-nous	-
1225	WB2X7734		Cushion		Appelez-nous	-
1226	WB2X7660		Holder Probe		Appelez-nous	-
1228	WB2X7625		Stopper		Appelez-nous	-
1265	WB56X5931		Side Case Upper Lh		Appelez-nous	-
1266	WB56X5932		Side Case Upper Rh		Appelez-nous	-
1267	WB2X7255		Cover Access		Appelez-nous	-
1268	WB56X5933		Top Case Upper		Appelez-nous	-
1269	WB49X5388		Back Case		Appelez-nous	-
1273	WB2X7258		Clip Trim		Appelez-nous	-
1401	WB53X5129		Cavity & Frame Asm		Appelez-nous	-
1417	WB26X5080		Motor, Stirrer		Appelez-nous	-
1419	WB2X7626		Antenna Asm		Appelez-nous	-
1422	WB26X5082		Motor, Blower		Appelez-nous	-
1428	10QBP0234		Magnetron   (Replaces: WB27X5410)				$ 114.50
1430	WB2X5371		Thermostat		Appelez-nous	-
1433	WB27X5398		Transformer, Hi-voltage		Appelez-nous	-
1437	WB2X7731		Bracket		Appelez-nous	-
1438	WB27X254		Capacitor		Appelez-nous	-
1439	WB27X5333		Rectifier		Appelez-nous	-
1445	WB24X353		Switch, Monitor		Appelez-nous	-
1448	WG02F01561		Switch, Door   (Replaces: WB24X352)			Immediately	$ 25.41
1452	WB20X5054		Probe U.o.		Appelez-nous	-
1453	WB48X5084		Shelf Oven		Appelez-nous	-
1454	WB1X5588		Nut Receptacle		Appelez-nous	-
1454	WB20X5053		Receptacle Probe		Appelez-nous	-
1454	WB2X7552		Spacer		Appelez-nous	-
1485	WB2X7730		Shield Lamp		Appelez-nous	-
1491	WB2X7728		Orifice		Appelez-nous	-
1492	WB2X4114		Blade Fan		Appelez-nous	-
1500	WB2X7640		Support Rack		Appelez-nous	-
1507	WB48X5088		Rack		Appelez-nous	-
1509	WB1X365		Speednut		Appelez-nous	-
1515	WB27X5381		Thermal Cutout		Appelez-nous	-
1516	WB7X6904		Label Menu Code		Appelez-nous	-
1519	WB7X6931		Trim Frame		Appelez-nous	-
1521	WB7X6933		Grille		Appelez-nous	-
1523	WB49X5185		Rail Support Front		Appelez-nous	-
1625	WB8X5097		Receptacle, Fustat		Appelez-nous	-
1801	WB15X5164		Handle Door		Appelez-nous	-
1803	WB7X6926		Trim Door		Appelez-nous	-
1804	WB55X5285		Liner & Choke		Appelez-nous	-
1805	WB65X5286		Frame Inner		Appelez-nous	-
1806	WB55X5287		Door Inner		Appelez-nous	-
1807	WB2X7647		Film		Appelez-nous	-
1808	WB2X7643		Ferrite Side Rh & Bottom		Appelez-nous	-
1808	WB2X7642		Ferrite Top		Appelez-nous	-
1810	WB10X5185		Key Door Pkg.		Appelez-nous	-
1811	WB10X5177		Key Door		Appelez-nous	-
1814	WB7X6929		Trim Handle		Appelez-nous	-
1815	WB9X5112		Spring Door Key		Appelez-nous	-
1816	WB10X5186		Key & Spacer Pkg.		Appelez-nous	-
1817	WB10X5179		Hinge Upper		Appelez-nous	-
1819	WB2X7735		Sash		Appelez-nous	-
1822	WB36X5603		Window Outer		Appelez-nous	-
1825	WB2X7559		Pin Key Lever		Appelez-nous	-
1826	WB2X7857		Cushion		Appelez-nous	-
2062	WB2X7741		Bracket Grille		Appelez-nous	-
2091	WB1X5751		Clip Canoe		Appelez-nous	-
2101	WB7X6932		Trim Lower		Appelez-nous	-
2101	WB2X7750		Bracket Trim		Appelez-nous	-
