SELECT A DIAGRAM

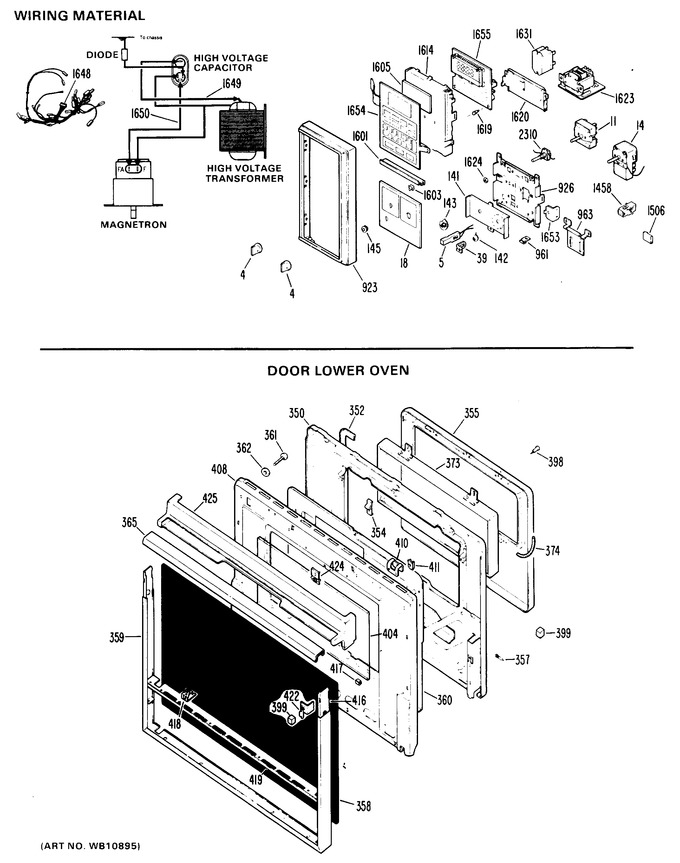

1 - Wiring Material
2 - Microwave Oven
3 - Lower Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | WB3X5618 | Knob |
|
- | |||||
| 5 | WB2X3468 | Neon Lamp 240v |
|
- | |||||
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 11 | WB22X5142 | Switch, Oven |
|
- | |||||
| 14 | WB2X6494 | Barrier |
|
- | |||||
| 14 | WB24X234 | Thermostat, Dual |
|
- | |||||
| 18 | WB36X5610 | Crystal |
|
- | |||||
| 39 | WB2X6239 | Surface Light Bracket |
|
- | |||||
| 141 | WB4X5115 | Faceplate |
|
- | |||||
| 142 | WB2X7267 | Pointer & Sleeve Thermo |
|
- | |||||
| 143 | WB2X7268 | Pointer & Sleeve Oven |
|
- | |||||
| 145 | WB2X3429 | Washer |
|
- | |||||
| 350 | WB2X3314 | Reflector Panel |
|
- | |||||
| 350 | WB55X5318 | Door Liner |
|
- | |||||
| 350 | WB2X3312 | Insulation Door |
|
- | |||||
| 352 | WB2X3138 | Gasket Door |
|
- | |||||
| 354 | WB9X154 | Strike Spring |
|
- | |||||
| 355 | WB2X3313 | Insulation Door |
|
- | |||||
| 355 | WB2X2276 | Reflector Foil |
|
- | |||||
| 355 | WB55X5299 | Panel Inner |
|
- | |||||
| 357 | WB1X558 | Screw Nail Point |
|
- | |||||
| 358 | WB36X557 | Glass Black |
|
- | |||||
| 359 | WB7X1150 | Trim Frame-lower Door |
|
- | |||||
| 360 | WB49X354 | Guard Insulation |
|
- | |||||
| 361 | WZ04X0425 | Screw |
|
- | |||||
| 362 | WB1X119 | Washer Contoured |
|
- | |||||
| 365 | WB15X5140 | Grip Asm Handle |
|
- | |||||
| 373 | WB36X5495 | Window Pack |
|
- | |||||
| 374 | WB2X3048 | Gasket Window |
|
- | |||||
| 398 | WB1X600 | Scr Shoulder |
|
- | |||||
| 399 | WB2X3285 | Pad |
|
- | |||||
| 404 | WB36X5595 | Crystal Window |
|
- | |||||
| 408 | WB2X7208 | Reflector Panel |
|
- | |||||
| 408 | WB55X419 | Panel Middle Door |
|
- | |||||
| 410 | WB2X3310 | Bracket Panel |
|
- | |||||
| 411 | WB1X439 | Speednut Bracket |
|
- | |||||
| 416 | WB2X3334 | Brace Side Rh |
|
- | |||||
| 416 | WB2X3335 | Brace Side Lh |
|
- | |||||
| 417 | WB2X3332 | Clip Crystal |
|
- | |||||
| 418 | WB2X3333 | Bracket Crystal |
|
- | |||||
| 419 | WB2X3336 | Brace Bottom |
|
- | |||||
| 422 | WB2X7209 | Clip Door |
|
- | |||||
| 424 | WB2X3331 | Clamp Crystal |
|
- | |||||
| 425 | WB7X6923 | Trim Top Door |
|
- | |||||
| 923 | WB7X6928 | Trim Control |
|
- | |||||
| 926 | WB2X7780 | Bracket Instrument |
|
- | |||||
| 961 | WB1X5750 | Crystal Clip |
|
- | |||||
| 963 | WB2X7729 | Escut Slide Ass Y |
|
- | |||||
| 1458 | WB17X5062 | Terminal Blk Asm (12pin) |
|
- | |||||
| 1458 | WB17X5061 | Terminal Blk Asm (3 Pin) |
|
- | |||||
| 1462 | WB2X7544 | Clip Mtg Exhaust Guide |
|
- | |||||
| 1506 | WB17X5078 | Housing Socket Pkg 5 Pin |
|
- | |||||
| 1601 | WB7X6930 | Trim Crystal |
|
- | |||||
| 1603 | WB2X6654 | Speed Nut |
|
- | |||||
| 1605 | WB36X5605 | Crystal |
|
- | |||||
| 1614 | WB2X7736 | Bracket |
|
- | |||||
| 1619 | WB2X7769 | Holder |
|
- | |||||
| 1620 | WB2X7738 | Bracket |
|
- | |||||
| 1623 | WB2X7766 | Bracket Support |
|
- | |||||
| 1623 | WB27X5407 | Power Supply Asm |
|
- | |||||
| 1624 | WB1X245 | Nut |
|
- | |||||
| 1631 | WB27X5405 | Relay, Power |
|
- | |||||
| 1648 | WB18X5094 | Wire Harness |
|
- | |||||
| 1649 | WB18X5096 | Lead Wire |
|
- | |||||
| 1650 | WB18X5097 | Lead Wire |
|
- | |||||
| 1653 | WB2X7777 | Mounting Bracket |
|
- | |||||
| 1654 | WB27X5404 | Key Panel Asm |
|
- | |||||
| 1655 | WB27X5399 | Smart Board Display |
|
- | |||||
| 2012 | WB38X75 | Vent Asm |
|
- | |||||
| 2059 | WB49X5298 | Guard Insulation |
|
- | |||||
| 2310 | WB24X5237 | Switch |
|
- | |||||
| 9999 | WB1X853 | Magnetron Nut M5 |
|
- | |||||
| 9999 | WB1X5749 | Hinge Lower Screw 5x20 |
|
- | |||||
| 9999 | WB1X5742 | Screw |
|
- | |||||
| 9999 | WB1X5591 | Fan Motor Screw 4x8 |
|
- | |||||
| 9999 | WB1X5748 | Door Hook Upper Screw 4x |
|
- | |||||
| 9999 | 31-0425 | Install Instructions |
|
- | |||||
| 9999 | 39-4579 | Manual Users |
|
- | |||||
| 9999 | WB1X5740 | Handle Door |
|
- | |||||
| 9999 | WB1X5618 | Screw |
|
- | |||||
| 9999 | WB1X5613 | Screw |
|
- | |||||
| 9999 | WB1X5602 | Washer |
|
- | |||||
| 9999 | 49-4706 | Cookbook |
|
- |
