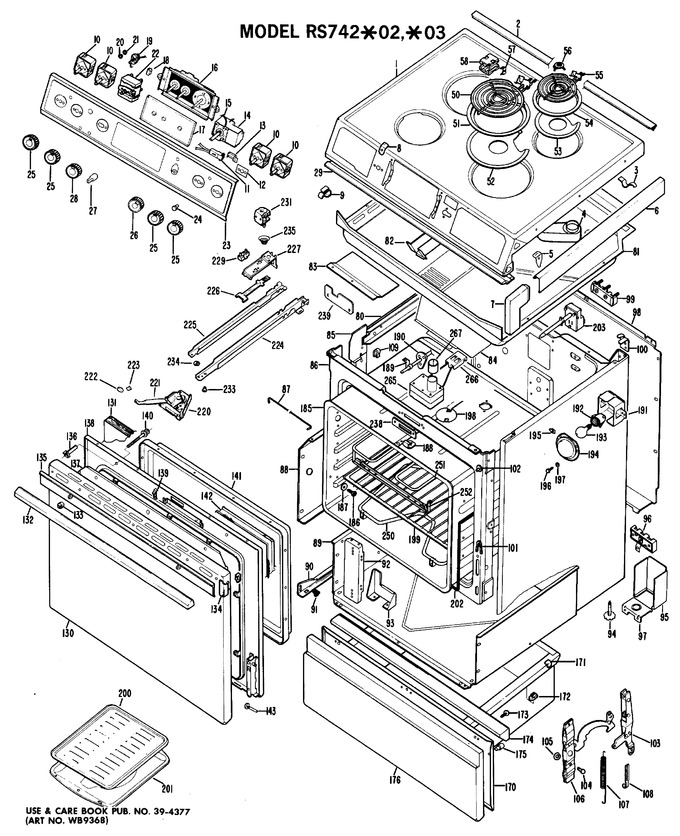

SELECT A DIAGRAM

1 - Component Group


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB62X5268		Cooktop Fa		Appelez-nous	-
1	WB62X5270		Cooktop Ad		Appelez-nous	-
1	WB62X5267		Cooktop Cf		Appelez-nous	-
1	WB62X5266		Cooktop Wh		Appelez-nous	-
1	WB62X5269		Cooktop Ha		Appelez-nous	-
1	WZ06X0085		Screw Mtg. Cooktop		Appelez-nous	-
2	WB7X5664		Trim Rear		Appelez-nous	-
3	WB2X995		Clip Lead		Appelez-nous	-
4	WB38X5039		Body Vent		Appelez-nous	-
5	WS01A01150		Screw (cr)   (Replaces: WB1X5364)				$ 3.97
5	WB2X2988		Clip Trim		Appelez-nous	-
6	WB7X6666		Trim Cooktop Lh		Appelez-nous	-
6	WB7X6665		Trim Cooktop Rh		Appelez-nous	-
7	WB1X271		Nut Mtg Cap		Appelez-nous	-
7	WB7X6668		End Cap Lh		Appelez-nous	-
7	WB7X6667		End Cap Rh		Appelez-nous	-
8	WB2X6760		Clip Trim		Appelez-nous	-
8	WS01A01150		Screw (cr)   (Replaces: WB1X5364)				$ 3.97
9	WB2X6761		Clip Lead		Appelez-nous	-
10	5500-200		Switch, Inf Surface Unit   (Replaces: WB21X237)			Immediately	$ 60.94
10	WB1X521		Scr 8/32 Tf Flr 5/16 S		Appelez-nous	-
11	WB2X1608		Neon Lamp 118v				$ 31.65
11	WB2X1609		Lamp, Indicator		Appelez-nous	-
12	WB2X3383		Seal Switch		Appelez-nous	-
13	WB2X1185		Clip Lamp		Appelez-nous	-
14	WB24X184		Thermostat, Dual		Appelez-nous	-
14	WB1X521		Scr 8/32 Tf Flr 5/16 S		Appelez-nous	-
15	WB2X6762		Sleeve		Appelez-nous	-
16	WB19X5249		Timer		Appelez-nous	-
17	WB36X5395		Crystal Timer		Appelez-nous	-
18	WB2X2901		Clip Crystal		Appelez-nous	-
19	WB24X166		Switch, Latch Release		Appelez-nous	-
20	WB1X588		Lockwasher Switch		Appelez-nous	-
21	WB1X246		Switch Nut		Appelez-nous	-
22	WB22X5090		Switch, Oven		Appelez-nous	-
22	WB1X521		Scr 8/32 Tf Flr 5/16 S		Appelez-nous	-
23	WB7X6669		Trim Control		Appelez-nous	-
24	WB2X1185		Clip Lamp		Appelez-nous	-
24	WB25X65		Jewel		Appelez-nous	-
25	WB3X440		Knob Surface Unit		Appelez-nous	-
26	WB3X452		Knob Thermostat		Appelez-nous	-
27	WB3X459		Knob Timer		Appelez-nous	-
28	WB3X428		Knob Oven Switch		Appelez-nous	-
29	WB7X1100		Deflector		Appelez-nous	-
50	WB1X5485		Screw Mtg. - Units To Co		Appelez-nous	-
50	WB1X500		Terminal Screw		Appelez-nous	-
50	WB30X348		Surface Unit, 8"		Appelez-nous	-
51	WB31X5014		Trim Ring 8"			Immediately	$ 13.55
52	WB32X5013		Unit Pan 8"		Appelez-nous	-
53	WB32X36		Unit Pan 6"		Appelez-nous	-
54	WB31X56		Trim Ring 6"		Appelez-nous	-
55	WB30X359		Surface Unit, 6"		Appelez-nous	-
55	WB1X500		Terminal Screw		Appelez-nous	-
56	WB32X51		Center Trim 8" Unit		Appelez-nous	-
56	WB32X52		Center Trim 6" Unit		Appelez-nous	-
57	WB2X574		3 In 1 Insulator Clip		Appelez-nous	-
58	WB2X1351		Term Block Double Coil		Appelez-nous	-
58	WB2X2398		Term Block Single Coil		Appelez-nous	-
80	WB2X3229		Barrier Bakeunit Opening		Appelez-nous	-
81	WZ04X0231		Screw Mt. Side		Appelez-nous	-
81	WB49X5204		Cooktop Box		Appelez-nous	-
82	WB2X6769		Channel Wire		Appelez-nous	-
83	WB2X6770		Guard Wire		Appelez-nous	-
84	WB2X6764		Shield Heat Lh		Appelez-nous	-
84	WB2X6763		Shield Heat Rh		Appelez-nous	-
85	WB2X6766		Plate, Barrier L.h.		Appelez-nous	-
85	WB2X6765		Plate, Barrier R.h.		Appelez-nous	-
86	WB2X3240		Spacer		Appelez-nous	-
86	WB56X1296		Frame		Appelez-nous	-
86	WB56X5861		Frame Front		Appelez-nous	-
86	WZ04X0345		Screw 8-18x5/8 Hxw		Appelez-nous	-
87	WB2X6767		Hook Wire		Appelez-nous	-
88	WZ04X0345		Screw 8-18x5/8 Hxw		Appelez-nous	-
88	WB49X5171		Guard Upper-rh (06)		Appelez-nous	-
88	WB49X5172		Guard Upper-lh (06)		Appelez-nous	-
88	WB49X5221		Guard Upper Rh		Appelez-nous	-
88	WB49X5222		Guard Upper Lh		Appelez-nous	-
89	WB49X5156		Guard Lower		Appelez-nous	-
90	WB39X5101		Drawer Guide Lh		Appelez-nous	-
90	WB39X5011		Guide Drawer Rh		Appelez-nous	-
90	WZ04X0231		Screw Mt. Side		Appelez-nous	-
91	WB2X831		Slide Guide		Appelez-nous	-
92	WZ04X0231		Screw Mt. Side		Appelez-nous	-
92	WB2X6768		Panel Filler		Appelez-nous	-
93	WB2X6187		Support Oven		Appelez-nous	-
94	WB1X5519		Screw Leveling Front		Appelez-nous	-
94	WB1X5533		Screw Leveling Leg Rear		Appelez-nous	-
94	WB2X6772		Nut Tee Mtg Leg Front		Appelez-nous	-
95	WB2X6655		Cover Terminal Block		Appelez-nous	-
96	WB17X168		Terminal Block-power		Appelez-nous	-
96	WZ04X0348		Scr 10-16 B Sl 1-1/8 S		Appelez-nous	-
96	WZ04X0231		Screw Mt. Side		Appelez-nous	-
96	WB2X646		Plate Ground		Appelez-nous	-
97	WB2X6191		Bracket Knockout		Appelez-nous	-
98	WB49X5201		Cover Back		Appelez-nous	-
99	WB17X167		Block Term Distribution		Appelez-nous	-
100	WB2X6184		Catch Cook Top Mtg Lh		Appelez-nous	-
100	WZ05X0211		Screw Mtg. Catch		Appelez-nous	-
100	WB2X6185		Catch Cook Top Mtg Rh		Appelez-nous	-
101	WB2X6342		Guide Hinge Lever		Appelez-nous	-
102	WB24X105		Switch		Appelez-nous	-
103	WB1X570		Screw Mtg. Liner		Appelez-nous	-
103	WB10X5090		Support Hinge Rh		Appelez-nous	-
103	WB10X5091		Support Hinge Lh		Appelez-nous	-
103	WB1X549		Screw (hex)		Appelez-nous	-
104	WG02A00596		Pin Hinge Door   (Replaces: WB2X6195)				$ 4.20
105	WB2X1082		Ring Retaining		Appelez-nous	-
106	WB10X5092		Hinge Lever Asm Rh Lh		Appelez-nous	-
107	WB9X5073		Spring Door		Appelez-nous	-
108	WB2X2506		Hook Door Spring		Appelez-nous	-
109	WB2X1742		Clamp Harness		Appelez-nous	-
130	WB56X5751		Door Panel Ha		Appelez-nous	-
130	WB56X5752		Door Panel Ad		Appelez-nous	-
130	WB56X5749		Door Panel Cf		Appelez-nous	-
130	WB56X5748		Door Panel Wh		Appelez-nous	-
130	WB56X5750		Door Panel Fa		Appelez-nous	-
131	WB2X6366		Door Insulation		Appelez-nous	-
132	WB15X147		Handle		Appelez-nous	-
133	WB2X6243		Grommet Handle		Appelez-nous	-
134	WB7X1103		Trim Door Corner Lh		Appelez-nous	-
134	WB7X1102		Trim Door Corner Rh		Appelez-nous	-
135	WB2X3053		Clip Mtg Door Trims		Appelez-nous	-
135	WB7X1109		Trim Door		Appelez-nous	-
136	WB2X6204		Spacer Panel		Appelez-nous	-
137	WS01A01150		Screw (cr)   (Replaces: WB1X5364)				$ 3.97
137	WB55X5219		Guard Insulation		Appelez-nous	-
138	WB55X5220		Door Liner		Appelez-nous	-
138	WZ04X0231		Screw Mt. Side		Appelez-nous	-
139	WZ04X0304		Screw Mt. Duct		Appelez-nous	-
139	WB9X138		Spring Strike		Appelez-nous	-
140	WB1X119		Washer Contoured		Appelez-nous	-
140	WZ04X0298		Screw Mtg Handle		Appelez-nous	-
141	WB55X5213		Panel Inner		Appelez-nous	-
142	WB2X6547		Gasket Door		Appelez-nous	-
143	WB1X558		Screw Nail Point		Appelez-nous	-
170	WB58X5005		Drawer Asm		Appelez-nous	-
171	WB2X840		Slide Top		Appelez-nous	-
172	WB2X841		Slide Bottom		Appelez-nous	-
173	WZ04X0209		Handle Screw		Appelez-nous	-
174	WB15X5100		Wb15x5124		Appelez-nous	-
175	WB2X6208		Bumper		Appelez-nous	-
176	WB56X5733		Drawer Panel Wh		Appelez-nous	-
176	WB56X5737		Drawer Panel Ad		Appelez-nous	-
176	WB56X5736		Drawer Panel Ha		Appelez-nous	-
176	WB56X5735		Drawer Panel Fa		Appelez-nous	-
176	WB56X5734		Drawer Panel Cf		Appelez-nous	-
185	WB2X3230		Cover Plate-jack		Appelez-nous	-
185	WB1X525		Washer		Appelez-nous	-
185	WB1X422		Scr 8-18 T Ihw 1/2 S		Appelez-nous	-
185	WB53X5070		Oven Liner		Appelez-nous	-
185	WB2X6496		Insulation		Appelez-nous	-
186	WB1X570		Screw Mtg. Liner		Appelez-nous	-
187	WB1X119		Washer Contoured		Appelez-nous	-
188	WB2X6209		Trim Clip		Appelez-nous	-
188	WZ04X0238		Scr 8-18 Ab Hw 1/2 S		Appelez-nous	-
189	WZ04X0288		Scr 10-16 Ab Hxw 1/2s #8		Appelez-nous	-
189	WB2X3165		Hanger-tls		Appelez-nous	-
190	WB2X3164		Plate		Appelez-nous	-
190	WB2X3163		Gasket-tls				$ 22.50
191	WB2X3466		Guard Lamp		Appelez-nous	-
191	WZ04X0231		Screw Mt. Side		Appelez-nous	-
192	WB8X5060		Lampholder		Appelez-nous	-
194	WG02F04576		Lamp Cover Asm   (Replaces: WB36X192)				$ 20.65
195	WB2X1659		Speednut		Appelez-nous	-
196	WZ04X0361		Scr 8-18x5/8		Appelez-nous	-
197	WB2X1847		Washer Mt. Cover		Appelez-nous	-
198	WZ04X0291		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
198	WB2X1626		Baffle		Appelez-nous	-
199	WB48X109		Oven Racks		Appelez-nous	-
200	WB48X5002		Broiler Pan Rack		Appelez-nous	-
201	WB49X88		Broil Pan		Appelez-nous	-
202	WB44X186		Mullion Unit		Appelez-nous	-
202	WB1X500		Terminal Screw		Appelez-nous	-
203	WB24X175		Switch, Thermal		Appelez-nous	-
220	WZ02X0546		Scr 8-32 M Phr 1/2 S		Appelez-nous	-
221	WB1X438		Screw Washer Asm		Appelez-nous	-
221	WB15X142		Handle		Appelez-nous	-
222	WB3X322		Knob Latch		Appelez-nous	-
223	WG02A00753		Retainer Knob   (Replaces: WB2X2030)				$ 4.20
224	WB2X3174		Channel Latch		Appelez-nous	-
225	WB2X3175		Channel Locking		Appelez-nous	-
226	WB2X3159		Locking Pawl Asm		Appelez-nous	-
227	WZ04X0396		Scr 10-16 B Hxw 1/4 S		Appelez-nous	-
227	WB2X3176		Plate Mounting		Appelez-nous	-
227	WZ04X0362		Screw 10-16 X 1/4" Hex		Appelez-nous	-
229	WB24X183		Switch, Latch		Appelez-nous	-
229	WZ04X0397		Scr 6-32 C Flr 5/16 S		Appelez-nous	-
229	WB2X6912		Barrier Latch Sw Low Ov		Appelez-nous	-
231	WB24X197		Solenoid		Appelez-nous	-
231	WB1X438		Screw Washer Asm		Appelez-nous	-
233	WB2X6212		Pivot Stud		Appelez-nous	-
234	WB2X1800		Retainer Ring		Appelez-nous	-
235	WB9X148		Spring-plunger		Appelez-nous	-
238	WB7X552		Trim Latch		Appelez-nous	-
239	WZ04X0394		Screw		Appelez-nous	-
239	WB2X6911		Bracket Latch		Appelez-nous	-
250	UB592		Bake Unit 208/240v   (Replaces: WB44X5082)			Immediately	$ 49.95
250	WZ04X0231		Screw Mt. Side		Appelez-nous	-
250	WB1X500		Terminal Screw		Appelez-nous	-
251	WZ04X0231		Screw Mt. Side		Appelez-nous	-
251	WB1X500		Terminal Screw		Appelez-nous	-
251	UT316		Broil Unit   (Replaces: WB44X185)			Immediately	$ 49.95
252	WB2X1543		Gasket - Broil		Appelez-nous	-
252	WB2X1810		Support Broil Unit		Appelez-nous	-
252	WZ04X0291		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
265	WB29X5009		Smoke Eliminator Asm		Appelez-nous	-
265	WZ04X0291		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
266	WB1X500		Terminal Screw		Appelez-nous	-
266	WB2X3388		Terminal Block		Appelez-nous	-
267	WB2X6771		Extension, Vent Tube		Appelez-nous	-
