SELECT A DIAGRAM

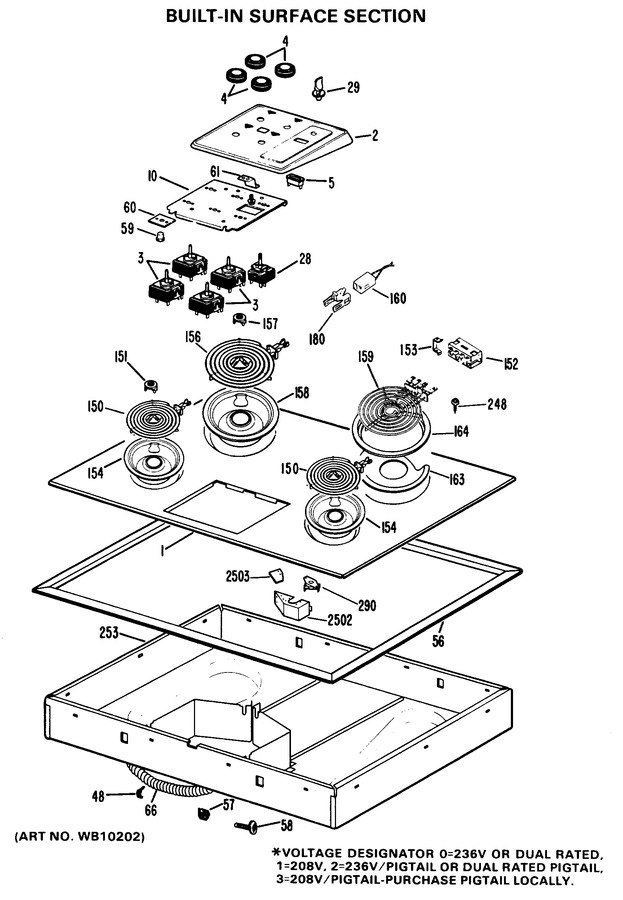

1 - Built-in Surface Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5221 | Cooktop Bc |
|
- | |||||
| 2 | WB7X6786 | Trim Switch |
|
- | |||||
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 4 | WB3X5587 | Knob Surface Unit |
|
- | |||||
| 5 | WB2X3278 | Lamp, Indicator |
|
- | |||||
| 10 | WB2X3279 | Bracket Switch |
|
- | |||||
| 28 | WB24X5011 | Switch, Select 4-6-8" |
|
- | |||||
| 29 | WB3X432 | Knob Selector Switch |
|
- | |||||
| 48 | WB1X5050 | Speed Clip |
|
- | |||||
| 51 | WB2X1458 | Clamp Conduit |
|
- | |||||
| 56 | WB7X5015 | Mounting Frame |
|
- | |||||
| 57 | WB2X5203 | Bracket Angle |
|
- | |||||
| 58 | WB1X5131 | Thumb Screw |
|
- | |||||
| 59 | WB1X5070 | Rivet |
|
- | |||||
| 60 | WB2X5164 | Switch Seal Inf Heat |
|
- | |||||
| 61 | WB2X3280 | Clip Cooktop |
|
- | |||||
| 150 | WB30X5071 | Surface Unit, 6" |
|
- | |||||
| 151 | WB32X52 | Center Trim 6" Unit |
|
- | |||||
| 152 | WB2X2018 | Unit Terminal Block |
|
- | |||||
| 153 | WB2X574 | Clip Insulator |
|
- | |||||
| 154 | WB31X5010 | Pan & Ring 6" Chrome |
|
- | |||||
| 156 | WB30X5072 | Surface Unit, 8" |
|
- | |||||
| 157 | WB32X51 | Center Trim 8" Unit |
|
- | |||||
| 158 | WB31X5011 | Pan & Ring 8" Chrome |
|
- | |||||
| 159 | WB30X346 | Surface Unit, 4-6-8" |
|
- | |||||
| 160 | WB17X5094 | Receptacle Asm |
|
- | |||||
| 163 | WB32X5036 | Pan Unit 8" Chrome |
|
$ 18.70 | |||||
| 164 | WB31X5012 | Trim Ring 8" |
|
- | |||||
| 180 | WB2X7618 | Clip Receptacle |
|
- | |||||
| 253 | WB63X5204 | Box Cooktop |
|
- | |||||
| 290 | WB24X5239 | Switch, Thermal Fan |
|
- | |||||
| 456 | WZ04X0345 | Screw |
|
- | |||||
| 828 | WZ04X0367 | Screw |
|
- | |||||
| 2502 | WB2X7771 | Cover Lh |
|
- | |||||
| 2502 | WB2X7772 | Cover Rh |
|
- | |||||
| 2503 | WB2X7773 | Heat Sink |
|
- | |||||
| 32767 | 31-0414 | Install Instructions |
|
- | |||||
| 32767 | 49-4527 | Manual Users |
|
- | |||||
| 32767 | WB2X5415 | Bushing |
|
- | |||||
| 32767 | WB30X5072 | Surface Unit, 8" |
|
- | |||||
| 32767 | WB30X5071 | Surface Unit, 6" |
|
- | |||||
| 32767 | WB1X438 | Screw & Washer Asm |
|
- | |||||
| 32767 | WB30X346 | Surface Unit, 4-6-8" |
|
- | |||||
| 32767 | WZ04X0279 | Scr 6-20 Ab Hxw 1/4 S |
|
- | |||||
| 32767 | WB24X5011 | Switch, Select 4-6-8" |
|
- | |||||
| 32767 | WZ05X0132 | Scr 8-32 T Hxw 5/16 S |
|
- | |||||
| 32767 | WB2X3278 | Lamp, Indicator |
|
- | |||||
| 32767 | WB1X500 | Terminal Screw |
|
- | |||||
| 32767 | WZ04X0368 | Scr 8-18 B Hxw 1/2 S |
|
- | |||||
| 32767 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 |
