SELECT A DIAGRAM

1 - Backsplash Assembly


2 - Backsplash Assembly


3 - Tub, Basket And Agitator


4 - Cabinet And Suspension Asm.


5 - Transmission - Complete Breakdown


6 - 2-speed

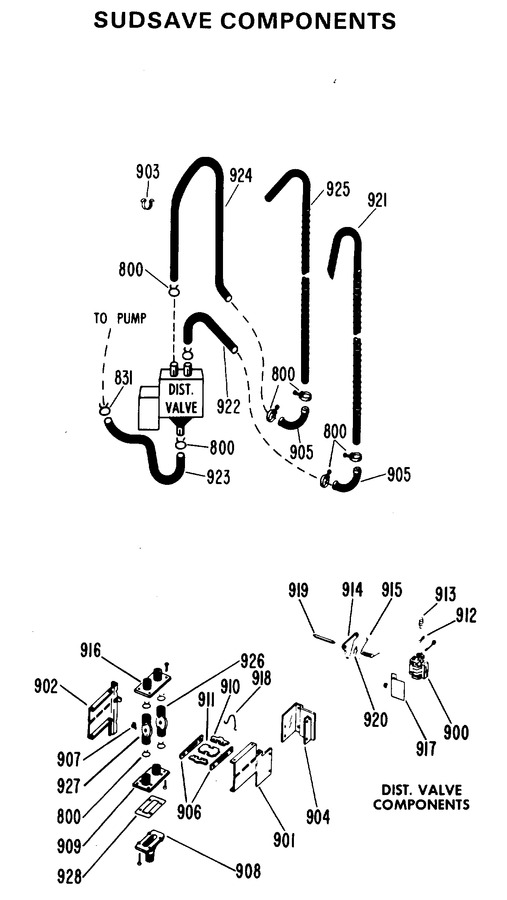

7 - Sudsave Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
800	WH1X2036		Clamp Hose		Appelez-nous	-
831	WH1X2036		Clamp Hose		Appelez-nous	-
900	WH12X250		Solenoid		Appelez-nous	-
901	WH16X261		Plate Side		Appelez-nous	-
902	WH16X262		Plate Top Solenoid Mtg		Appelez-nous	-
903	WH16X316		Support Drain Hose		Appelez-nous	-
904	WH16X365		Bracket Valve		Appelez-nous	-
905	WH1X1617		Elbow		Appelez-nous	-
906	WH1X1698		Yoke Guide		Appelez-nous	-
907	WH1X1699		Retainer Tube Valve Lug		Appelez-nous	-
908	WH1X1700		Cover Manifold		Appelez-nous	-
909	WH1X1701		Adapter		Appelez-nous	-
910	WH1X1702		Pk Post End		Appelez-nous	-
911	WH1X1703		Pk Post Stationary		Appelez-nous	-
912	WH1X1704		Retainer Spring		Appelez-nous	-
913	WH1X1705		Spring Solenoid		Appelez-nous	-
914	WH1X1706		Lever		Appelez-nous	-
915	WH1X1707		Spring Antirattle		Appelez-nous	-
916	WH1X1708		Adapter Double Tube		Appelez-nous	-
917	WH1X1709		Shield Solenoid		Appelez-nous	-
918	WH1X1710		Spring Toggle		Appelez-nous	-
919	WH1X1711		Pin Pivot		Appelez-nous	-
920	WH1X1712		Pin Cotter		Appelez-nous	-
921	WH41X107		Hose & Spring Asm		Appelez-nous	-
922	WH41X109		Hose Drain Save		Appelez-nous	-
923	WH41X148		Hose Valve Inlet		Appelez-nous	-
924	WH41X149		Hose Drain		Appelez-nous	-
925	WH41X96		Hose & Spring Asm		Appelez-nous	-
926	WH8X249		Tube Valve		Appelez-nous	-
927	WH8X250		Tube Valve		Appelez-nous	-
928	WH8X251		Gasket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
