SELECT A DIAGRAM

1 - Backsplash Assembly

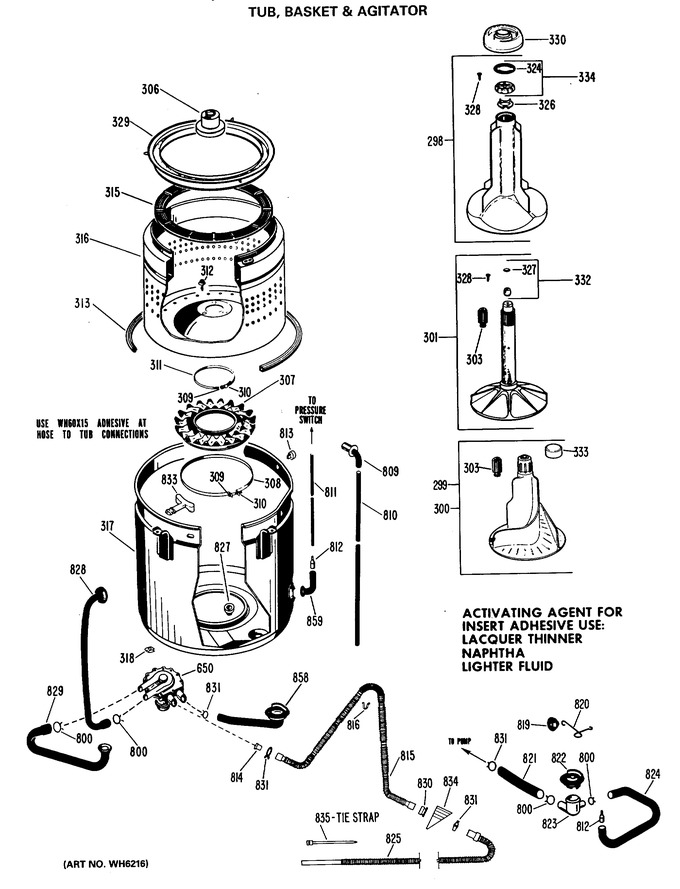

2 - Tub, Basket & Agitator


3 - Cabinet And Suspension Asm.


4 - Transmission - Complete Breakdown


5 - 2 - Speed


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
299	WH43X105		Agitator Asm Lg Cap		Appelez-nous	-
306	WH8X292		Boot Hub		Appelez-nous	-
307	WH8X246		Boot Mech		Appelez-nous	-
308	WH1X1580		Clamp Asm		Appelez-nous	-
309	WH2X935		Scr		Appelez-nous	-
310	WH2X936		Nut		Appelez-nous	-
311	WH1X1292		Clamp Asm				$ 6.25
313	WG04L01700		Gasket Tub   (Replaces: WH8X305)				$ 15.96
316	WH45X99		Basket Asm Lg Capacity		Appelez-nous	-
317	WH45X116		Tub Asm		Appelez-nous	-
318	WL02X0071		Nut Sheet Metal		Appelez-nous	-
329	WH1X2518		Ring Filter		Appelez-nous	-
330	WH47X40		Rinse Agent Dispenser		Appelez-nous	-
333	WH43X100		Cap Agitator		Appelez-nous	-
650	WH23X42		Pump Asm				$ 138.00
800	WH1X2036		Clamp Hose		Appelez-nous	-
809	WH8X253		Nozzle Overflow		Appelez-nous	-
810	WH1X1807		Tube Overflow		Appelez-nous	-
811	WH41X128		Hose Switch		Appelez-nous	-
812	WH1X1584		Hose Reducer		Appelez-nous	-
814	WH41X158		Adapter Hose		Appelez-nous	-
815	WH41X325		Hose Int Drain		Appelez-nous	-
816	WH16X372		Support Drain Hose		Appelez-nous	-
820	WH1X2435		Hanger Chamber Hose		Appelez-nous	-
821	WH41X116		Hose Drain Inlet		Appelez-nous	-
822	WH41X118		Grommet Pump Elbow		Appelez-nous	-
823	WH41X139		Elbow Pump		Appelez-nous	-
824	WH41X121		Hose Chamber		Appelez-nous	-
825	WH41X324		Hose Asm Ext				$ 28.16
827	WH1X1966		Coupling Tub Hose		Appelez-nous	-
828	WH41X295		Hose Recirculation		Appelez-nous	-
829	WH41X140		Hose Recirc Inlet		Appelez-nous	-
830	WH1X2595		Grommet		Appelez-nous	-
831	WH1X2036		Clamp Hose		Appelez-nous	-
833	WH41X172		Nozzle Recirc		Appelez-nous	-
834	WH16X493		Bracket Hose		Appelez-nous	-
835	WG04A00755		Strap   (Replaces: WH1X2594)				$ 19.06

    View Diagram in Separate Window       Print Part List
