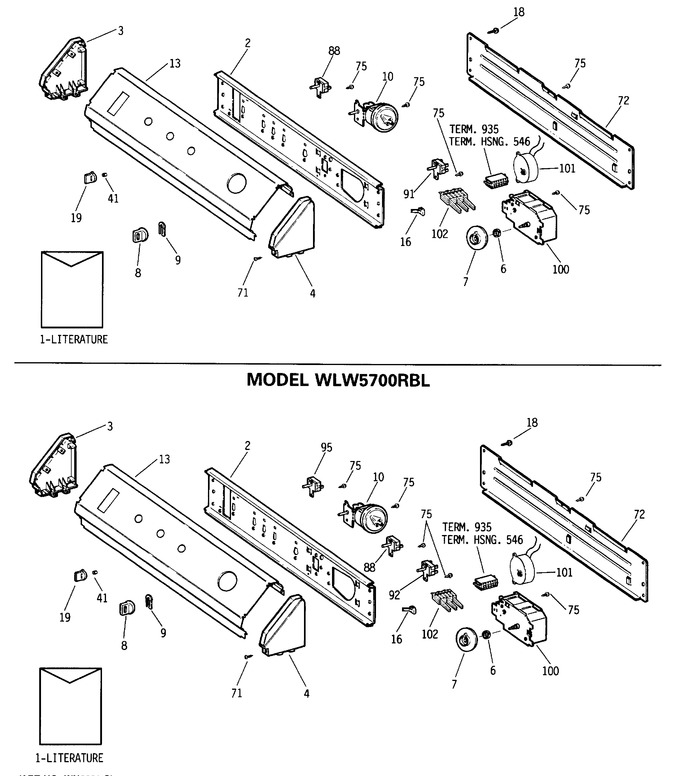

SELECT A DIAGRAM

1 - Component Group


2 - Cabinet And Suspension Asm.


3 - Transmission - Complete Breakdown


4 - Tub, Basket & Agitator


5 - 2 - Speed


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-2112		Pm Instruction Instal		Appelez-nous	-
1	31-2580		Mini-manual		Appelez-nous	-
1	39-9314		Manual Use & Care		Appelez-nous	-
2	WH46X312		Plate Mounting		Appelez-nous	-
3	WH42X2231		End Cap L.h.		Appelez-nous	-
4	WH42X2232		End Cap R.h.		Appelez-nous	-
6	WH2X650		Ring Comp		Appelez-nous	-
7	WH11X136		Dial Asm		Appelez-nous	-
8	WH1X2119		Control Knob Asm		Appelez-nous	-
9	WG04A00788		Clip Spring   (Replaces: WH1X2117)			Immediately	$ 4.04
10	WH12X915		Switch Water Level		Appelez-nous	-
13	WH42X2276		Switch Trim		Appelez-nous	-
16	WH2X1151		Clip Ground		Appelez-nous	-
18	WH2X1152		Screw 8-16x5/8 Hx		Appelez-nous	-
19	WE1X1181		Knob & Clip Switch		Appelez-nous	-
41	WE1X980		U Clip		Appelez-nous	-
46	WZ04X0238		Scr 8-18 Ab Hw 1/2 S		Appelez-nous	-
70	WH2X937		Screw		Appelez-nous	-
71	WH2X1153		Screw 8-18x1 Ph		Appelez-nous	-
72	WH46X311		Panel Access		Appelez-nous	-
75	WG04A00781		Scr 8-18 Ab Hxw 3/8 S   (Replaces: WH2X930)			Immediately	$ 3.97
88	WH12X890		Switch Rotary		Appelez-nous	-
91	WH12X891		Switch Rotary Temp		Appelez-nous	-
100	WH12X905		Timer Asm		Appelez-nous	-
150	WZ20X0007		Hanger Cable		Appelez-nous	-
180	WR1X1747		Scr 10-12 A Hxw 7/8 S		Appelez-nous	-
224	WH1X2045		Tub Funnel		Appelez-nous	-
418	WH44X1134		Back Apron		Appelez-nous	-
546	WH12X870		Housing Terminal Bk		Appelez-nous	-
550	WE2X281		Scr 8-15 Hx 3/8 S		Appelez-nous	-
632	WH1X1797		Spring		Appelez-nous	-
645	WH12X851		Catch Asm Clutch		Appelez-nous	-
756	WH8X281		Seal		Appelez-nous	-
772	WH8X347		Drive Tube Seal Asm		Appelez-nous	-
775	WZ01X0032		Scr 5/16-24 Cap Hx1 1/2s		Appelez-nous	-
935	WD1X1434		Terminal Special		Appelez-nous	-
