SELECT A DIAGRAM

1 - Component Group


2 - Cabinet And Suspension Asm


3 - Transmission - Complete Breakdown


4 - Tub, Basket & Agitator


5 - 2-speed

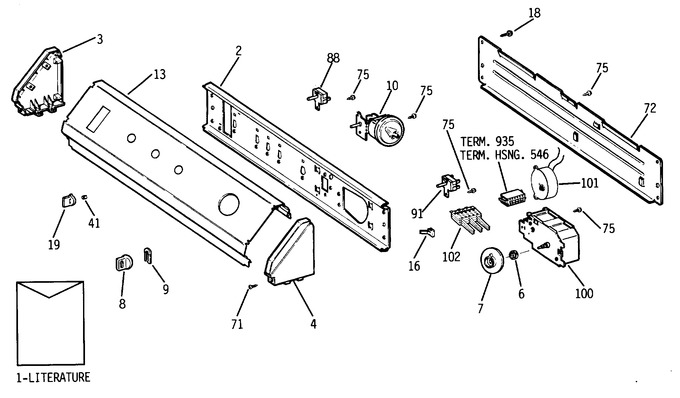

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-2650		Installation Instr.		Appelez-nous	-
1	31-2659		Pm Sheet Mini Manual		Appelez-nous	-
1	39-9317		Manual Use & Care		Appelez-nous	-
2	WH46X312		Plate Mounting		Appelez-nous	-
6	WH2X650		Ring Comp		Appelez-nous	-
7	WH11X137		Dial Asm		Appelez-nous	-
8	WH1X2645		Knob Asm. Control		Appelez-nous	-
9	WG04A00788		Clip Spring   (Replaces: WH1X2117)			Immediately	$ 4.04
10	WH12X927		Switch Pressure		Appelez-nous	-
13	WH42X2307		Switch Trim Asm		Appelez-nous	-
16	WH2X1151		Clip Ground		Appelez-nous	-
18	WH2X1152		Screw 8-16x5/8 Hx		Appelez-nous	-
41	WE1X980		U Clip		Appelez-nous	-
46	WZ04X0238		Scr 8-18 Ab Hw 1/2 S		Appelez-nous	-
70	WH2X937		Screw		Appelez-nous	-
71	WH2X1155		Screw 8-18 B 0vt Is Wh		Appelez-nous	-
72	WH46X311		Panel Access		Appelez-nous	-
88	WH12X890		Switch Rotary		Appelez-nous	-
91	WH12X928		Switch Rotary		Appelez-nous	-
100	WH12X900		Timer Asm		Appelez-nous	-
150	WZ20X0007		Hanger Cable		Appelez-nous	-
180	WR1X1747		Scr 10-12 A Hxw 7/8 S		Appelez-nous	-
224	WH1X2045		Tub Funnel		Appelez-nous	-
322	WH47X43		Dispenser Rinse Agent		Appelez-nous	-
546	WH12X870		Housing Terminal Bk		Appelez-nous	-
550	WE2X281		Scr 8-15 Hx 3/8 S		Appelez-nous	-
636	WH2X765		Scr 8-32 M Hx 3/8 S		Appelez-nous	-
753	WH2X201		Washer Flat		Appelez-nous	-
760	WH5X216		Gear Crank		Appelez-nous	-
775	WZ01X0032		Scr 5/16-24 Cap Hx1 1/2s		Appelez-nous	-
840	WH1X2267		Screen Washer		Appelez-nous	-
935	WD1X1434		Terminal Special		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
