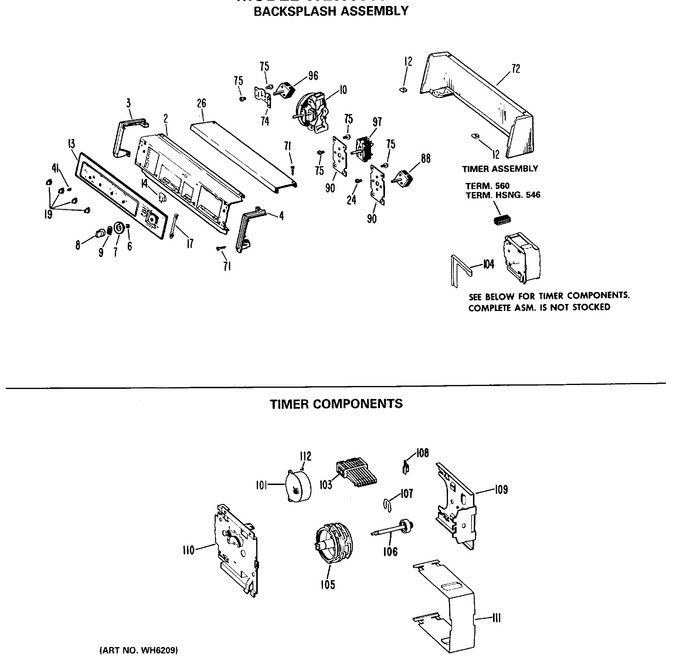

1 - Backsplash Assembly
2 - Tub, Basket And Agitator
3 - Cabinet And Suspension Asm.
4 - Transmission - Complete Breakdown
5 - 2 - Speed
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WE19X883 | Escutcheon Asm |
|
- | |||||
| 3 | WH42X2005 | Trim End Lh |
|
- | |||||
| 4 | WH42X2006 | Trim End Rh |
|
- | |||||
| 6 | WH2X650 | Ring Compression K |
|
- | |||||
| 7 | WH11X133 | Dial Asm |
|
- | |||||
| 8 | WH1X2596 | Knob Asm |
|
- | |||||
| 9 | WG04A00788 | Clip Spring (Replaces: WH1X2117) |
|
Immediately | $ 4.04 | ||||
| 10 | WH12X726 | Switch Asm Press Rotary |
|
- | |||||
| 12 | WB1X358 | Nut Sheet Metal |
|
- | |||||
| 13 | WH42X2168 | Switch Trim Asm |
|
- | |||||
| 14 | WE1X762 | Clip Ground |
|
- | |||||
| 15 | WH2X1122 | Scr 8-18 Ab Opr 3/4 S |
|
- | |||||
| 17 | WE1X577 | Clip Trim |
|
- | |||||
| 19 | WH1X2597 | Knob & Clip Asm |
|
- | |||||
| 24 | WZ02X0510 | Scr 8-32 M Hx 3/16 S |
|
- | |||||
| 26 | WH42X2169 | Trim Top |
|
- | |||||
| 41 | WE1X980 | Clip Knob |
|
- | |||||
| 46 | WZ04X0238 | Scr 8-18 Ab Hx 1/2 S |
|
- | |||||
| 72 | WH46X212 | Backsplash Wrapper Ad |
|
- | |||||
| 72 | WH46X211 | Backsplash Wrapper Wh |
|
- | |||||
| 72 | WH46X215 | Backsplash Wrapper Ha |
|
- | |||||
| 74 | WE13X137 | Bracket Switch |
|
- | |||||
| 75 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 88 | WE4X605 | Switch Asm Rotary |
|
- | |||||
| 90 | WH16X434 | Bracket Switch |
|
- | |||||
| 96 | WH12X729 | Switch Asm Rotary |
|
- | |||||
| 97 | WH12X730 | Switch Asm Rotary |
|
- | |||||
| 100 | WH12X691 | Timer Asm |
|
- | |||||
| 104 | WH16X474 | Bracket Timer Mtg |
|
- | |||||
| 150 | WZ20X0007 | Hanger Cable |
|
- | |||||
| 179 | WZ04X0288 | Scr 10-16 Bt Hxw 1/2 S |
|
- | |||||
| 546 | WH12X604 | Housing Terminal |
|
- | |||||
| 550 | WE2X281 | Scr 8-18 Ab Hxw 3/8 S |
|
- | |||||
| 554 | WB17X5054 | Terminal |
|
- | |||||
| 560 | WH12X603 | Terminal Special |
|
- | |||||
| 610 | WH1X1337 | Spring Slip Shoe |
|
- | |||||
| 758 | WH8X367 | Gasket Gear Case Cover |
|
- | |||||
| 771 | WH39X46 | Cover Asm Gear Case |
|
- | |||||
| 32767 | 39-9285 | Pm Manual Use & Care |
|
- | |||||
| 32767 | 31-2275 | Mini Manual |
|
- | |||||
| 32767 | 31-2420 | Pm Instruction Instl |
|
- |
