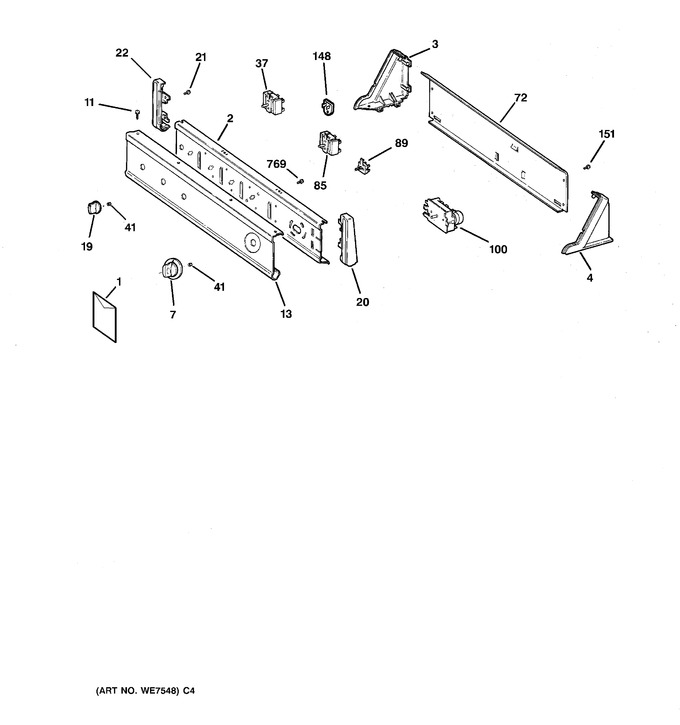

SELECT A DIAGRAM

1 - Control Assembly


2 - Cabinet & Top


3 - Front Panel & Door


4 - Drum, Heater Asm., Blower & Drive Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-15052		Pm Sheet Mini Manual		Appelez-nous	-
1	31-2812		Install Instructions		Appelez-nous	-
1	79-9049		Use Care Manual		Appelez-nous	-
2	WH46X10033		Support Switch		Appelez-nous	-
3	WH42X2397		End Cap Lh Wh		Appelez-nous	-
4	WH42X2398		End Cap Rh Wh		Appelez-nous	-
7	WG04L04237		Knob Timer Wh   (Replaces: WE1X1267)			Immediately	$ 20.65
11	WH2X1206		Scr8-18 Ab Flt 5/8 Sn Wh		Appelez-nous	-
13	WE19X10012		Switch Trim Asm		Appelez-nous	-
19	WH1X2756		Knob & Clip Asm		Appelez-nous	-
20	WE19X984		Cap Support Switch Rh		Appelez-nous	-
21	WH2X1185		Scr 8-18 B Ihw 5/16 S		Appelez-nous	-
22	WE19X983		Cap Support Switch Lh		Appelez-nous	-
37	WG04F03522		Switch Rotary Start   (Replaces: WE4X881)			Immediately	$ 110.98
41	WE1X980		U Clip		Appelez-nous	-
72	WE20X814		Panel Back		Appelez-nous	-
85	WE4X873		Switch Rotary Temp - 4		Appelez-nous	-
89	WE4X874		Switch Rotary - 2		Appelez-nous	-
100	WE4X870		Timer Dryer		Appelez-nous	-
148	WE04X10029		Resistor		Appelez-nous	-
151	WH2X1210		Scr 8-18 B Ihw 1/2 S N		Appelez-nous	-
769	WB1X500		Scr 8-18 B Hxw 1/4 S		Appelez-nous	-
