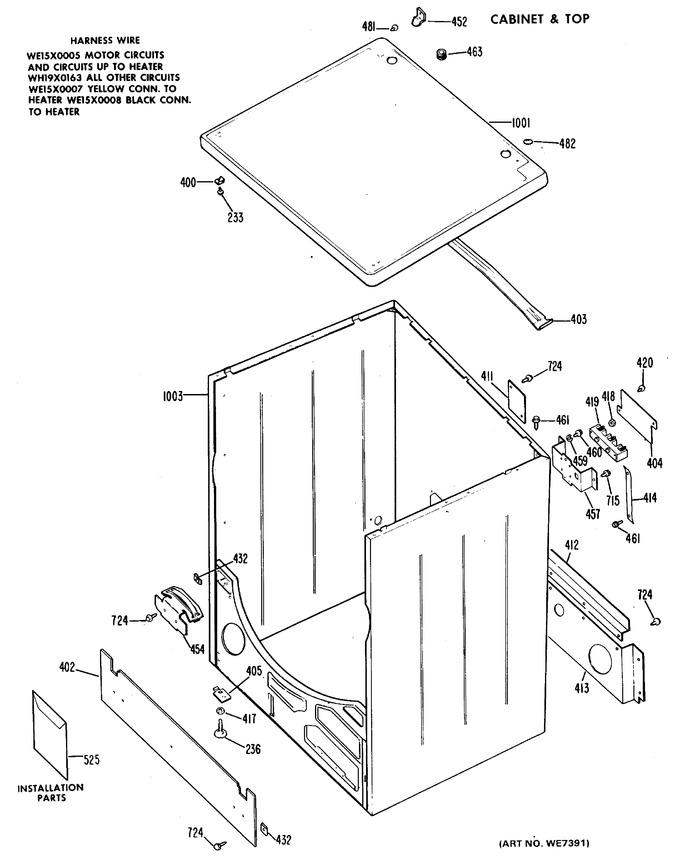

1 - Component Group


2 - Cabinet & Top


3 - Cabinet Front


4 - Drum & Heater Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
233	WZ04X0236		Scr 8-15 A Ov 1/2 S		Appelez-nous	-
236	WG04L00345		Screw Leveling 5/16-24   (Replaces: WE2X355)			Immediately	$ 4.04
400	WE2X134		Clip		Appelez-nous	-
402	WE20X347		Toeboard		Appelez-nous	-
403	WE14X37		Brace Cabinet Top		Appelez-nous	-
405	WE1X468		Plate Leveling Screw		Appelez-nous	-
411	WE1X426		Knockout Cabinet Wrapper		Appelez-nous	-
412	WE14X54		Bracket Recess		Appelez-nous	-
413	WE14X55		Box Asm Recess		Appelez-nous	-
414	WE1X339		Strap Ground		Appelez-nous	-
417	WZ07X0038		Nut		Appelez-nous	-
418	WZ07X0031		Nut		Appelez-nous	-
419	WE4X168		Block Terminal				$ 29.10
420	WH2X893		Scr 10-16 B Hxw 3/8 S		Appelez-nous	-
432	WL02X0071		Nut Clip		Appelez-nous	-
452	WE1X1094		Bracket Hinge		Appelez-nous	-
457	WE13X162		Bracket Terminal Block		Appelez-nous	-
459	WE2X92		Washer Cup		Appelez-nous	-
460	WZ04X0264		Scr 10-16 Ab Hxw 7/8 S		Appelez-nous	-
460	WZ04X0288		Scr 10-16 Ab Hxw 1 S		Appelez-nous	-
461	WZ05X0158		Scr 8-32 D Hxw 3/8 S		Appelez-nous	-
463	WH1X2572		Sleeve Split		Appelez-nous	-
481	WH2X967		Scr 12-14 Ab Hxw 1/2 S		Appelez-nous	-
525	WE25X97		Pk Pack Asm Installation		Appelez-nous	-
715	WD2X5063		Scr 8-18 Ph Hx 13/32 S		Appelez-nous	-
724	WZ04X0288		Scr 10-16 Ab Hxw 1/2 S		Appelez-nous	-
1001	WE20X666		Weld Asm Cover Ha		Appelez-nous	-
1001	WE20X664		Weld Asm Cover Wh		Appelez-nous	-
1001	WE20X665		Weld Asm Cover Ad		Appelez-nous	-
1003	WE20X670		Cabinet Asm Ad		Appelez-nous	-
1003	WE20X671		Cabinet Asm Ha		Appelez-nous	-
1003	WE20X672		Cabinet Asm Wh		Appelez-nous	-
