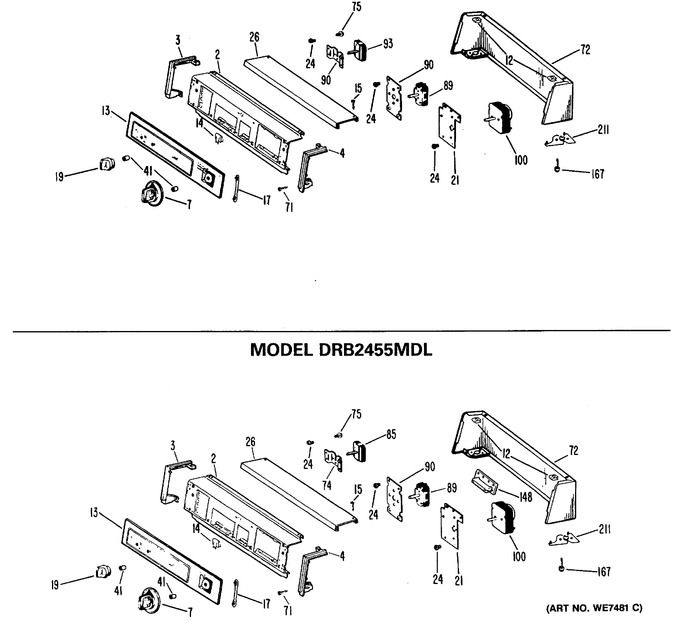

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-1703		Pm Instruction Instal		Appelez-nous	-
2	WE19X719		Escutcheon Asm		Appelez-nous	-
3	WH42X2199		Trim End L.h.		Appelez-nous	-
4	WH42X2200		Trim End R.h.		Appelez-nous	-
7	WE1X1132		Knob & Clip Asm		Appelez-nous	-
12	WB1X358		Speednut		Appelez-nous	-
13	WE19X880		Switch Trim Asm		Appelez-nous	-
14	WE1X762		Clip Grounding		Appelez-nous	-
15	WE2X367		Scr 8-18 Ab Opr 3/4 S		Appelez-nous	-
17	WH1X2008		Clip Trim		Appelez-nous	-
19	WH1X2583		Knob & Clip Asm		Appelez-nous	-
21	WE13X76		Plate Control		Appelez-nous	-
24	WZ02X0510		Screw		Appelez-nous	-
26	WH42X2201		Trim Top		Appelez-nous	-
41	WE1X980		U Clip		Appelez-nous	-
70	WH2X937		Screw		Appelez-nous	-
71	WH2X947		Screw		Appelez-nous	-
72	WH46X215		Weld Asm-housing Ha		Appelez-nous	-
72	WH46X212		Weld Asm-housing Ad		Appelez-nous	-
72	WH46X211		Weld Asm-housing Wh		Appelez-nous	-
89	WE4X679		Switch Rotary Start		Appelez-nous	-
90	WH16X434		Bracket Switch		Appelez-nous	-
93	WE4X627		Switch Asm Rotary		Appelez-nous	-
100	WE4X754		Timer Asm		Appelez-nous	-
150	WZ20X0007		Hanger Cable		Appelez-nous	-
167	WE2X186		Screw		Appelez-nous	-
178	WH2X939		Scr 6-19 Pt Hx 1/4 S		Appelez-nous	-
204	WZ04X0345		Screw		Appelez-nous	-
211	WE1X553		Gasket Insulating		Appelez-nous	-
380	WG03L00054		Switch Asm Push Button   (Replaces: WE4X197)			Immediately	$ 40.27
543	WE3X72		Bearing Drum		Appelez-nous	-
32767	79-9022		Pm Manual Use & Care		Appelez-nous	-
