SELECT A DIAGRAM

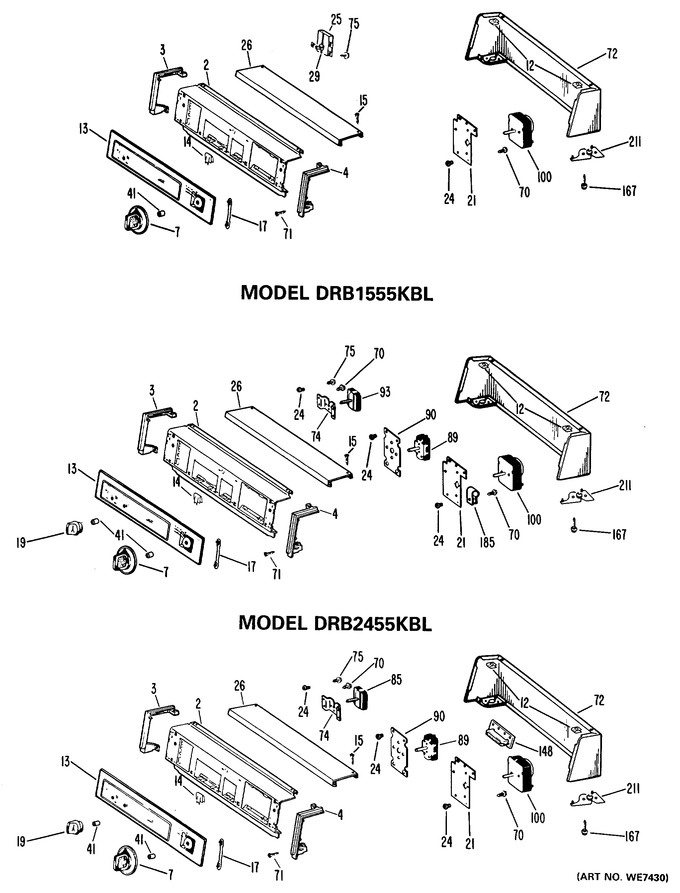

1 - Component Group


2 - Component Group


3 - Cabinet Front


4 - Drum & Heater Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WE19X719		Escutcheon Asm		Appelez-nous	-
3	WE19X793		Trim End Lh		Appelez-nous	-
4	WE19X792		Trim End Rh		Appelez-nous	-
7	WE1X1132		Knob Clip Asm		Appelez-nous	-
12	WB1X358		Speednut		Appelez-nous	-
13	WE19X881		Switch Trim Asm		Appelez-nous	-
14	WE1X762		Clip Grounding		Appelez-nous	-
15	WH2X1120		Scr 8-18 Ab Opr 11/2 S		Appelez-nous	-
17	WH1X2008		Clip Trim		Appelez-nous	-
19	WH1X2583		Knob Clip Asm		Appelez-nous	-
21	WE13X76		Plate Control		Appelez-nous	-
24	WZ02X0510		Screw		Appelez-nous	-
26	WH42X2151		Trim Top		Appelez-nous	-
41	WE1X980		Clip Knob		Appelez-nous	-
70	WH2X937		Screw-type A		Appelez-nous	-
71	WH2X947		Screw		Appelez-nous	-
72	WH46X212		Weld Asm-housing Ad		Appelez-nous	-
72	WH46X211		Weld Asm-housing Wh		Appelez-nous	-
74	WE13X137		Bracket Switch		Appelez-nous	-
75	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.97
85	WE4X603		Switch Asm-rotary 4 Pos		Appelez-nous	-
89	WE4X679		Switch Rotary Start		Appelez-nous	-
90	WH16X434		Bracket Switch		Appelez-nous	-
100	WE4X628		Timer Asm		Appelez-nous	-
148	WE4X499		Resistor Board		Appelez-nous	-
167	WE2X186		Screw		Appelez-nous	-
205	WE13X161		Bracket Motor		Appelez-nous	-
211	WE1X553		Gasket Insulating		Appelez-nous	-
225	WE2X276		Scr 10-16 B Hx 1/2 S		Appelez-nous	-
234	WE2X154		Palnut				$ 55.13
235	WE2X194		Screw		Appelez-nous	-
404	WE1X425		Plate		Appelez-nous	-
452	WE1X1094		Bracket Hinge		Appelez-nous	-
512	WE11X86		Housing Heater		Appelez-nous	-
530	WE2X278		Nut		Appelez-nous	-
9999	79-9008		Pm Manual Use & Care		Appelez-nous	-
9999	31-1814		Pm Instruction Instl		Appelez-nous	-
9999	31-2481		Mini Manual		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
