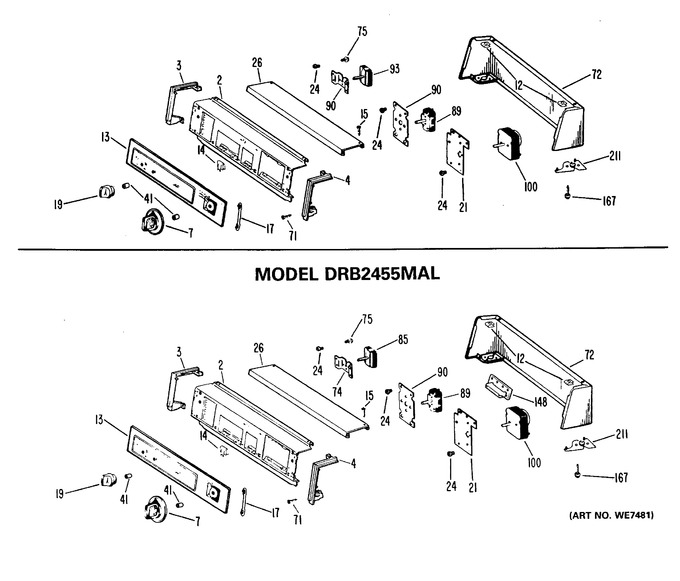

SELECT A DIAGRAM

1 - Component Group


2 - Component Group


3 - Cabinet Front


4 - Drum & Heater Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WE19X719		Escutcheon Asm		Appelez-nous	-
3	WH42X2199		Trim End L.h.		Appelez-nous	-
4	WH42X2200		Trim End R.h.		Appelez-nous	-
7	WE1X1132		Knob Clip Asm		Appelez-nous	-
12	WB1X358		Speednut		Appelez-nous	-
13	WE19X881		Switch Trim Asm		Appelez-nous	-
14	WE1X762		Clip Grounding		Appelez-nous	-
15	WE2X367		Scr 8-18 Ab Opr 3/4 S		Appelez-nous	-
17	WH1X2008		Clip Trim		Appelez-nous	-
19	WH1X2583		Knob Clip Asm		Appelez-nous	-
21	WE13X76		Plate Control		Appelez-nous	-
24	WZ02X0510		Screw		Appelez-nous	-
26	WH42X2201		Trim Top		Appelez-nous	-
41	WE1X980		Clip Knob		Appelez-nous	-
71	WH2X947		Screw		Appelez-nous	-
72	WH46X211		Weld Asm-housing Wh		Appelez-nous	-
72	WH46X215		Weld Asm-housing Ha		Appelez-nous	-
72	WH46X212		Weld Asm-housing Ad		Appelez-nous	-
74	WE13X137		Bracket Switch		Appelez-nous	-
75	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.97
85	WE4X603		Switch Asm-rotary 4 Pos		Appelez-nous	-
89	WE4X679		Switch Rotary Start		Appelez-nous	-
90	WH16X434		Bracket Switch		Appelez-nous	-
100	WE4X760		Timer Asm		Appelez-nous	-
148	WE4X499		Resistor Board		Appelez-nous	-
167	WE2X186		Screw		Appelez-nous	-
211	WE1X553		Gasket Insulating		Appelez-nous	-
507	LS2-260		Thermostat L258-50   (Replaces: WE4X584)				$ 13.53
9999	31-1827		Pm Instruction Instal		Appelez-nous	-
9999	79-9023		Pm Manual Use Care		Appelez-nous	-
9999	31-2481		Mini Manual		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
