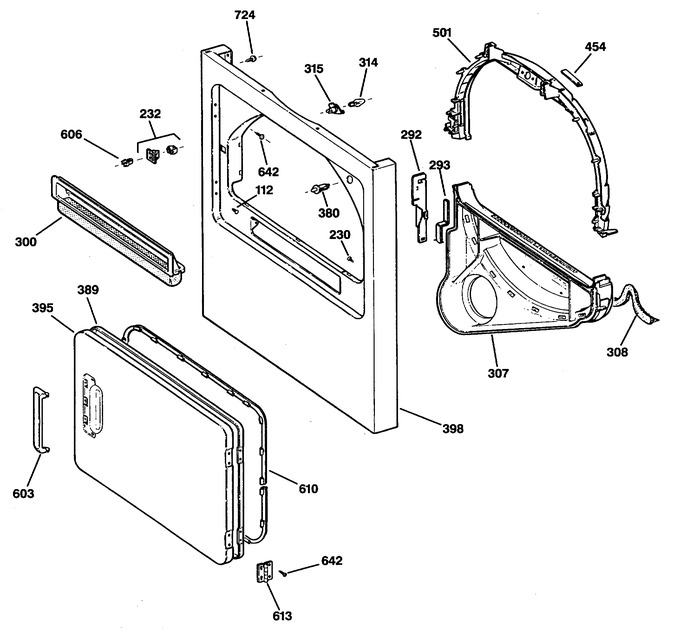

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 112 | WR01A00517 | Plug Door Rvsbl White (Replaces: WR2X8693) |
|
$ 4.37 | |||||
| 230 | WE1X1224 | Plug Door White |
|
- | |||||
| 232 | 5366021400 | Latch Door (Replaces: WE1X1032) |
|
Immediately | $ 62.21 | ||||
| 292 | WE13X199 | Support Spanner |
|
- | |||||
| 293 | WE9X110 | Seal Duct Filter |
|
- | |||||
| 300 | WE18X54 | Filter Asm |
|
- | |||||
| 307 | WE14X226 | Duct, Air |
|
- | |||||
| 308 | WE9X108 | Felt Duct |
|
- | |||||
| 314 | WW03F00458 | Lamp (Replaces: WE4X718) |
|
Immediately | $ 13.37 | ||||
| 315 | WE4X810 | Socket Lamp |
|
- | |||||
| 380 | WG03L00054 | Switch Asm Push Button (Replaces: WE4X197) |
|
Immediately | $ 40.27 | ||||
| 389 | WE10X325 | Liner Door Wh |
|
- | |||||
| 395 | WE10X326 | Panel Door Wh |
|
- | |||||
| 398 | WE20X775 | Front Cab Wh |
|
- | |||||
| 454 | WE3X83 | Bearing, Slide |
|
- | |||||
| 454 | WE3X84 | Bearing, Slide |
|
- | |||||
| 501 | WE3X77 | Support Front Brg |
|
$ 111.86 | |||||
| 603 | WE1X1188 | Handle Door |
|
- | |||||
| 606 | WW02A00004 | Strike Door (Replaces: WE1X1192) |
|
Immediately | $ 3.97 | ||||
| 610 | WE9X109 | Gasket Door |
|
- | |||||
| 613 | WE1X1189 | Hinge |
|
- | |||||
| 642 | WE2X378 | Scr 8-18 Ab Ovp 1/2 S 6h |
|
- | |||||
| 724 | WZ04X0288 | Scr 10-16 Ab Hxw 1/2s #8 |
|
- |
