SELECT A DIAGRAM

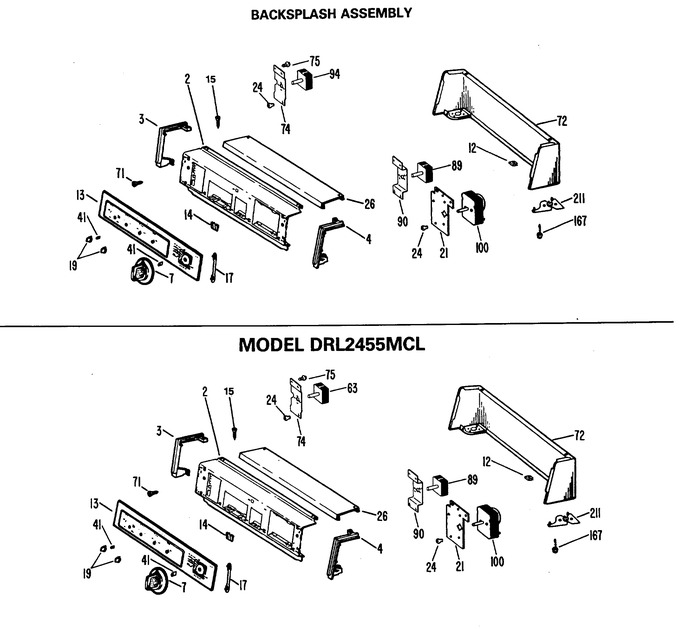

1 - Backsplash Assembly
2 - Cabinet Assembly
3 - Drum & Duct Assembly
4 - Cabinet Front Asm.
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WE19X719 | Escutcheon Asm |
|
- | |||||
| 3 | WH42X2199 | Trim End L.h. |
|
- | |||||
| 4 | WH42X2200 | Trim End R.h. |
|
- | |||||
| 7 | WE1X1132 | Knob Clip Asm |
|
- | |||||
| 12 | WB1X358 | Speednut |
|
- | |||||
| 13 | WE19X880 | Switch Trim Asm |
|
- | |||||
| 14 | WE1X762 | Clip Grounding |
|
- | |||||
| 15 | WE2X367 | Scr 8-18 Ab Opr 3/4 S |
|
- | |||||
| 17 | WH1X2008 | Clip Trim |
|
- | |||||
| 19 | WH1X2583 | Knob Clip Asm |
|
- | |||||
| 21 | WE13X76 | Plate Control |
|
- | |||||
| 24 | WZ02X0510 | Screw |
|
- | |||||
| 26 | WH42X2201 | Trim Top |
|
- | |||||
| 41 | WE1X980 | Clip Knob |
|
- | |||||
| 71 | WH2X947 | Screw |
|
- | |||||
| 72 | WH46X212 | Weld Asm-housing Ad |
|
- | |||||
| 72 | WH46X211 | Weld Asm-housing Wh |
|
- | |||||
| 72 | WH46X215 | Weld Asm-housing Ha |
|
- | |||||
| 74 | WE13X137 | Bracket Switch |
|
- | |||||
| 75 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 89 | WE4X679 | Switch Rotary Start |
|
- | |||||
| 90 | WH16X434 | Bracket Switch |
|
- | |||||
| 94 | WE4X631 | Switch Asm Rotary |
|
- | |||||
| 100 | WE4X754 | Timer Asm |
|
- | |||||
| 167 | WE2X186 | Screw |
|
- | |||||
| 211 | WE1X553 | Gasket Insulating |
|
- | |||||
| 9999 | 79-9022 | Pm Manual Use Care |
|
- | |||||
| 9999 | 31-2450 | Mini Manual |
|
- | |||||
| 9999 | 31-1706 | Pm Instruction Instal |
|
- |
