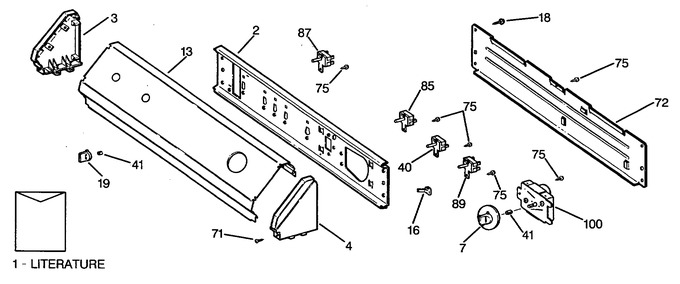

SELECT A DIAGRAM

1 - Component Group


2 - Cabinet Assembly


3 - Drum & Duct Assembly


4 - Cabinet Front Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	79-9033		Manual Use & Care		Appelez-nous	-
1	31-1706		Pm Instruction Instal		Appelez-nous	-
1	31-2565		Mini-manual		Appelez-nous	-
2	WH46X312		Plate Mounting		Appelez-nous	-
3	WH42X2229		End Cap L.h.		Appelez-nous	-
4	WH42X2230		End Cap R.h.		Appelez-nous	-
7	WE1X1178		Knob & Clip Timer		Appelez-nous	-
13	WE19X935		Switch Trim		Appelez-nous	-
16	WH2X1151		Clip Ground		Appelez-nous	-
18	WH2X1152		Screw 8-16x5/8 Hx		Appelez-nous	-
19	WE1X1182		Knob & Clip Switch		Appelez-nous	-
40	WE4X798		Buzzer		Appelez-nous	-
41	WE1X980		U Clip		Appelez-nous	-
71	WH2X1153		Screw 8-18x1 Ph		Appelez-nous	-
72	WH46X311		Panel Access		Appelez-nous	-
75	WG04A00781		Scr 8-18 Ab Hxw 3/8 S   (Replaces: WH2X930)			Immediately	$ 3.97
85	WE4X779		Switch Rotary		Appelez-nous	-
87	WE4X780		Switch Rotary Temp		Appelez-nous	-
89	WE4X782		Switch Rotary Start		Appelez-nous	-
100	WE4X793		Timer		Appelez-nous	-
178	WH2X939		Scr 6-19 Pt Hx 1/4 S		Appelez-nous	-
391	WE20X760		Top Ha		Appelez-nous	-
393	WE20X756		Cabinet Asm Ha		Appelez-nous	-
398	WE20X568		Weld Asm Cab Front Ha		Appelez-nous	-
399	WE10X254		Door Access Ha		Appelez-nous	-
461	WZ05X0158		Screw 8-32x3/8		Appelez-nous	-
543	WE3X72		Bearing Drum		Appelez-nous	-
