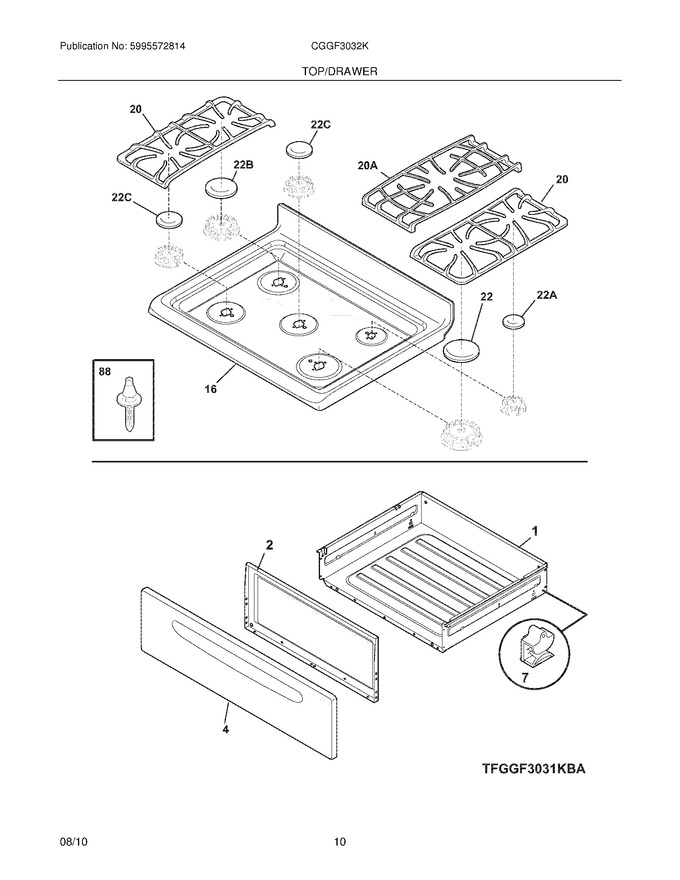

09 - Top/drawer
11 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316408706 | Drawer,utility (Replaces: 316408703) |
|
Immediately | $ 122.90 | ||||
| 2 | 5304527988 | Liner,drawer (Replaces: 316403200) |
|
Immediately | $ 29.49 | ||||
| 4 | 316403401 | Panel,drawer ,white ,front |
|
$ 92.51 | |||||
| 7 | 316407402 | Glide,drawer ,rear (Replaces: 316407400) |
|
Immediately | $ 10.95 | ||||
| 16 | 316469662 | Maintop Panel,white |
|
$ 208.39 | |||||
| 20 | 316499806 | Grate,black ,(2) (Replaces: 316499502) |
|
$ 393.51 | |||||
| 22 | 5304508468 | Cap,burner ,17k ,black (Replaces: 316262104) |
|
$ 54.94 | |||||
| 88 | 316099500 | Pin,guide ,(2) |
|
$ 7.25 | |||||
| 20A | 316499806 | Grate,center ,black (Replaces: 316551802) |
|
$ 393.51 | |||||
| 22A | 5304508441 | Cap,5k Burner ,black (Replaces: 316261704) |
|
Immediately | $ 38.93 | ||||
| 22B | 5304508443 | Cap,14k Burner ,black (Replaces: 316262004) |
|
Immediately | $ 51.12 | ||||
| 22C | 5304508442 | Cap,9.5k Burner ,black (Replaces: 316261804) |
|
Immediately | $ 40.61 | ||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 30.55 | ||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 30.55 |
