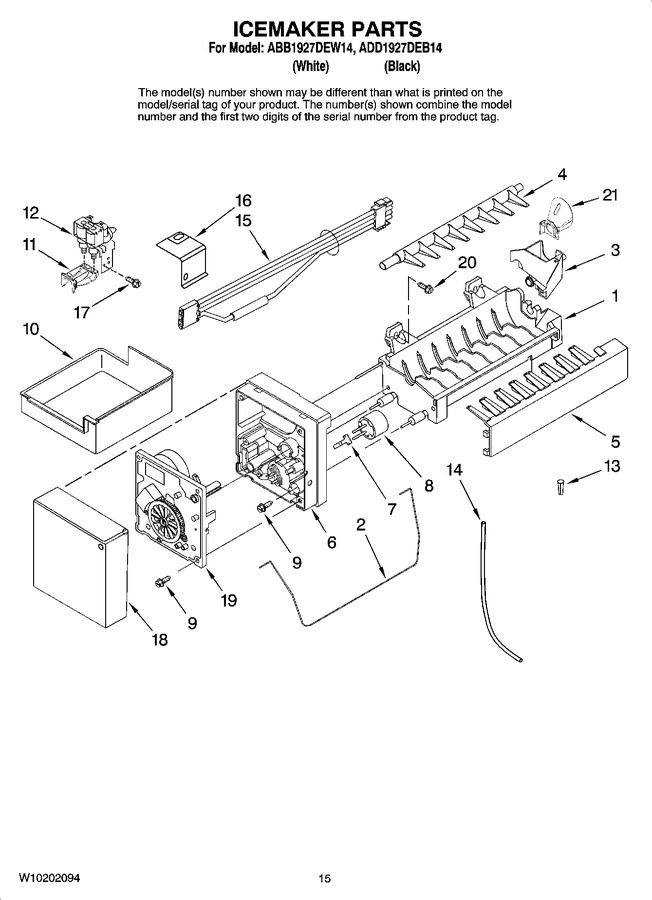

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP67004028		Arm, Shutoff   (Replaces: 67004028)			Immediately	$ 95.92
3	WP628356		Cup, Fill   (Replaces: 628356)				$ 53.75
4	WP627843		Ejector   (Replaces: 627843)				$ 87.78
5	WP2182124		Ice Stripper   (Replaces: 2182124)				$ 90.35
6	WP2195914		Support & Motor Assembly   (Replaces: 2195914)				$ 109.80
7	WP2315522		Retainer,thermostat   (Replaces: 2315522)				$ 11.60
9	WP681249		Screw (2)   (Replaces: 681249)			Immediately	$ 8.25
10	WP67001255		Pan, Ice   (Replaces: 67001255)				$ 213.23
11	12831101		Bracket, Tube Support   (Replaces: 67004101)				$ 13.03
12	WP67006531		Valve, Water Inlet   (Replaces: 67006531)			Immediately	$ 167.68
13	WPA3223101		Insert, Tube   (Replaces: A3223101)			Immediately	$ 8.21
14	WPB5705307		Tubing, Plastic   (Replaces: B5705307)				$ 13.05
15	WPD7813010		Harness, Ice Maker   (Replaces: W10146389)			Immediately	$ 73.97
16	WP2256087		Bracket   (Replaces: 625910)				$ 97.65
17	WP489128		Screw   (Replaces: 67006662)				$ 11.40
18	WPW10289690		Cover   (Replaces: 67004710)			Immediately	$ 8.82
20	WP98165		Screw   (Replaces: 67006287)				$ 8.57
21	12918001		Funnel, Fill Tube   (Replaces: 67005603)			Immediately	$ 13.03
NI	542639		Cement, Alumilastic (1-1/4 Oz.)		Appelez-nous	-
NI	WP542638		Grease, Silicone (1/2 Oz)   (Replaces: 542638)			Immediately	$ 12.78
NI	WP503695		Cork Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
NI	WP505587		Sealer, Mastic (1 Qt.)   (Replaces: 505587)			Immediately	$ 182.65
NI	72032		Paint, Touch-up (1/2oz.) (black)			Immediately	$ 18.69
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 12.30
NI	4396418		Complete Ice Maker   (Replaces: 67001740)				$ 340.53
NI	8003RP		Icemaker Install Kit   (Replaces: 18001005)			Immediately	$ 43.29
NI	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 40.12
NI	285006		Paint, Pressurized Spray(12 Oz.) (black)   (Replaces: 350939)				$ 59.89
NI	350942		Paint, Pressurized Spray (12 Oz) (primer, White)				$ 94.14
NI	799344		Paint, Bulk (1 Qt.) (white (uncut))				$ 237.46
NI	799340		Paint, Bulk (1 Qt.) (black (uncut)		Appelez-nous	-
NI	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
NI	479502		Tape, Vinyl(3/4 X 108``)				$ 66.77
NI	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
NI	833938		Kit, Terminal Connector				$ 8.47
NI	4396920		Cleaner, Stainless Steel		Appelez-nous	-
NI	1117510		Torx Key				$ 5.84
