1 - Backsplash Assembly


2 - Cabinet And Suspension Asm.

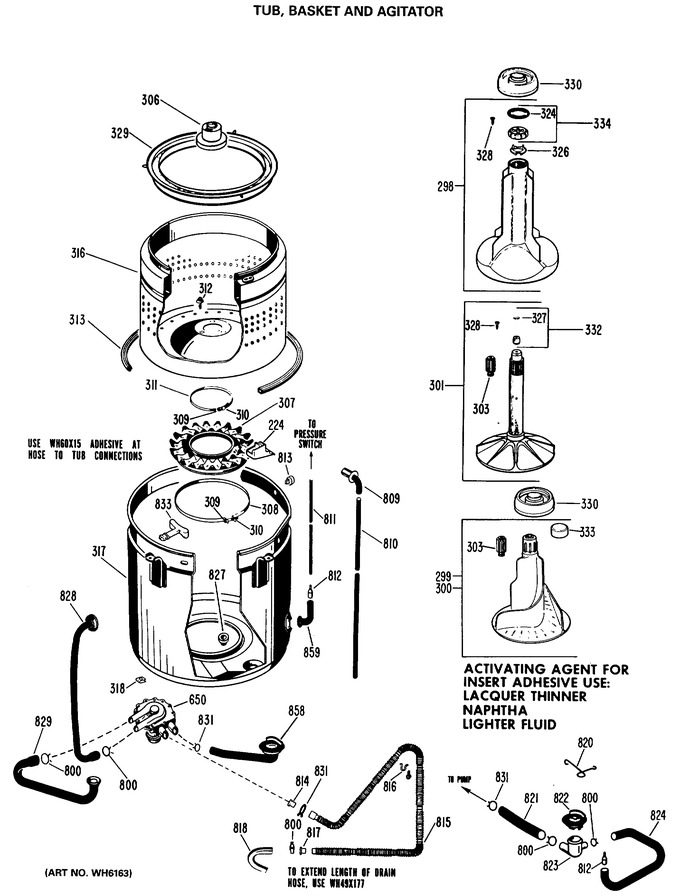

3 - Tub, Basket And Agitator


4 - Transmission-complete Bearkdown


5 - 2-speed


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
300	WH43X94		Agitator Asm Std Cp Cb		Appelez-nous	-
306	WH8X292		Boot Hub		Appelez-nous	-
307	WH8X246		Boot Mech		Appelez-nous	-
308	WH1X1580		Clamp Asm		Appelez-nous	-
309	WH2X935		Scr		Appelez-nous	-
310	WH2X936		Nut		Appelez-nous	-
311	WH1X1292		Clamp Asm				$ 6.25
313	WG04L01700		Gasket Tub   (Replaces: WH8X305)				$ 15.96
316	WH45X103		Basket Asm Std Capacity		Appelez-nous	-
317	WH45X69		Tub Asm. Std. Cap.		Appelez-nous	-
318	WL02X0071		Nut Sheet Metal		Appelez-nous	-
329	WH1X2518		Ring Filter		Appelez-nous	-
650	WH23X42		Pump Asm				$ 138.00
800	WH1X2036		Clamp Hose		Appelez-nous	-
809	WH8X253		Nozzle Overflow		Appelez-nous	-
810	WH1X1807		Tube Overflow		Appelez-nous	-
811	WH41X128		Hose Switch		Appelez-nous	-
812	WH1X1584		Hose Reducer		Appelez-nous	-
813	WH1X1980		Plug Tub		Appelez-nous	-
814	WH41X158		Adapter Hose		Appelez-nous	-
815	SSD6		Hose Drain   (Replaces: WH41X184)			Immediately	$ 26.16
816	WH16X372		Support Drain Hose		Appelez-nous	-
817	WH41X156		Adapter Hose		Appelez-nous	-
818	WH49X266		Nozzle Drain Pkg.		Appelez-nous	-
828	WH41X296		Hose Recirculation		Appelez-nous	-
829	WH41X140		Hose Recirc Inlet		Appelez-nous	-
831	WH1X2036		Clamp Hose		Appelez-nous	-
833	WH41X172		Nozzle Recirc		Appelez-nous	-
858	WH41X91		Hose Drain Inlet		Appelez-nous	-
