1 - Component Group

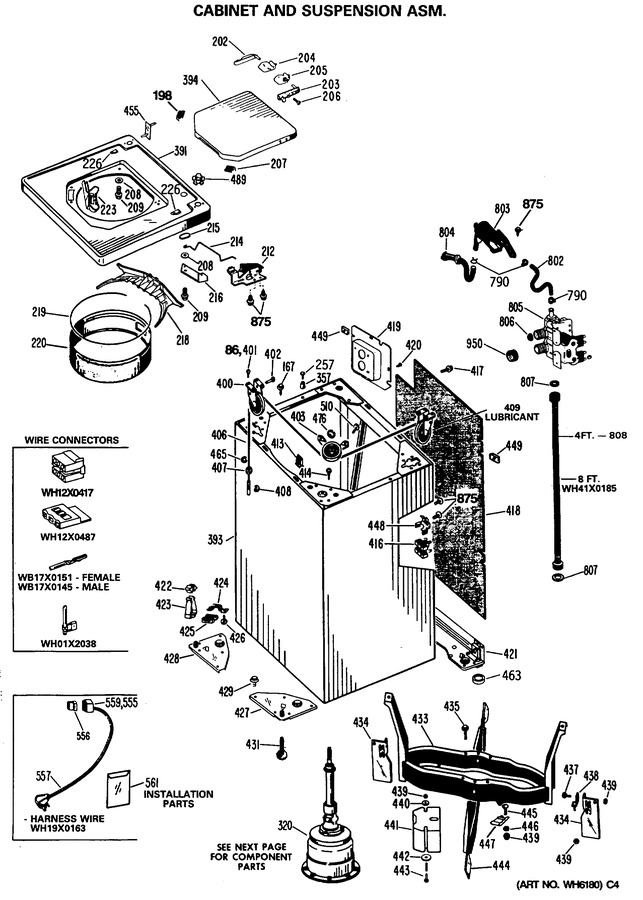

2 - Cabinet And Suspension Asm.
3 - Transmission - Complete Breakdown
4 - Tub, Basket & Agitator
5 - 2-speed
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 86 | WH2X940 | Scr 8-32 Tt Fl 1/2 S |
|
- | |||||
| 167 | WE2X186 | Screw |
|
- | |||||
| 198 | WH1X2705 | Bumper Lid |
|
- | |||||
| 202 | WH1X2085 | Hinge Pivot L.h. |
|
- | |||||
| 203 | WH1X2222 | Hinge Pivot R.h. |
|
- | |||||
| 204 | WH1X2087 | Pad-hinge L.h. |
|
- | |||||
| 205 | WH1X2086 | Pad-hinge R.h. |
|
- | |||||
| 206 | WH2X819 | Screw |
|
- | |||||
| 207 | WH1X1654 | Bumper Lid |
|
- | |||||
| 208 | WH1X2088 | Gasket |
|
- | |||||
| 209 | WH2X820 | Screw |
|
- | |||||
| 212 | WH12X494 | Switch & Bracket Asm |
|
$ 18.02 | |||||
| 214 | WH1X2090 | Actuator Switch |
|
- | |||||
| 215 | WG04L01749 | Knob Actuator (Replaces: WH1X2089) |
|
$ 68.15 | |||||
| 216 | WH16X376 | Bracket Actuator |
|
- | |||||
| 218 | WH16X413 | Retainer Cover Shield |
|
- | |||||
| 219 | WH16X370 | Strap Steel |
|
- | |||||
| 220 | WH8X312 | Shield Cover |
|
- | |||||
| 223 | WH1X2054 | Spout Bleach Wh |
|
- | |||||
| 226 | WH2X1154 | Grommet Screw |
|
- | |||||
| 257 | NOT STOCK | Screw 10-12 X 1 1/8 |
|
- | |||||
| 320 | WH38X53 | Transmission Asm |
|
- | |||||
| 357 | WH1X2187 | Stop Cover |
|
- | |||||
| 391 | WH44X1145 | Cover Asm Wh |
|
- | |||||
| 393 | WH46X172 | Apron & Brace Asm Wh |
|
- | |||||
| 394 | WH44X1147 | Lid Wh |
|
- | |||||
| 400 | WH7X40 | Pulley & Bracket Asm |
|
- | |||||
| 402 | WH1X1633 | Pin Stop |
|
- | |||||
| 403 | WH7X41 | Pulley And Brkt Asm |
|
- | |||||
| 406 | WH16X374 | Cable Std Capacity |
|
- | |||||
| 407 | WH1X2082 | Cup Washer White |
|
- | |||||
| 407 | WH1X2081 | Cup Washer Black |
|
- | |||||
| 408 | WH1X2060 | Retainer-seat |
|
- | |||||
| 413 | WH1X1923 | Clip Cover |
|
- | |||||
| 414 | WH2X715 | Scr 12-14 B Hx 3/4 S |
|
- | |||||
| 416 | WH12X235 | Relay Asm |
|
- | |||||
| 417 | WH2X694 | Scr 10-12 A Hx 1/2 S |
|
- | |||||
| 418 | WH44X1134 | Back Apron |
|
- | |||||
| 419 | WH16X483 | Bracket Valve |
|
- | |||||
| 420 | WH2X893 | Scr 10-16 Hx 3/8 S |
|
- | |||||
| 421 | WH46X188 | Base Asm Rear |
|
- | |||||
| 422 | WH1X2296 | Friction Pads |
|
- | |||||
| 423 | WH1X1951 | Yoke |
|
- | |||||
| 424 | WH1X1862 | Clamp Yoke |
|
- | |||||
| 425 | WH1X1953 | Cushion Yoke |
|
- | |||||
| 426 | WH2X882D | Screw (Replaces: WH2X882) |
|
- | |||||
| 427 | WH46X181 | Bracket Base Rh |
|
- | |||||
| 429 | WH2X795 | Screw 1/4-14 3/8 B Hxw |
|
- | |||||
| 431 | WG04A01266 | Scr Leveling (Replaces: WH2X1137) |
|
$ 4.04 | |||||
| 433 | WH17X87 | Suspension Asm |
|
- | |||||
| 434 | WH16X364 | Damping Fin |
|
- | |||||
| 435 | WH2X1121 | Scr 1/4-20 Ca |
|
- | |||||
| 437 | WZ02X0514 | Scr 1/4-20 M Hx 13/16 S |
|
- | |||||
| 438 | WH16X405 | Hanger Asm Motor |
|
- | |||||
| 439 | WH2X707 | Nut Lock |
|
- | |||||
| 440 | WH2X810 | Spacer |
|
- | |||||
| 441 | WH1X2056 | Counterweight |
|
- | |||||
| 442 | WH2X811 | Washer |
|
- | |||||
| 443 | WH2X812 | Screw |
|
- | |||||
| 444 | WH16X361 | Damping Fin & Supt 14# |
|
- | |||||
| 445 | WH2X798 | Screw |
|
- | |||||
| 446 | WE2X279 | Washer |
|
- | |||||
| 447 | WH2X801 | Retainer Bolt |
|
- | |||||
| 448 | WH1X1998 | Bracket |
|
- | |||||
| 449 | WH2X896 | Clip |
|
- | |||||
| 455 | WH1X1946 | Strap Cover |
|
- | |||||
| 463 | 34318 | Cap Level Screw (Replaces: WH1X484) |
|
Immediately | $ 5.27 | ||||
| 465 | WZ13X0024 | Retainer Seat |
|
- | |||||
| 476 | WZ13X0031 | E Ring |
|
- | |||||
| 489 | WH1X2572 | Sleeve Split |
|
- | |||||
| 510 | WE2X263 | Screw 10-16x1/2 Hxw |
|
- | |||||
| 555 | WB17X5053 | Terminal |
|
- | |||||
| 556 | WH12X497 | Housing Terminal |
|
- | |||||
| 557 | WH19X225 | Cordset Asm |
|
- | |||||
| 559 | WH12X538 | Housing Terminal |
|
- | |||||
| 561 | WH49X272 | Pk Pack Asm Installation |
|
- | |||||
| 790 | WH1X2036 | Clamp Hose |
|
- | |||||
| 802 | WH41X99 | Hose Valve |
|
- | |||||
| 803 | WH41X132 | Inlet Asm |
|
$ 112.89 | |||||
| 804 | WH41X170 | Hose Inlet |
|
- | |||||
| 805 | CW151 | Valve Water Asm (Replaces: WH13X85) |
|
Immediately | $ 43.63 | ||||
| 806 | WH1X1400 | Screen |
|
- | |||||
| 807 | WH2X42 | Hose Washer |
|
- | |||||
| 808 | WH41X58 | Inlet Hose |
|
- | |||||
| 875 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 950 | WH1X1732 | Ps Cap-hose |
|
- |
